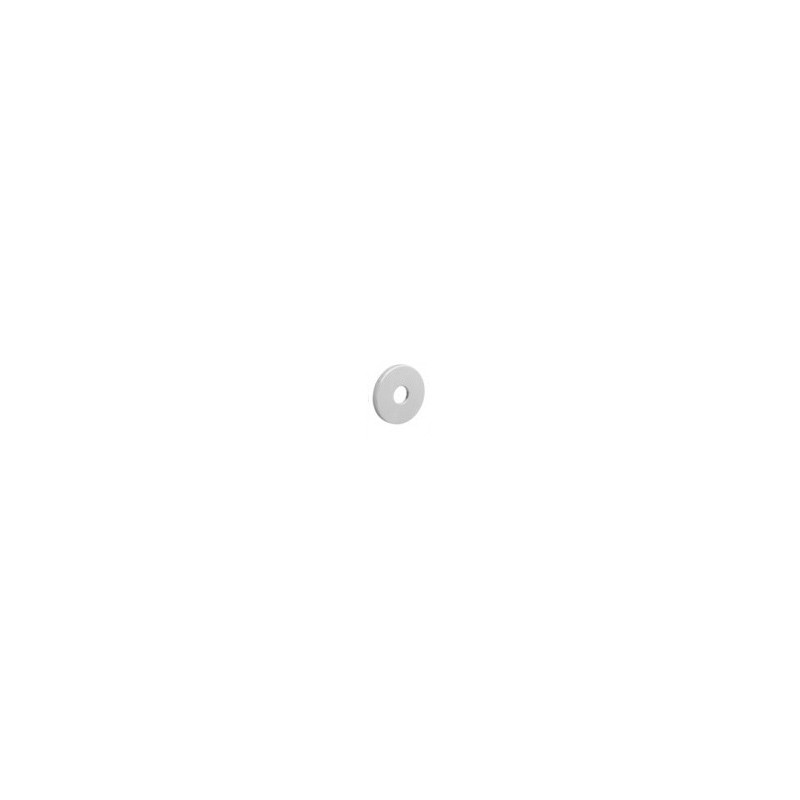

Details: Sargent NAC 8200 Electrified Mortise Lock w/ Standard Lever & Rose

• Through-bolted lever trim for increased security
• Certified to ANSI/BHMA A 156.13 Grade 1
• Field configurable to fail-safe or fail-secure

Internal End-of-Line Monitoring

• Integrated directly into the mortise lock, internal end-of-line resistors monitor the line from the access control panel to the lock. Typically, resistors are installed at the panel or above the door, creating vulnerability between the resistors and the locks. Incorporating resistors within the lock eliminates any risk of undetected tampering or damage, while also reducing installation costs, simplifying specifi cations, and offering the assurance of a factory installed and tested product.
• Select a compatible resistor configuration and add the appropriate prefix to your order string:
• — R01: Mercury and Lenel compatible 1KΩ/2KΩ resistance supervision
• — R03: Software House compatible 1KΩ/2KΩ resistance supervision
• — R04: AMAG compatible 4-state supervision

Deadbolt Privacy Function (PHR-)

• — Engaging the deadbolt disables remote access control unlocking (keypad or card reader) or scheduled unlock
• — Ideal for personal privacy areas, such as nursing rooms, on-call doctors' rooms, restrooms, and shower areas
• — To order, add the PHR- prefi × to your order string
• Note: PHR is only available on Fail Secure functions

Integrated Door Position Switch (IDP-)

• — The patented IDP option adds a magnetic door position switch in series with the internal auxiliary latch and latchbolt position switches to provide three factor monitoring.
• — This offers added assurance that the door is secure, reduces the likelihood of attack, and is aesthetically pleasing because it conceals the door position switch behind the front plate and the magnet behind the strike.

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use
