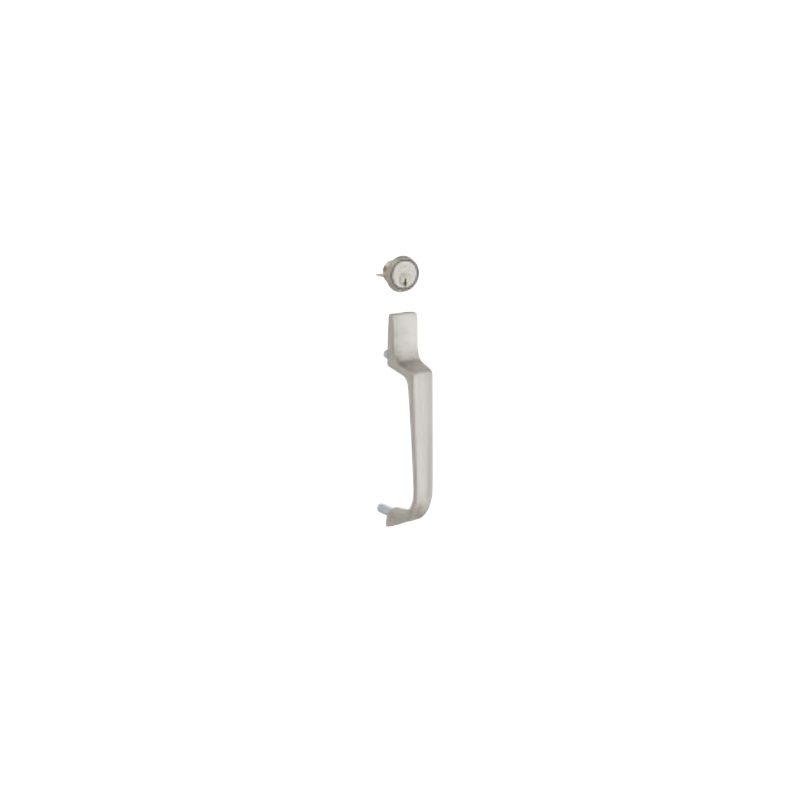

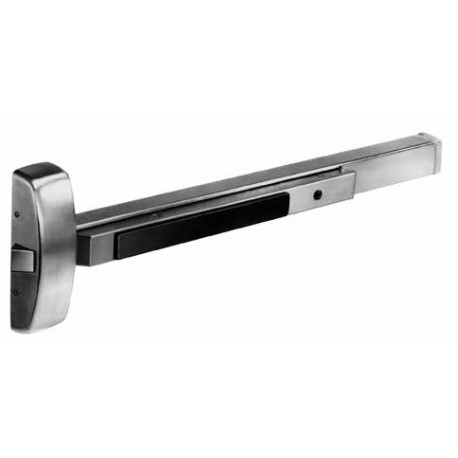

Reduced price! Sargent PTB 8800 Multi-Function Rim Exit Device

View larger

Sargent PTB 8800 Multi-Function Rim Exit Device

Model: 88

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sargent PTB 8800 Multi-Function Rim Exit Device

SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation. The 8800 series is designed for standard width stile applications on wood and metal doors. This reversible rim exit device sets the industry standard for durability and reliability.

Features

Designed for standard width stile applications on wood and metal doors
Most functions are non-handed
Single point rim latching device
Single door & double door applications with mullions
Quiet operation and solid security
Devices are ANSI A156.3 - Grade 1
UL Fire and Panic listed

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire ratings of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix
Door Widths
E Rail: 24" to 32" (61cm to 81cm) No cutting required for 32" door;
F Rail: 33" to 36" (84cm to 91cm) No cutting required for 36" door
J Rail: 37" to 42" (94cm to 107cm) No cutting required for 42" door;
G Rail: 43" to 48" (110cm to 122cm) No cutting required for 48" door
Strike: 649 Standard Black Nylon Coated
Optional Strikes: 642, 644 and 613
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
NEW!: Visual Status Lock/Unlock Indicator (49-) available on 8816 devices only
Electric Options: AL-Alarm, PL-SARGuide Photoluminescent, TL-SARGuide Illuminated Touchpad, 53-LX latchbolt Monitor, 54-Outside lever monitoring, 55-Request-to-exit Signal-Rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & Electromagnets, 58-Electric Dogging, 59-Electroguard-Self contained Delayed egress
Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Latch Bolt: Stainless steel, 3/4" (19mm) throw
Device Centerline from Finished Floor: 41" (1041 mm)
Center Case Dimensions: 8-3/8" (213mm) × 2-5/8" (67mm)
Projection: Pushbar Neutral — 3" (76 mm); Pushbar Depressed — 2-1/8" (54 mm)

Ideally Suited For

Single exterior doors
Pairs of doors with removable mullion
Schools
Hospitals
Offices

Available Model Numbers and Combinations

Model/SKU	Attributes
8810Ex PTBFLWx 32Dx RHR	Dummy Trim Used as Pull, 24" to 32", Satin Stainless Steel, Right Hand Reverse
8828Jx PTBSTSx 04x RHR	Thumb Piece Always Operable, 37" to 42", Satin Brass, Right Hand Reverse
8863Ex PTBFLWx 32Dx RHR	Key Locks/Unlocks Thumb Piece, 24" to 32", Satin Stainless Steel, Right Hand Reverse
8866Jx PTBSTSx 04x RHR	Key Outside Retracts Latchbolt; Key Inside Unlocks/Locks Thumb Piece, 37" to 42", Satin Brass, Right Hand Reverse
884Gx PTBPSBx 10BLx RHR	Key Retracts Latchbolt (Lever Rigid), 43'' to 48", Clear Coated, Right Hand Reverse
8863Gx PTBPSBx 04x LHR	Key Locks/Unlocks Thumb Piece, 43'' to 48", Satin Brass, Left Hand Reverse
884Gx PTBMALx 32Dx LHR	Key Retracts Latchbolt (Lever Rigid), 43'' to 48", A Lever, Satin Stainless Steel, Left Hand Reverse
884Ex PTBFSLx 32x RHR	Key Retracts Latchbolt (Lever Rigid), 24" to 32", Polished Stainless Steel, Right Hand Reverse
884Fx PTBFSLx WSPx LHR	Key Retracts Latchbolt (Lever Rigid), 33" to 36", White Suede Powder Coat, Left Hand Reverse
884Jx PTBPSBx 10Bx RHR	Key Retracts Latchbolt (Lever Rigid), 37" to 42", Dark Oxidized Satin Bronze Oil Rubbed, Right Hand Reverse
8866Jx PTBFSWx 03x RHR	Key Outside Retracts Latchbolt; Key Inside Unlocks/Locks Thumb Piece, 37" to 42", Bright Brass, Right Hand Reverse
8828Jx PTBFLLx 10BEx RHR	Thumb Piece Always Operable, 37" to 42", Oxidized Satin Bronze, Right Hand Reverse
8866Jx PTBFLWx 10BEx LHR	Key Outside Retracts Latchbolt; Key Inside Unlocks/Locks Thumb Piece, 37" to 42", Oxidized Satin Bronze, Left Hand Reverse
8828Ex PTBFSWx 10x LHR	Thumb Piece Always Operable, 24" to 32", Satin Bronze, Left Hand Reverse
8810Ex PTBFLWx 32Dx LHR	Dummy Trim Used as Pull, 24" to 32", Satin Stainless Steel, Left Hand Reverse
