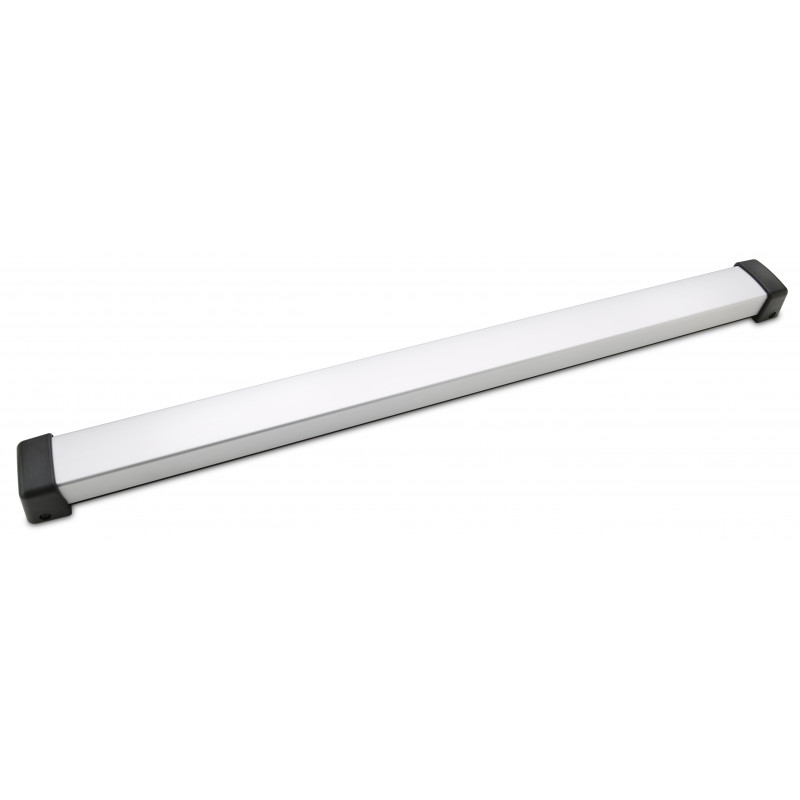

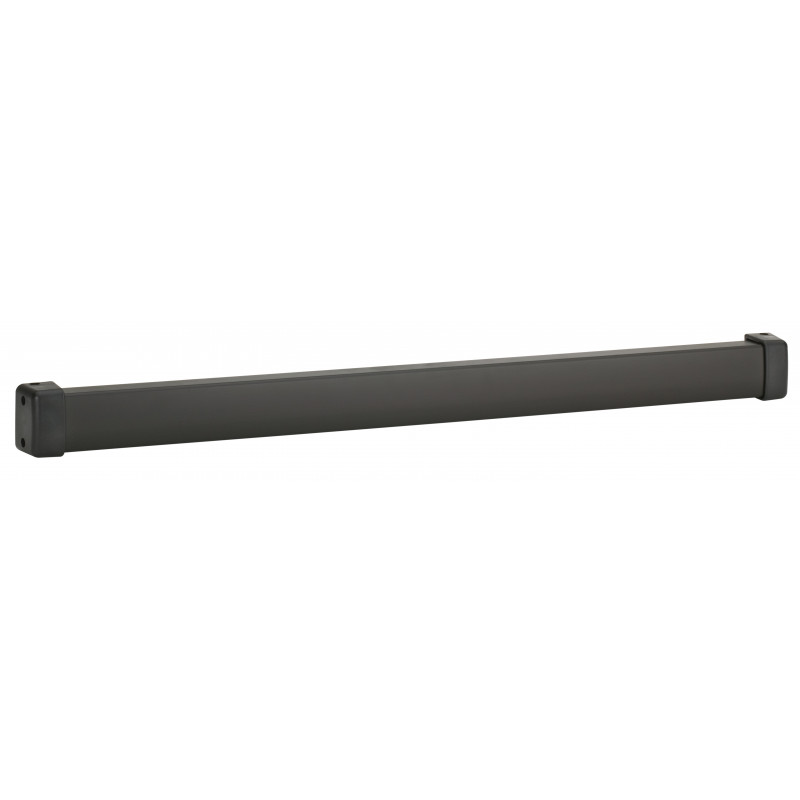

SDC MSB550 Series Mechanical Switch Bar

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$195.75

25% Off

$261.00

Details: SDC MSB550 Series Mechanical Switch Bar

Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Request-to-exit push bars provide uninhibited egress through access controlled openings equipped with magnetic locks, while eliminating the need for prior knowledge of egress operation and enabling egress with a single natural motion.

Specifications

MSB550
SDC Request-To-Exit Switch Bar, Non-Latching, 1-SPDT Contact, 5 Amp.
MSB550-2
Switch Bar with 2-SPDT contacts.

MSB550 Features

  • Only 1/8" total bar movement
  • Slim low profile heavy duty design
  • 5 Amp SPDT contact (2-SPDT contacts optional)
  • CSFM, California State Fire Marshal Listed
  • UL Listed, Access Control System Units & Burglary Resistant
  • Power transfer loop included

MSB550 Documentation

MSB550W Documentation
