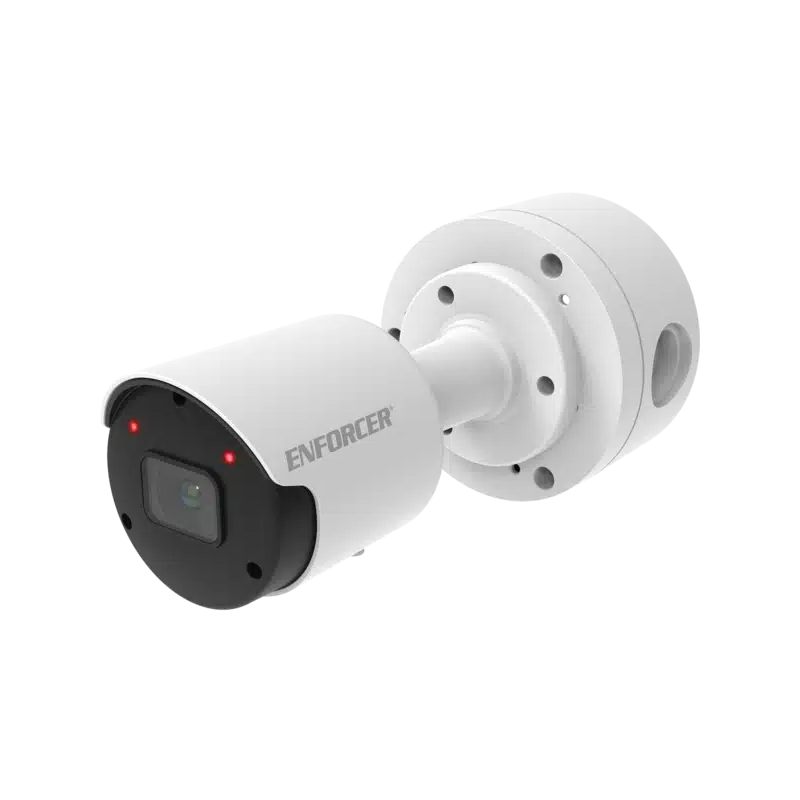

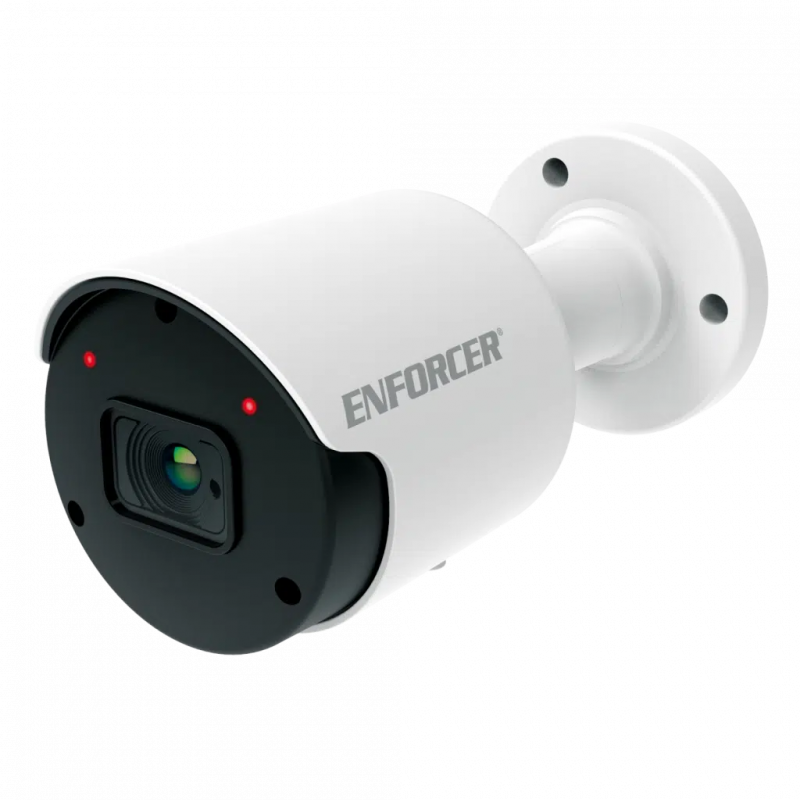

SECO-LARM EV-N1506-2W4WQ IP 5MP 2.8mm Bullet Camera

Model: EV-N1506-2W4WQ

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: SECO-LARM EV-N1506-2W4WQ IP 5MP 2.8mm Bullet Camera

The ENFORCER Fixed Bullet Camera offers high-resolution video and advanced technology in a compact and accessible package. The camera features H.265 video compression, reducing bandwidth and storage requirements without giving up video quality. With True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR) and Day/Night (ICR) capabilities, the camera provides excellent picture quality.

Latest Firmware version: V31.35.8.2.3.5_231010_2

Features

1/2.7" 5MP SmartSens CMOS Sensor
30FPS@5MP, 1620p (2880x1620)
2.8mm Lens
Triple Stream Encoding: H.265, H.264 and MJPEG
True Wide Dynamic Range (WDR)
Digital Noise Reduction (3DNR)
True Day & Night Function with ICR Module
ICR Sensitivity adjustment
Corridor mode
Operating temperature: -40 Degree -131 Degree F (-40 Degree -55 Degree C)
IP66 Weatherproof
IR Range 98" (30m)
Smart IRs adjust IR strength to conditions
MicroSD slot (512GB max)
PoE (IEEE 802.3af), 12VDC
ONVIF profiles G, S, and T conformant
Junction box is not included with the product
License plate detection
License plate recognition
Face detection
Human & vehicle detection
Perimeter intrusion detection
Line crossing detection
Stationary object detection
Cross counting
Heat map
Crowd density detection
Queue length detection

Specifications

Image sensor: 1/2.7" 5MP SmartSens CMOS sensor
Effective pixels: 2880(H)x1620(V)
Scanning system: Progressive scan
Electronic shutter speed: Auto, manual; 1/5 s to 1/20,000 s
Minimum illumination: Color: 0.1Lux at F1.2 (AGC on) 0Lux with IR on
IR Distance: Distance up to 98" (30m)
IR On/Off control: 2pcs (850nm) LEDs
IR LEDs: 2x850nm LEDs
Lens type: Fixed
Focal length: 2.8mm
Maximum aperture: F1.6
Field of view: Horizontal: 110 Degree , Vertical: 58 Degree , Diagonal:133 Degree
Compression: H.265, H.264
Streaming capability: Triple (3) streams
Resolution: 2880x1620, 2560x1440, 2304x1296, 1080p (1920x1080), 720p (1280x720)
Bit rate control: CBR/VBR
Bit rate Main stream: 256 to 8192 Kbps, Sub stream: 128 to 4096 Kbps,
Bit rate Mobile stream: 8 to 1536 Kbps
Backlight: Disable (default) BLC, HLC, True WDR
White balance: Auto
Gain control: Auto
Noise reduction: 3DNR
Smart IR: Support
Image rotation: 0", 180"
Mirror: Disable, vertical, horizontal, all
Privacy masking: Off, on (4 areas, rectangle)
Region of interest: Support
Ethernet: RJ45
Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interoperability: ONVIF profiles G, S, and T conformant
Auto register: Support
Streaming method: Multicast
Max. user access: 7
Web viewer: IE, Chrome, Firefox, Edge
On-board storage: Built in memory slot Supports up to 512GB MicroSD/SDHC/SDXC
Certfications: CE, FCC, RoHS
ONVIF: Profiles G, S, and T conformant
NDAA: Compliant
Power supply: 12VDC, or PoE (IEEE 802.3af Class 0)
Power consumption: < 6W
Operating conditions: -40 Degree -131 Degree F (-40 Degree -55 Degree C) Less Than 95% RH
Storage conditions: -40 Degree -140 Degree F (-40 Degree -60 Degree C)
IP Rating: IP66 Weatherproof
Casting: Metal
Dimensions: 2-13/16"x5-15/16" (
SECO-LARM Warranty
