Reduced price! SECO-LARM SD-7202GC Request-to-Exit Plate View larger

SECO-LARM

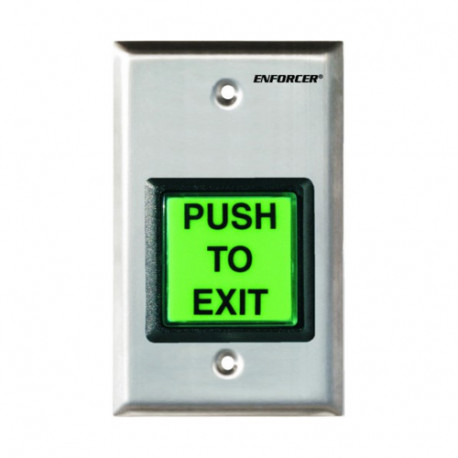

SECO-LARM SD-7202GC Request-to-Exit Plate

SD-7202GC-

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$39.52

30% Off

$56.45

Details: SECO-LARM SD-7202GC Request-to-Exit Plate

Features

  • ETL, Conforms to UL Std. 294
  • Large illuminated pushbutton with caption "PUSH TO EXIT"
  • Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
  • For SD-7202GC-PEQ:Pushbutton rated 50A, 24VAC
  • For SD-7202GC-PTQ:Pushbutton rated 3A, 24VDC
  • Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
  • LED Gives over 50,000 hours of illumination
  • 12-24 VDC: No resistors required
  • Includes stainless-steel single-gang plate
  • Timed output adjustable from 1-180 seconds
  • Buzzer output for audible status

Specifications

Operating voltage
12-24VDC
Current rating For SD-7202GC-PEQ
50A, 24VAC
Current rating For SD-7202GC-PTQ
3A, 24VAC
Faceplate
Brushed stainless
Destructive attack level
Level I
Line security
Level I
Endurance level
Level I
Standby power
Level I
Timer and buzzer output For SD-7202GC-PEQ
No
Timer and buzzer output For SD-7202GC-PTQ
Yes (1-180s)
LED status indicator
No
IP rating For For SD-7202GC-PEQ
IP65
IP rating For SD-7202GC-PTQ
N/A
Operating temperature
-40 degree-167 degree F (-40 degree-75 degree C)
Dimensions
4-1/2" x 2-3/4" x 2-3/4" (114x70x70 mm)
Weight For SD-7202GC-PEQ
3.7-oz (105g)
Weight For SD-7202GC-PTQ
4.7-oz (133g)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
SD-7202GC-PEQ Illuminated green 2" square "PUSH-TO-EXIT" button
SD-7202GC-PTQ Illuminated green 2" square momentary pushbutton
