  6. Camden Door Control CM-AF550R Double Gang Mushroom Push Button Push to Lock with LED Annunciator
Reduced price! Camden CM-AF550R Double Gang Mushroom Push Button Push to Lock with LED Annunciator View larger

Camden Door Controls

Camden Door Control CM-AF550R Double Gang Mushroom Push Button Push to Lock with LED Annunciator

CM-AF550R

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$186.55

35% Off

$287.00

Details: Camden Door Control CM-AF550R Double Gang Mushroom Push Button Push to Lock with LED Annunciator

CM-AF500 Series LED illuminated annunciators are designed to provide critical messages to building occupants.

When not illuminated, the sign (text and/or graphics) is invisible. When illuminated, the text/graphics are highly visible - even in bright daylight. Weatherproof and vandal resistant.

Features

  • Custom messages (text, graphics and colors) available upon request
  • 'Super bright' LEDs for high visability, even in daylight
  • Text/graphics are not legible when not illuminated
  • Vandal and weather resistant construction
  • Heavy guage stainless steel face plate
  • Low current draw

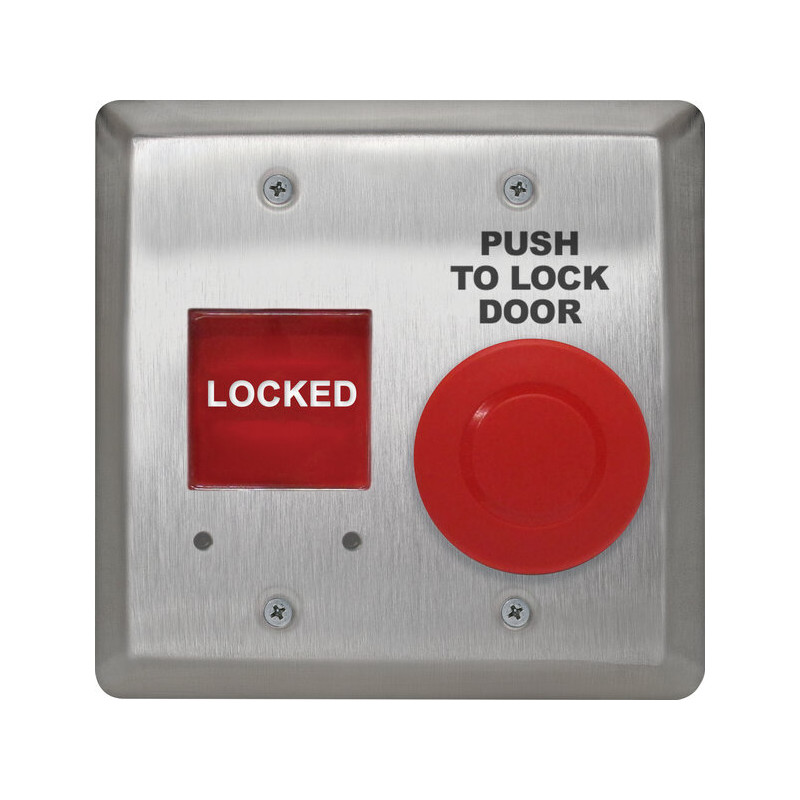

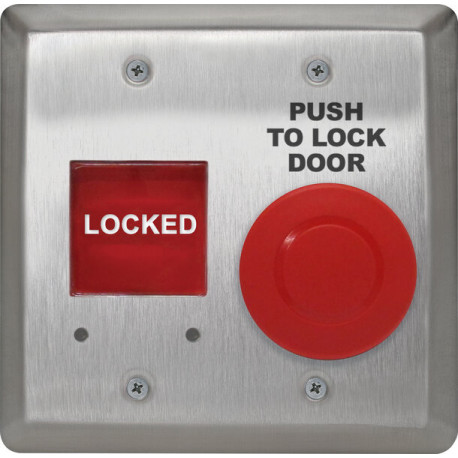

  • CM-AF550R Double gang, red mushroom 'PUSH TO LOCK' button and 'LOCKED' LED annunciator

Specifications

Mounting
Standard single gang electrical box
Voltage
12/30V AC/DC
Construction
18 gauge stainless steel faceplate
Temp Range
32 Degree F - 176 Degree F (0 Degree C - 80 Degree C)
Push Button
Momentary (Spring Action) N/O, 6A , 30 VDC
Current Draw
30-50 mA
Dimensions
4-1/2"H x 4-1/2"W x 9/16"D (114mm x 114mm x 15mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads
