  3. SECO-LARM SM-204Q Miniature Surface-Mount Magnetic Contact, 1" (25mm), Closed loop, UL Listed
SM-204Q_BR_L-500x500.jpg View larger

SECO-LARM

SECO-LARM SM-204Q Miniature Surface-Mount Magnetic Contact, 1" (25mm), Closed loop, UL Listed

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$3.25

This product must be ordered in quantity increments of 10

The minimum purchase order quantity for the product is 84

Details: SECO-LARM SM-204Q Miniature Surface-Mount Magnetic Contact, 1" (25mm), Closed loop, UL Listed

Features

  • Miniature brown "flange type" surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
  • Screw or adhesive mount
  • Mounting flange breaks off for extra miniature size
  • High-impact weatherproof ABS plastic case
  • Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
  • 15" (38cm) leads extend from center of switch
  • 1" (25mm) Gap
  • Lifetime limited warranty

Specifications

Loop Type
Closed loop
Electrical Configuration
N/O
Operation Gap
1" (25mm)
Terminals
15" (38cm) leads from center
Color
Brown and White
Material - Case
High-impact ABS plastic
Contacts
Deactivated rhodium on gold under-plating
Contact Rating
1.0A:10VDC (max), 10W (max)
Operating Temperature
-15 degree- plus 160 degree F (-25 degree-70 degree C)
Switch Cycles
50 Million (0.1mA:5VDC)

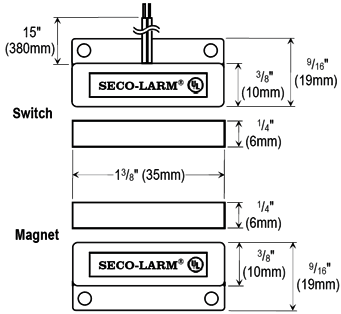

Switch Dimensions
1-3/8" x 3/8" x 1/4" (35 x 10 x 6 mm)
Magnet Dimensions
1-3/8" x 3/8" x 1/4" (35 x 10 x 6 mm)
Magnet Type
Alnico 5

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
SM-204Q/BR
SM-204Q/W
