  3. SECO-LARM SS-075C-PEQ Emergency & Push-to-Exit Button with Concealed Connections
SECO-LARM SS-075C-PEQ Emergency & Push-to-Exit Button with Concealed Connections View larger

SECO-LARM

SECO-LARM SS-075C-PEQ Emergency & Push-to-Exit Button with Concealed Connections

SS-075C-PEQ

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$3.60

The minimum purchase order quantity for the product is 75

Details: SECO-LARM SS-075C-PEQ Emergency & Push-to-Exit Button with Concealed Connections

Features

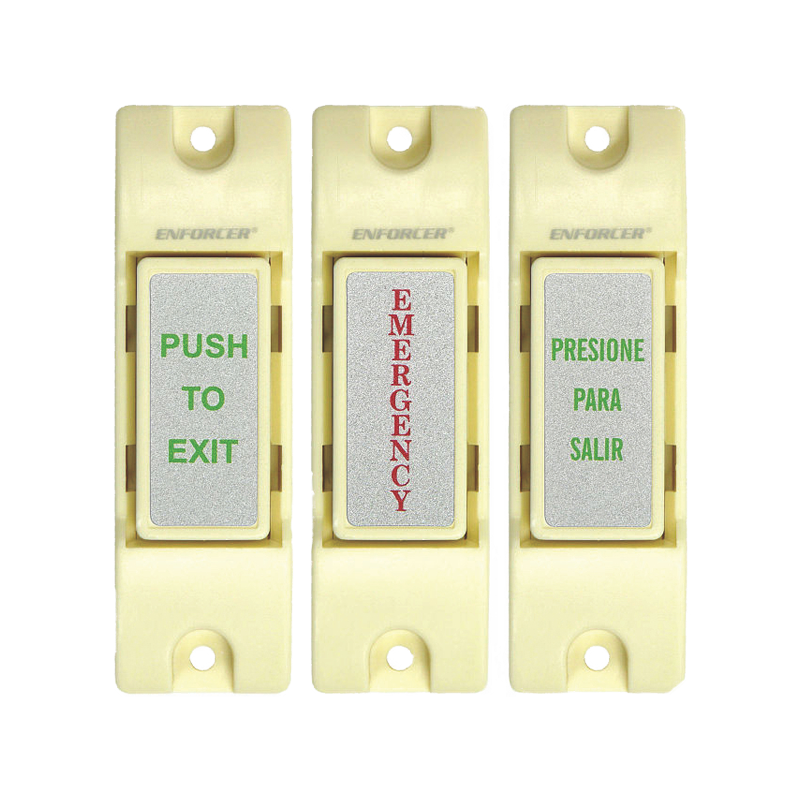

  • 3 labels included: choose between "Emergency," "Push to Exit," and "Presione Para Salir."
  • N.O. or N.C. (selectable) momentary contact.
  • Contact rated 1.0A@12VDC.
  • Screw terminals.
  • Off-white.
  • Dimensions: 3"x15/16"x5/8" (76mm × 23mm × 15mm).

Specifications

Contact
NO or NC (selectable) momentary contact
Switch rating
1.0A@12VDC
Operating voltage
12-24 VDC
Terminal type
Screw Terminal
Color
Off-white
Dimensions
3"x15/16"x5/8" (76x23x15 mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
