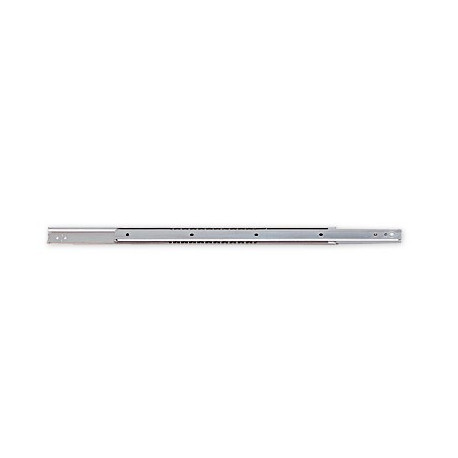

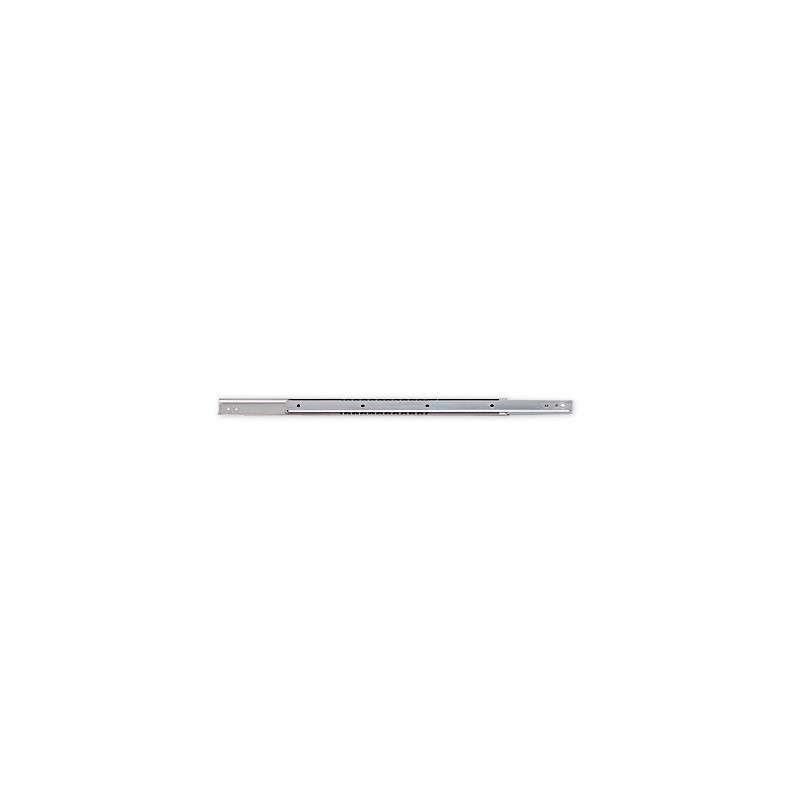

Sugatsune ESR-13 3/4 Extension Slide View larger

Sugatsune

Sugatsune ESR-13 S/S Drawer Slide

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$36.30

Details: Sugatsune ESR-13 S/S Drawer Slide

The Sugatsune ESR-13¾ Extension Slide is perfect for high end residential, commercial, and industrial applications. Full extension and ¾ extension slides are also available for purchase.

Stainless Steel 3/4 Extension Ball Bearing Drawer Slide, SSR-13 Replacement, Load Rating: 55 ~ 107 lbs, Two Member, 3/4 Extension, Positive Stop, Positive Catch, Non-Handed, Recommended Hardware: M4 or #8 Pan Head Screws, Screws Not Supplied 3/4 Extension Positive Stop.

Specifications

Material
304 Stainless Steel

Product Downloads

About Sugatsune

Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.

Item No.Slide LengthTravel LengthABCDEFG# of HolesLoad Rating (kg/pair)WeightBox (pcs)
Inner RailOuter Rail
ESR-13-12304.8 (12")228.6 (9")-177.8258.0-149.2260.32734749 (107 lbs)31020
ESR-13-14355.6 (14")279.4 (11")-228.6308.8-200311.1323.84747 (103 lbs)36020
ESR-13-16406.4 (16")304.8 (12")-254359.6-250.8361.9374.64743 (94 lbs)41020
ESR-13-18457.2 (18")330.2 (13")203.2279.4410.4212.7301.6412.7425.45841 (90 lbs)46020
ESR-13-20508 (20")381 (15")228.6330.2461.2238.1352.4463.5476.25837 (81 lbs)52020
ESR-13-22558.8 (22")406.4 (16")254355.6512.0263.5403.2514.35275834 (74 lbs)57020
ESR-13-24609.6 (24")431.8 (17")254381562.8288.9454565.1577.85827 (59 lbs)65020
ESR-13-26660.4 (26")482.6 (19")254431.8613.6314.3504.8615.9628.65827 (59 lbs)65020
ESR-13-28711.2 (28")508 (20")279.4457.2664.4339.7555.6666.7679.45825 (55 lbs)70020
