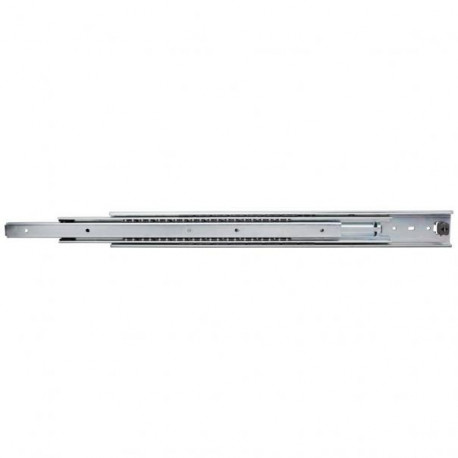

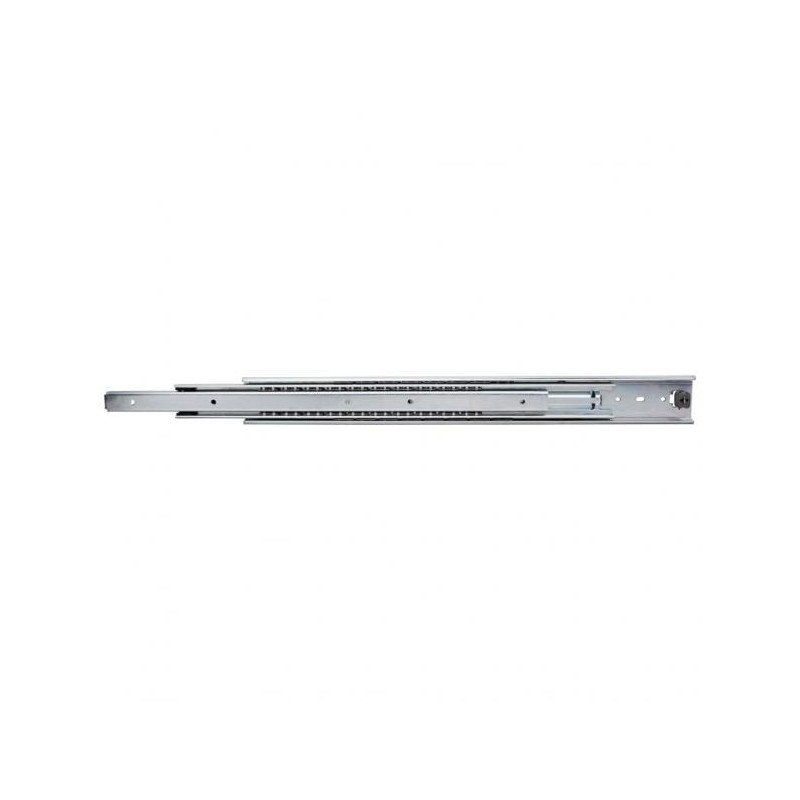

Hardware Resources 209FU Extra Heavy Duty Side Mount Ball Bearing Slides

209FU

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$54.50

Details: Hardware Resources 209FU Extra Heavy Duty Side Mount Ball Bearing Slides

Features

  • 3/4" side spacing
  • Lubricated steel ball bearings
  • Non-handed trigger disconnect release
  • 54 mm profile height
  • 2.2 mm × 2.0 mm × 2.0 mm cold rolled steel material
  • Clear zinc electroplated finish
  • 6.3 mm euro screw or 8 × 7/16" truss head screw is recommended
  • 1" overtravel slide
  • Grade 1 ANSI/BHMA certified with 225 lb. load rating
  • Synthetic rubber hold-in detent prevents bounce back and roll out
  • Lubricated steel ball bearings

Specifications

Minimum Cabinet Depth
16
Type
Frameless
Adjustable
Yes
Load Rating
225 lb
Extension
1" Overtravel
Brand
Hardware Resources
Height
54 mm
Mount Type
Side Mount
Warranty Period
Limited Lifetime

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
