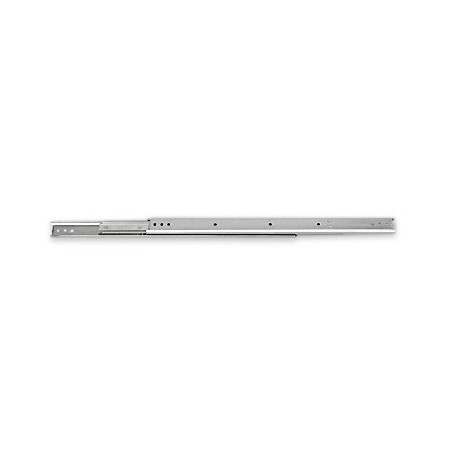

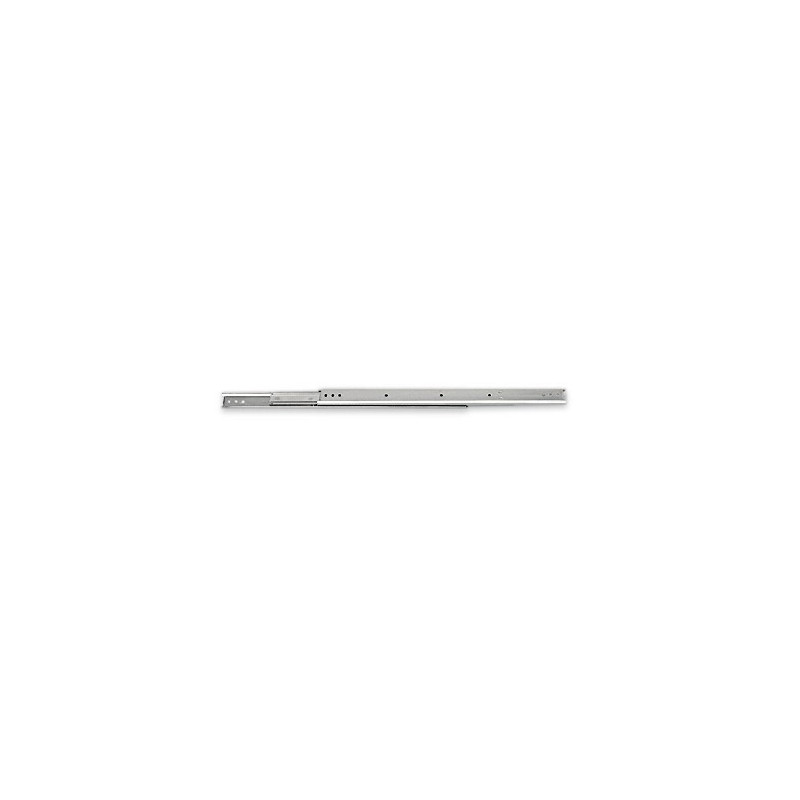

Sugatsune ESR-6 S/S Drawer Slide
Warning: Last items in stock!
Availability date:
Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
The Sugatsune ESR-6 Full Extension Slide is perfect for high end residential, commercial, and industrial applications. Full extension and ¾ extension slides are also available for purchase.
Stainless Steel Full Extension Ball Bearing Drawer Slide, SSR-6 Replacement, Load Rating: 99 ~ 132 lbs, Three Member, Full Extension, Positive stop, Non handed, Recommended Hardware: M4 or #8 Pan Head Screws, Screws Not Supplied.
Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.
Item No. | Slide Length | Travel Length | A | B | C | D | # of Holes | Load Rating (kg/pair) | Weight (g) | Box (pcs) |
---|---|---|---|---|---|---|---|---|---|---|
Outer Rail | ||||||||||
ESR-6-12 | 304.8(12") | 326(12-27/32") | - | 149.2 | 260.3 | 273 | 7 | 60 (132 lbs) | 310 | 16 |
ESR-6-14 | 355.6(14") | 377(14-27/32") | 200 | 311.11 | 323.8 | 59 (130 lbs) | 710 | |||
ESR-6-16 | 406.4(16") | 428(16-27/32") | 250.8 | 361.9 | 374.6 | 57 (126 lbs) | 810 | |||
ESR-6-18 | 457.2 (18") | 479 (18-55/64") | 212.7 | 301.6 | 412.7 | 425.4 | 8 | 56 (123 lbs) | 920 | |
ESR-6-20 | 508 (20") | 529(20-53/64") | 238.1 | 352.4 | 463.5 | 476.2 | 523 (117 lbs) | 980 | ||
ESR-6-22 | 558.8 (22") | 580(22-27/32") | 263.5 | 403.2 | 514.3 | 527 | 51 (112 lbs) | 1120 | ||
ESR-6-24 | 609.6(24") | 631(24-27/32") | 288.9 | 454 | 565.1 | 577.8 | 49 (108 lbs) | 1230 | ||
ESR-6-26 | 660.4(26") | 682(26-26/32") | 314.3 | 504.8 | 615.9 | 628.6 | 47 (103 lbs) | 1330 | ||
ESR-6-28 | 711.2(28") | 732(28-13/16") | 339.7 | 555.6 | 666.7 | 679.4 | 45 (99 lbs) | 1440 |
Model/SKU | Attributes |
---|---|
ESR-6-12 | |
ESR-6-14 | |
ESR-6-16 | |
ESR-6-18 | |
ESR-6-20 | |
ESR-6-22 | |
ESR-6-24 | |
ESR-6-26 | |
ESR-6-28 |
