Sugatsune FAD-5 Lateral Opening Cabinet Door System

Model: FAD-5

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune FAD-5 Lateral Opening Cabinet Door System

Features

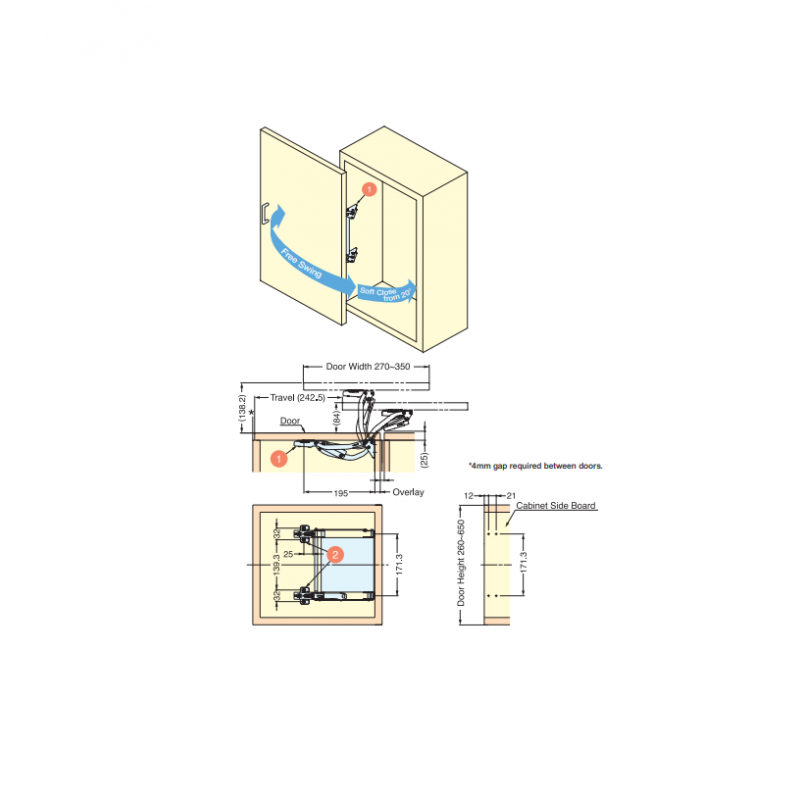

Lateral Swing Mechanism Allows doors to swing out laterally in a small radius, ideal for tight front space application
Free Swing & Soft-close
3-Way Adjustable
Various Applications Can be used in single or double door configuration.Ideal for cabinets in kitchen, bathroom, laundry room etc.

Specifications

Material: Aluminum
Weight of Item (g): 770
Length or Depth of Item when closed (in): 2.1875
Height of Item (in): 8.5625
Width of Item (in): 8.75
Max. Door Height (in): 25.5625
Min. Door Height (in): 10.25
Max. Door Width (in): 13.75
Min. Door Width (in): 10.625
Max. Door Thickness (in): 0.8125
Min. Door Thickness (in): 0.5625
Max. Door Weight (lbs): 11
Soft Closing: Y
Are Fasteners Included: Y
Are Fasteners Required: Y
Fasteners Type: Self tapping screw
Is RoHS Compliant: RoHS 2

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
