Sugatsune HDS-20 Soft-Down Stay
Warning: Last items in stock!
Availability date:
Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

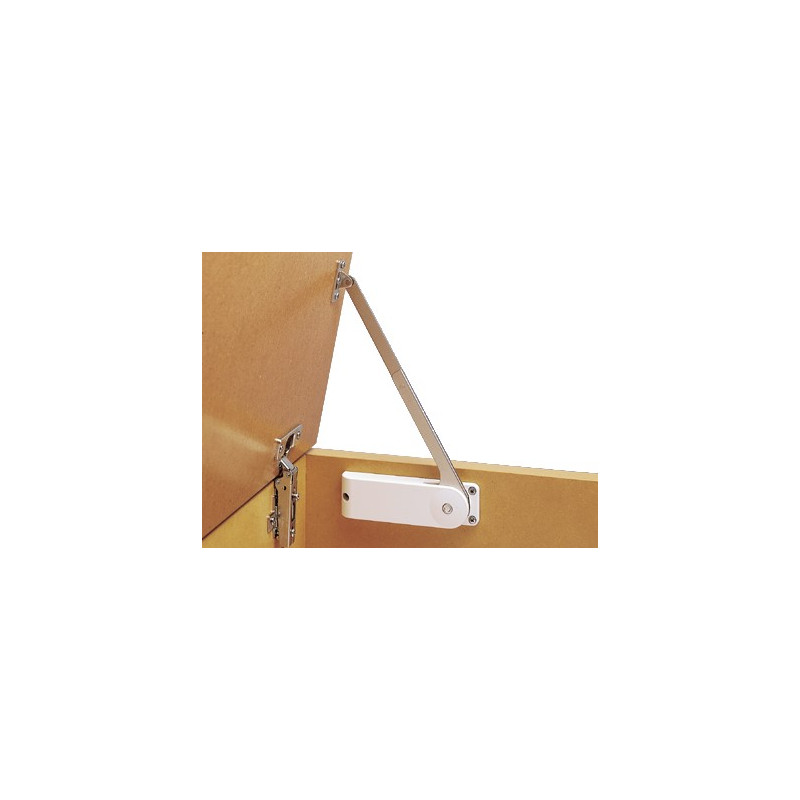

Nothing's worse than when your cabinet or trunk lid slams shut, damaging the hardware or crushing your fingers in the process. The Sugatsune HDS-20 Heavy Duty Soft-Down Stay uses patented Lapcon technology to allow for safe and smooth operation. Heavy duty lid stays, spring loaded stays and multi-angle lid stays are also available.
Lapcon Heavy Duty Soft Down Lid Stay, For top-opening lids (stereo covers, toy boxes, vanities); holds door open at 70 degrees. Available as Black (BLK) or White (WHT). Handed Left (L) or Right (R).
Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.
Item No. | Type | Torque Moment (kg cm/pair) | Weight (g) | Box (qty) | |
---|---|---|---|---|---|
Left | Right | ||||
HDS-20KL | HDS-20KR | Light - Duty | 140 -200 | 280 | 40 |
HDS-20ML | HDS-20MR | Medium-Duty | 200-250 | 290 | 40 |
HDS-20HL | HDS-20HR | Heavy Duty | 250-300 | 300 | 40 |
Hinge Type | A | B | C | D | C1 | D2 | E | F |
---|---|---|---|---|---|---|---|---|
Concealed Hinge | 199 | 45 | 42-S | 168-S | - | - | 145 | 283.5 |
Piano/ Butt Hinge | 199 | 45 | - | - | 41 | 167 | 142.5 | 281 |
Hinge Type | A | B | C | D | E | F |
---|---|---|---|---|---|---|
Concealed Hinge | 203 | 45 | 46 | 172 | 151 | 286 |
Piano/Butt Hinge | 190 | 45 | 33 | 159 | 138 | 273 |
Model/SKU | Attributes |
---|---|
HDS-20KL/BLK | Black |
HDS-20KL/WHT | White, |
HDS-20KR/BLK | Black |
HDS-20KR/WHT | White, |
HDS-20ML/BLK | Black |
HDS-20ML/WHT | White, |
HDS-20MR/BLK | Black |
HDS-20MR/WHT | White, |
HDS-20HL/BLK | Black |
HDS-20HL/WHT | White, |
HDS-20HR/BLK | Black |
HDS-20HR/WHT | White, |
