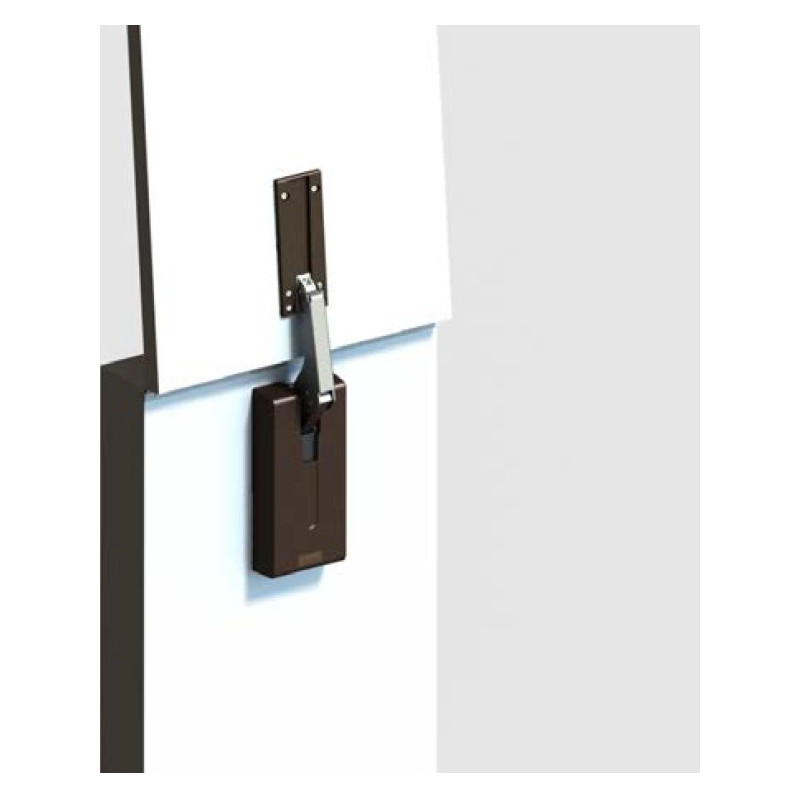

Sugatsune LADH Heavy Duty Lift Assist Damper

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$330.00

Details: Sugatsune LADH Heavy Duty Lift Assist Damper

Features

  • Lift-assist function helps children, elderly, and disabled to open and close
  • Soft-close damper eliminates panel from slamming shut on hands and fingers
  • Damper function engages at low angles (does not need to be fully opened to soft-close)
  • Stopper holds panel at 95 degree to prevent over-rotation
  • Surface-mounting allows retrofit into existing countertop passages

Specifications

Material
Steel (SPCC)
Weight of Item (g)
2000
Length or Depth of Item when closed (in)
9.9375
Height of Item (in)
10.3125
Width of Item (in)
4.625
Max. Panel Thickness (in)
2
Min. Panel Thickness (in)
1.1875
Max. Torque (lbs-in/ea)
309
Min. Torque (lbs-in/ea)
221
Max. Opening Angle (degree)
95
Are Fasteners Included
Y
Are Fasteners Required
Y
Fasteners Size
5.1 X 25
Fasteners Type
Screw
Is RoHS Compliant
RoHS 2

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
LADH-35
LADH-50
