Sugatsune MC-FS34 Snap-In Type Magnetic Catch

View larger

Sugatsune MC-FS34 Magnetic Catch (Snap-In Type)

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune MC-FS34 Magnetic Catch (Snap-In Type)

Features

Snap-in magnetic catch for sheet metal applications.
Compact size

Specifications

ROHS Status: ROHS 3

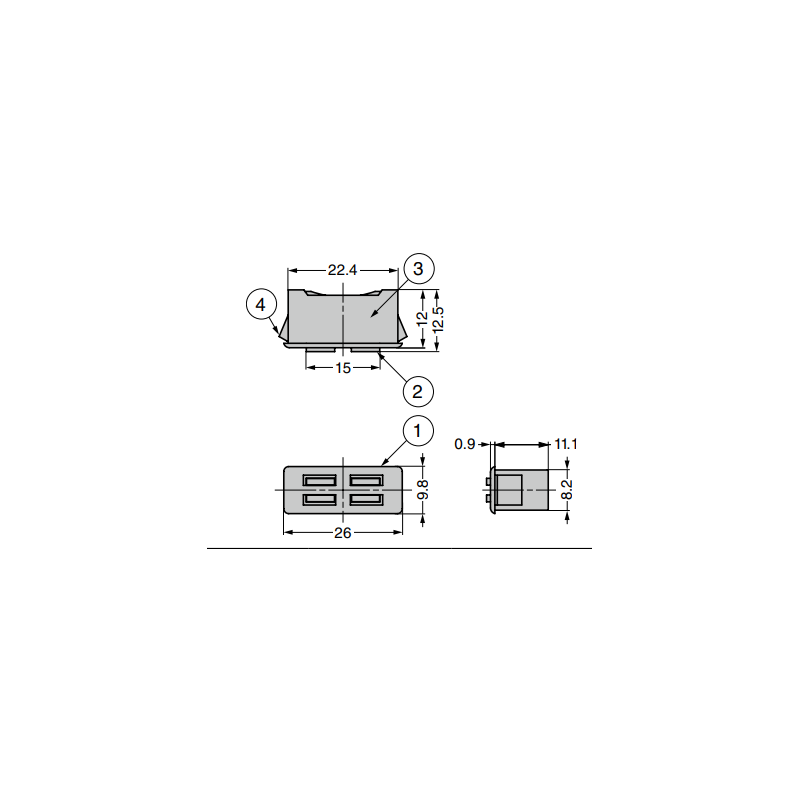

Dimension: 26 x 9.8 x 12.5 mm
Material: Polyamide (Body), Steel (Yoke), Ferrite (Magnet), Polyacetal (Spring)
Finish: Grey, Black, White (Body), Yellow Zinc Chromate (Yoke), Blue, Green, White (Spring)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Catalog

Sugatsune Warranty
