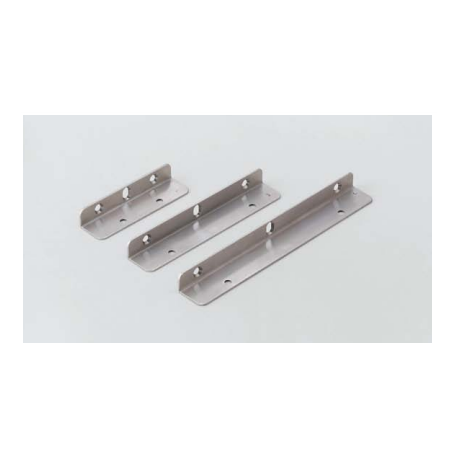

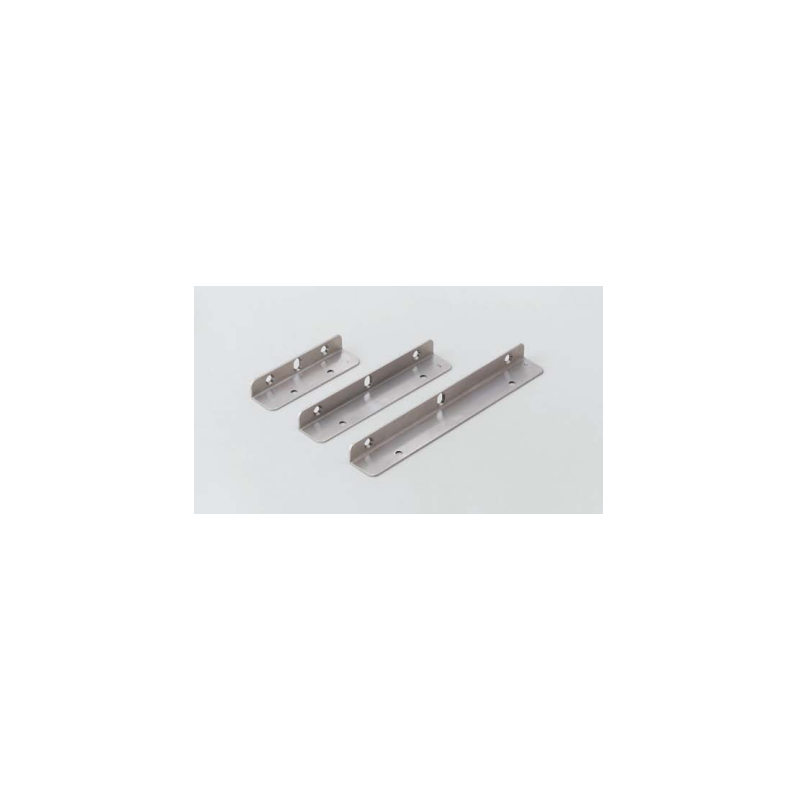

Sugatsune SSA Angle Bracket 304SS, Finish-Satin

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$12.60

Details: Sugatsune SSA Angle Bracket 304SS, Finish-Satin

Features

  • L-shaped bracket with wide and stable support part.
  • Shelf board hides the installation part for clean appearance.

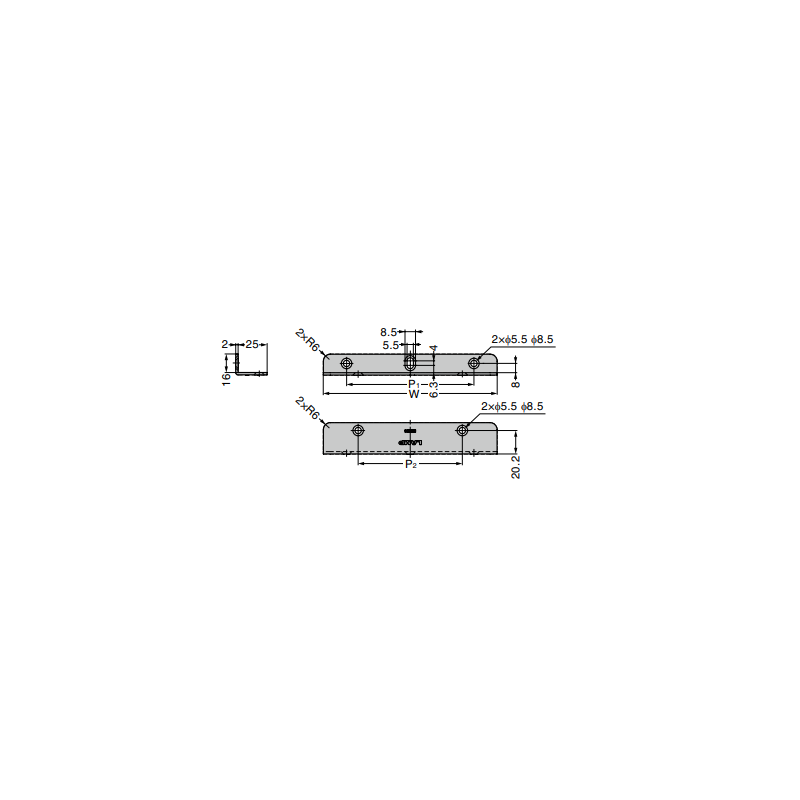

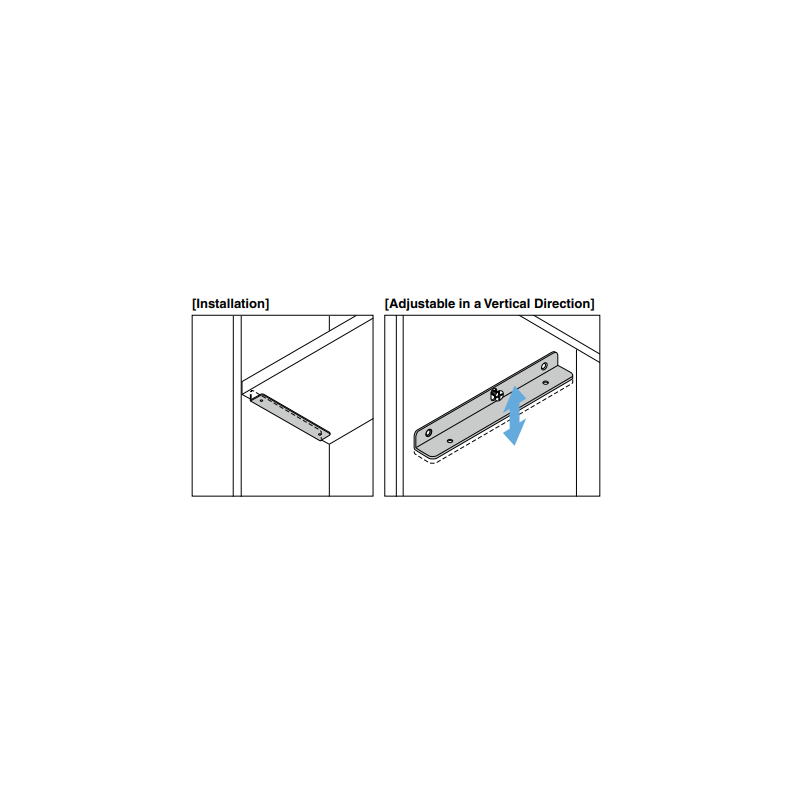

  • An oval hole at the middle allows to adjust the position vertically in 2 mm.

Remarks

  • Please install to side board.If installed to back board, it may fall off due to the inability to withstand the load.
  • Please firmly install in a place with adequate strength.
  • When installing to a plasterboard, please screw in the core material.

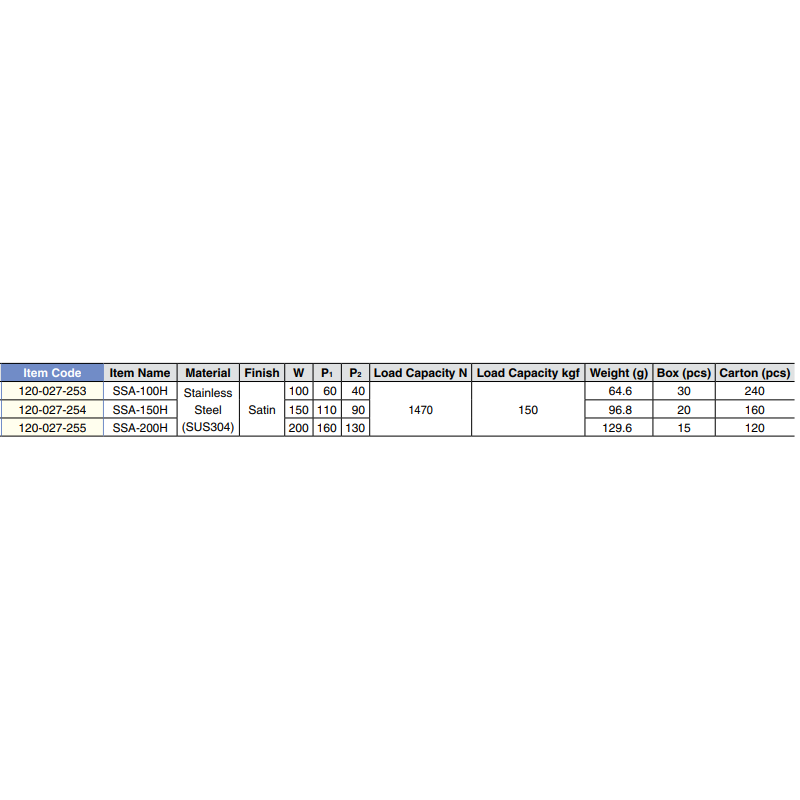

  • Load capacity of below table is the value when using 2 angle brackets for 1 shelf board.

Parts Included

  • Countersunk head tapping screw 3.5×16 (SUS)
  • Countersunk head tapping screw 3.5×12 (SUS)

Available Model Numbers and Combinations

Model/SKUAttributes
SSA-100H
SSA-150H
SSA-200H
