> >>>>TownSteel CS Grade 2 Conical Rose Cylindrical Lock

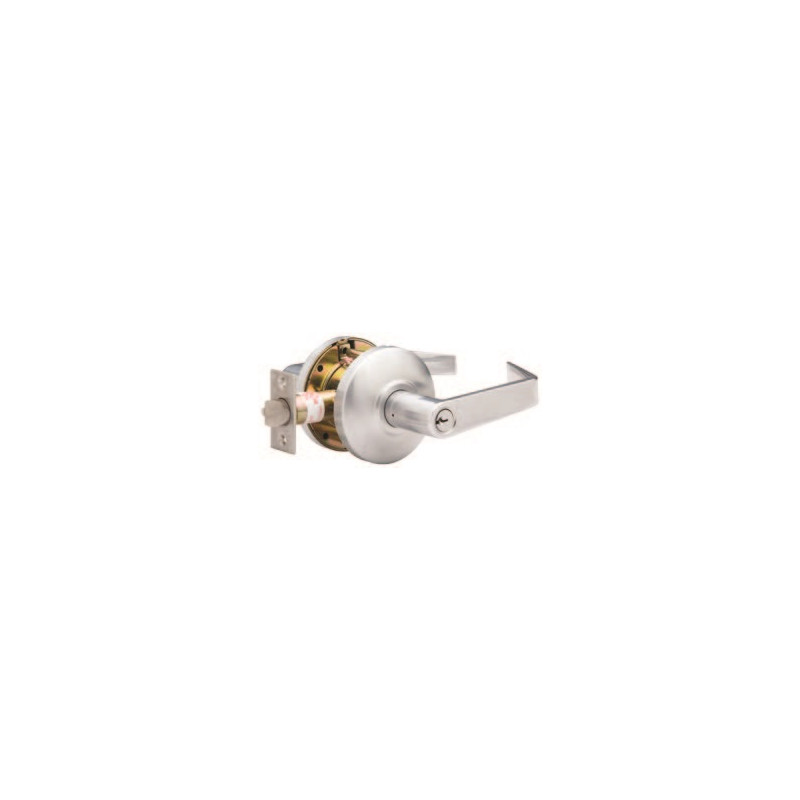

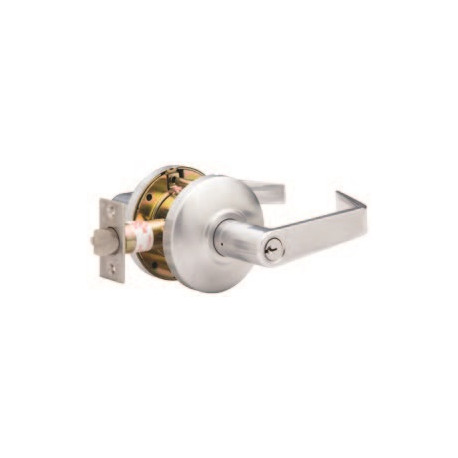

Reduced price! TownSteel CSRC Series, Clutched Conical Rose - Cylindrical Lockset with Standard 6-Pin Cylinder View larger

TownSteel

TownSteel CS Grade 2 Conical Rose Cylindrical Lock

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$66.00

40% Off

$110.00

Details: TownSteel CS Grade 2 Conical Rose Cylindrical Lock

The CSRC Series Cylindrical lockset is designed for Multi- Family, Senior Living, Dorms and Light commercial Applications. Combined with the physical security of an ANSI Grade 2 mechanical locking mechanism, CSRC provide the security and functionality needed to different opening requirements.

Features

  • Offers conical rose featuring clutched lever trim
  • Fast and easy installation
  • Concealed mounting screws
  • Removable thru-bolt and adjustable mounting plate

Specifications

Handing
Non-Hand
Clutch Feature
Standard
Door Thickness
1-3/8"-2" (35mm-51mm)
Backset
2-3/4" standard. 2-3/8", 3-3/4" and 5" optional
Strike
ASA Strike standard, T-Strike Optional
Latch Bolt
Stainless steel with 1/2" (12.7mm) throw
Faceplate
1-1/8" X 2-1/4" (28.4mm X 57mm) , square corner
Standard Cylinder
6-pin solid brass cylinder, Schlage "C" keyway
SFIC
Small Format IC Core available, 6 or 7-pin
ANSI/BHMA
Meets or eXceeds all Grade 2 requirements of A156.2-2003
UL
Listed 3-hour fire rating
BAA
Meets guidelines of the Buy American Act
ADA
Meets requirements of the Americans with Disabilities Act

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
CSRC-SD-622S Single Dummy, Flat Black,
CSRC-SD-622Q Single Dummy, Flat Black,
CSRC-SD-622G Single Dummy, Flat Black,
CSRC-SD-626S Satin Chrome, Single Dummy,
CSRC-SD-626Q Satin Chrome, Single Dummy,
CSRC-SD-626G Satin Chrome, Single Dummy,
CSRC-75-622S Passage, Flat Black,
CSRC-75-622Q Passage, Flat Black,
CSRC-75-622G Passage, Flat Black,
CSRC-75-626S Satin Chrome, Passage,
CSRC-75-626Q Satin Chrome, Passage,
CSRC-75-626G Satin Chrome, Passage,
CSRC-76-622S Privacy, Flat Black,
CSRC-76-622Q Privacy, Flat Black,
CSRC-76-622G Privacy, Flat Black,

View All Model Numbers and Options
