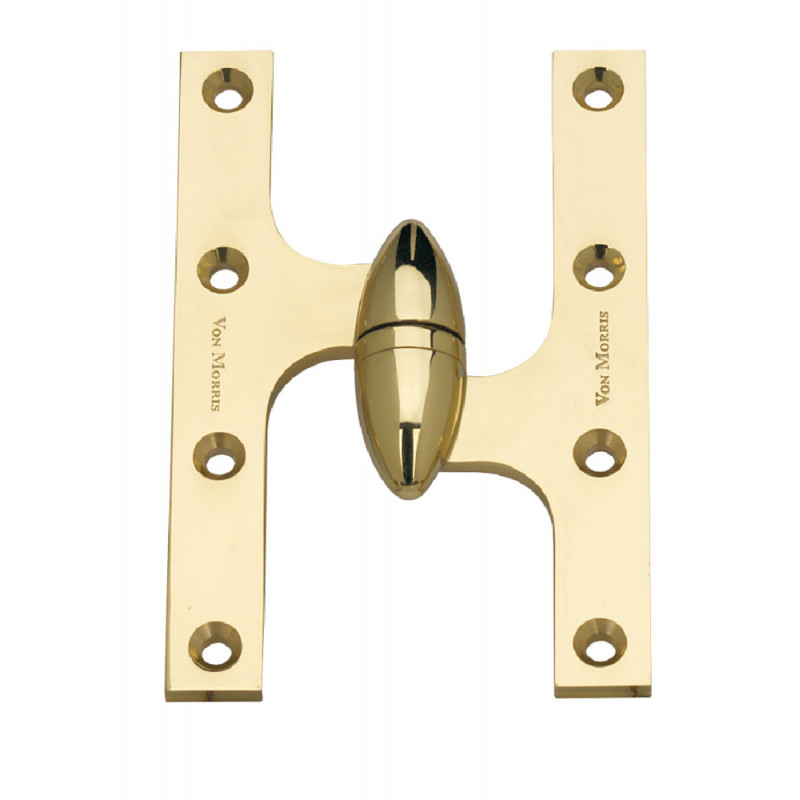

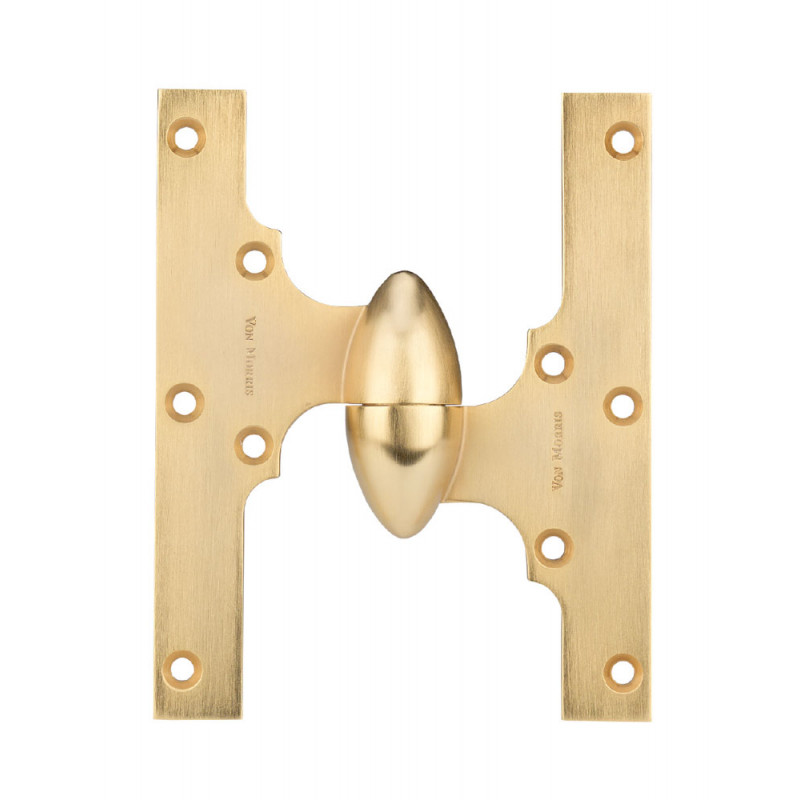

Von Morris 19 Olive Knuckle Ball Bearing, Heavy Weight Hinge

Model: 19

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Von Morris 19 Olive Knuckle Ball Bearing, Heavy Weight Hinge

Description

Equipped with one precision machined, anti-friction bearing assembly per hinge.
Ball bearings are machined from 300 series Stainless Steel and employ Stainless Steel balls.
All pins are precision machined from 300 series Stainless Steel.
All olive knuckle hinges are handed. Be sure to specify hand of hinge when ordering.
Minimum door thickness 2.25".

Features

Solid Forged Brass
Concealed Ball Bearing
Heavy Weight
Hand Polished

Hinge Body

Hinge body is manufactured of solid brass.

Ball Bearings

Each hinge is equipped with one precision machined anti-friction ball bearing assembly. The two races are machined from 300 series Stainless Steel. The balls are Stainless Steel as well. The bearing shell is machined from brass of the same alloy as the hinge body to ensure an accurate color match. The construction results in an extremely durable, long life ball bearing which is able to withstand years of hard use and corrosive environments. This bearing greatly increases both the lateral and vertical load bearing capability of the hinge and therefore increases hinge life.

Pins

Pins are machined from 300 Stainless Steel for high durability and resistance to rust. They are permanently installed in one half of the hinge. The exposed end is rounded to facilitate re-assembly.

Fasteners

All hinges are provided with type "A" tapping screws. These are solid brass, flat head, counter sunk, undercut phillips head screws. Screws are bagged eight per bag.

Number of Hinges

For doors up to 89 inches, use three hinges. For each additional 30 inches or fraction thereof, use one additional hinge.

Packing

Two hinges per box with screws. Each hinge is poly bagged to prevent scratching. Hinges are packed 15 boxes per master carton.

Handing & Specifying

These hinges are handed. Please be sure to specify hand of hinges when ordering.

Application

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
