Reduced price! Yale 4700LN Series Grade 1 Cylindrical Lock

View larger

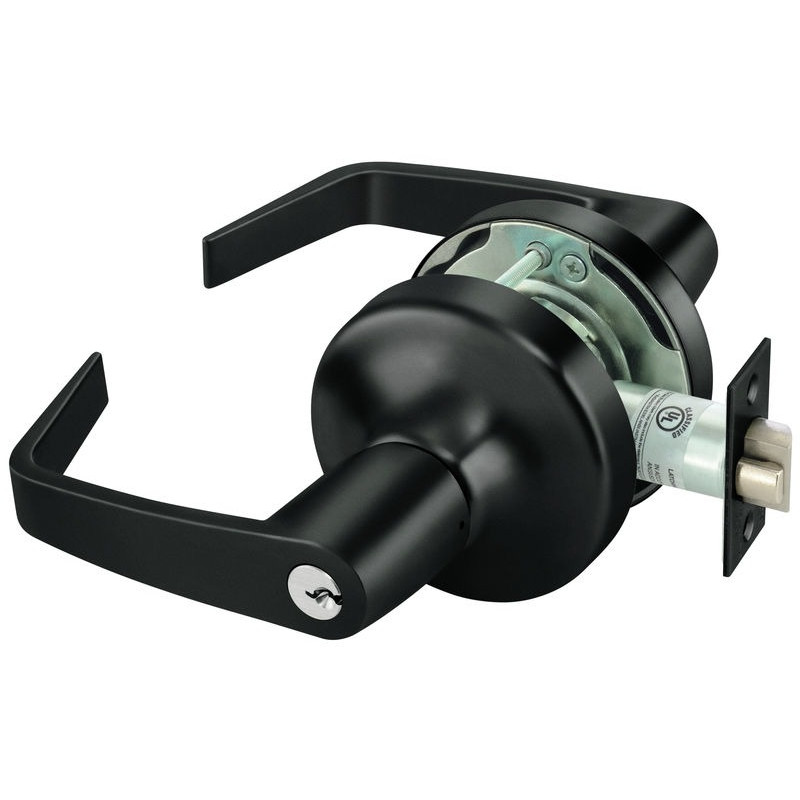

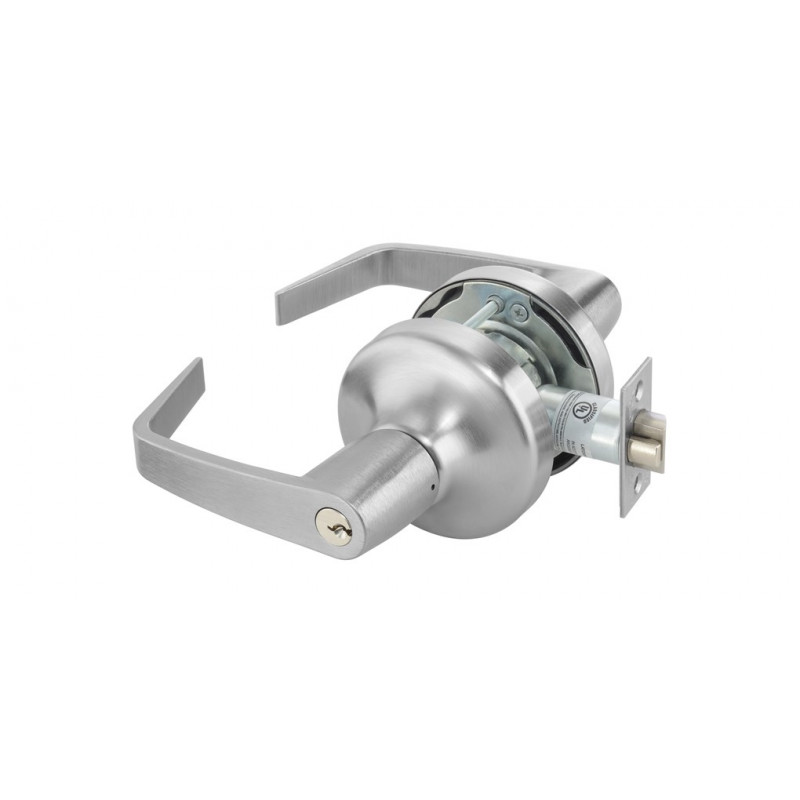

ACCENTRA (formerly Yale) 4700LN Series Grade 1 Cylindrical Lever Lock

Model:

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$170.86

40% Off

$284.76

Quantity

Lever Design

Choose a Finish

Function

Handing

Latch

Strike

Strike Box

Cylinder Type

Door Thickness

Keying

MicroShield-Antimicrobial Coating

Knurling/Abrasive Coating

Details: ACCENTRA (formerly Yale) 4700LN Series Grade 1 Cylindrical Lever Lock

ASSA ABLOY ACCENTRA 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Features

Available in 23 functions, 5 lever designs, and 9 finishes
Free wheeling lever mechanism prevents vandalism
Certified for strength and durability
Available with MicroShield antimicrobial coating
ADA compliant lever for ease of accessibility
UL/cUL fire rated up to 3-hours
Designed to withstand everyday use and resist damage and vandalism
Windstorm Certified (refer to local codes)
Certifications - ANSI/SDI 250.13 Certified, ASTM E330 Certified, Florida Building Code Approved FL# 3063, Americans with Disabilities Act (ADA) Compliant, UL-cUL Fire-Rated Up to 3 Hours, ASTM E1996 Certified, ASTM E1886 Certified, NFPA 80 Compliant, TAS 201 Certified, TAS 202 Certified, TAS 203 Certified, ICC A117.1 Compliant, ANSI/BHMA A156.2, Series 4000, Grade 2, ANSI/BHMA A156.41

Specifications

ANSI/BHMA Code: A156.2
Backset Depth (Standard): 2-3/4"
Cylinder Format: Conventional
Cylinder Pins: 6 pin
Door Thickness (Standard): 1-3/4"
Latchbolt Throw: 1/2"
Maximum Backset: 19"
Minimum Backset: 2-3/4"
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/8"
Number of Keys: 2
Strike Type: ANSI Curved Lip
UL Listed: Yes
ULC Listed: Yes

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

ACCENTRA Commercial Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
AU4722LN613E36936944814972022803-47L108S	Included,
PB4709LN625693F480B4813712022803-47L108S	Bright Chrome Plated, Included,
MO4704LN6263693F6944823711803-47L108S	Satin Chrome Plated, Not Included,
AU4722LN613E3693480B4814972021803-47L	Included,
AU4730LN626F6933694481DL3711803-47L	Satin Chrome Plated, Not Included,
MO4704LN6263693480B481DL3712022803-47L	Satin Chrome Plated, Included,
MO4709LN612F693F480B4823712022803-47L	Satin Bronze w/ Clear Coated, Included,
AU4704LNWSPF693F6944824972803-47L108S	White Suede Powder Coat, Not Included,
AU4706LN612693F480B4813711803-47L	Satin Bronze w/ Clear Coated, Not Included,
AU4702LNBSP693F480B481DL3711803-47L	Black Suede Powder Coat, Not Included,
PB4704LN60536933480B481DL3712022803-47L	Bright Brass w/ Clear Coated, Included,
MO4729LN605F6936944823711803-47L	Bright Brass w/ Clear Coated, Not Included,
AU4739LN605693F6944824972022803-47L108S	Bright Brass w/ Clear Coated, Included,
AU4730LN626F6933480B4813712803-47L	Satin Chrome Plated, Not Included,
AU4702LNBSPF6936944813712022803-47L	Black Suede Powder Coat, Included,
