> >>>ZERO 565 Rabbeted Threshold/Neoprene Stop, 4-7/8"
Reduced price! ZERO 565A/BK/D/G Rabbeted Threshold/ Neoprene 3 11/16"(84.9) wide 1/2"(12.7) high View larger

ZERO International

ZERO 565 Rabbeted Threshold/Neoprene Stop, 4-7/8"

565

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$31.03

10% Off

$34.48

Details: ZERO 565 Rabbeted Threshold/Neoprene Stop, 4-7/8"

This Zero #565 door threshold is fitted with a neoprene stop which will ensure solid protection from sound, air infiltration, smoke and fire. It is crafted from heavy duty material to ensure quality performance. Available in a choice of finishes and is custom cut to size.

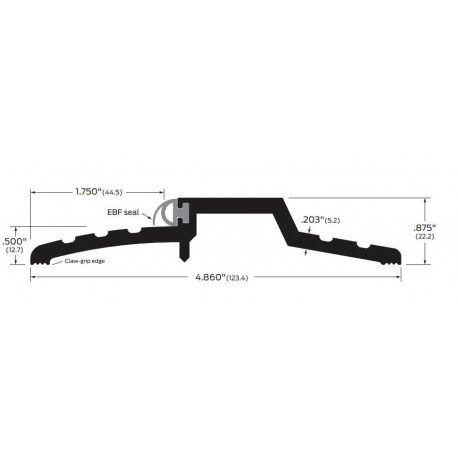

Specifications

Overall Height
.875" Height
Interior Height
.5" Height
Overall Width
4.860" Width
Interior Width
1.75" Width
Length
Custom Cut to Size
Required Door Clearance
.625" Height
Thickness
.203" Thick
Threshold Type
Rubber Seal / Bumper Threshold
Seal Type
Neoprene Seal
Material
Aluminum, Brass
Drilling Holes
Drilling holes provided
Fasteners
Fasteners Provided

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Data Sheet

Available Model Numbers and Combinations

Model/SKUAttributes
565G-8 Aluminum Gold Anodized,
565G-9 Aluminum Gold Anodized,
565A-1
565G-10 Aluminum Gold Anodized,
565A-2
565B-1
565A-3
565B-2
565A-4
565B-3
565B-4
565A-5
565A-6
565B-5
565B-6

View All Model Numbers and Options
