  7. ABH A111LL Aluminum Continuous Geared Hinge Fully Concealed For Lead Lined Door

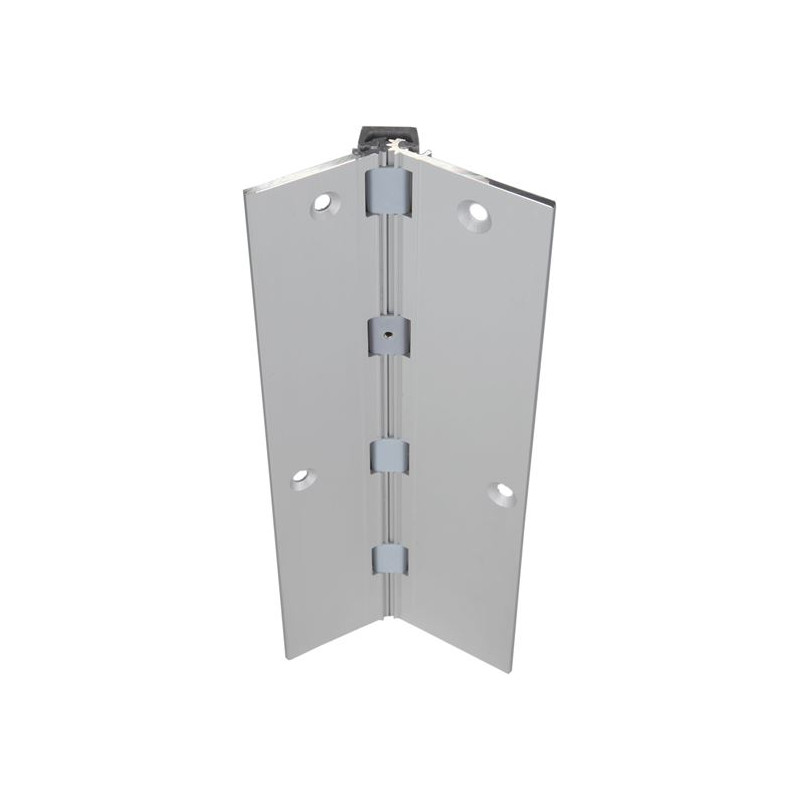

Reduced price! ABH A111 Aluminum Continuous Geared Hinge Fully Concealed For Lead Lined Doors View larger

ABH Hardware

ABH A111LL Aluminum Continuous Geared Hinge Fully Concealed For Lead Lined Door

A111

This item ships via LTL (Less than truckload) freight.

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$102.60

40% Off

$171.00

?

Details: ABH A111LL Aluminum Continuous Geared Hinge Fully Concealed For Lead Lined Door

Overview

  • Full Concealed, heavy duty
  • 1/8" door inset
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)

Specifications

Fasteners
12-24 × 7/8" undercut self drilling, thread forming tek machine screws
Standard Lengths
79", 83", 85", 95" and 120"
Finishes
Clear, dark bronze and black anodized
Fire Rating
Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating), or 60 minutes (Specifiy "FR" option for 90 minute rating)

Options

  • "TW" - Concealed Electrical Thru-Wire
  • "EZ" - EZ Connect Molex Plug-in Connectors for installation ease
  • "M" - Moveable Electrical Access Prep
  • "R" - Removable Electrical Access Prep
  • "PT" - Cut-out Prep for Power Transfer
  • "EC" - Exposed Electrical Contact
  • "EM" - Concealed Electrical Magnetic Monitoring Switch
  • "ES" - Exposed Electrical Monitoring Switch
  • "MT" - Concealed Electrical Thru-Wire and Magnetic Monitoring Switch
  • "CUT" - Cut to Custom Length
  • "SPLICE" - Spliced Hinge
  • "HT" - Hopsital Tip
  • "TR" - Tamper Resistent
  • "SEC" - Fasteners
  • "FR" - Fire Studs
  • "DD" - Dutch Door Prep
  • "SL" - Sheared Leaf
  • "CUSTOM HOLE" - Custom hole locations
  • "NO HOLE"
  • "CUSTOM FINISH"

Downloads

CUT SHEETS

TEMPLATES

CROSS REFERENCE CHARTS

Aluminum Continuous Geared Hinge Cross Reference Chart

TECH MEMOS

EZ Connect Wire Position Diagram Micro-Fit 3.0

Aluminum Continuous Geared Hinges - Cross Refereence Chart

Aluminum Continuous Geared Hinges - Cross Refereence Chart
TypeABH*Hager*Select*ASSA Abloy*
Pemko* McKinney*		Stanley*Ives*
Full ConcealedA110780-112SL11FM_SLFMCK-12661112
A110WT780-235SL40WT_FMMCK-WT--
A111780-111SL18-MCK-14--
A111WT------
A130780-113SL71FM_SLISFMCK-38--
A140780-124SL14----
A150--K_FM---
A160--FM_SLI---
A240780-224SL24FMMCK-25662224
A260-SL26----
A270780-226SL27----
A410780-041SL41OS_FM---
Half SurfaceA211780-112-OS_HS---
A213780-213---
A450780-045----045
A460780-046----046
A530780-053SL53---053
A540780-054SL54HSMCK-54663054
A550-HS_SF----
Full SurfaceA210780-210SL21FSMCK-22665210
A570780-157SL57FS_CPMCK-58664157
A571780-057SL60FS_BP---
Electrical OptionsABH*Hager*Select*ASSA Abloy*
Pemko* McKinney*		Stanley*Ives*
Concealed Electrical Thru-Wire
(number indicates quantity of wires)		TW4ETW-4CTW-4CC-4-CE-54TW4
TW8ETW-8CTW-8CC-8-CE-58TW8
TW12-CTW-12CC-12---
Concealed Electrical Thru-Wire with
"EZ" Molex® Connectors
(number indicates quantity of wires)		EZ4QC-CQ-4QC-4--
EZ8QC-QC-8QC-8--
EZ12--QC-12QC-12--
Movable Electrical Access PrepM-APACCACC--
Removable Electrical Access PrepRRETWRPSERSER--
Power Transfer Cut-OutPTEPTEPTPTPTEPTEPT
Exposed Electrical Contact
(specify quantity of contacts required)		ECEEC----
Concealed Electrical
Magnetic Monitor Switch		EMEMN---CS-
Exposed Electrical SwitchESE1SEMS----
Concealed Electrical Thru-Wire &
Magnetic Monitor Switch
(number indicates quantity of wires)		MT4ETMEMS/CTW----
MT8
MT12
Non-Electrical OptionsABH*Hager*Select*ASSA Abloy*
Pemko* McKinney*		Stanley*Ives*
Dutch DoorDDAvailDD-DDAvail-
Fire Studs - 3 - Hour Fire Rating
(metal frame / metal door)		FRU /L-STUDFR3FIRE PINSFIRE PINS KITFP-
Hospital TipHTAvailHTHTHTHT-
Lead-LinedLL------
School CapSCAvailSO--Avail-
Sheared Leaf for 1-3/8" DoorSL------
Hinges Longer than 120"SPLICEAvailLH Prep----
Tamper ResistantTRAvailSO Prep B----

*Brand names are trademarks or registered trademarks of their respective companies.

Available Model Numbers and Combinations

Model/SKUAttributes
A111LLC079 Clear, 79"
A111LLD079 Oxidized Satin Bronze, 79"
A111LLB079 Flat Black, 79"
A111LLC083 Clear, 83"
A111LLD083 83", Oxidized Satin Bronze
A111LLB083 Flat Black, 83"
A111LLC085 Clear, 85"
A111LLD085 Oxidized Satin Bronze, 85"
A111LLB085 Flat Black, 85"
A111LLC095 Clear, 95"
A111LLD095 95", Oxidized Satin Bronze
A111LLB095 Flat Black, 95"
A111LLC120 Clear, 120"
A111LLD120 Oxidized Satin Bronze, 120"
A111LLB120 Flat Black, 120"

View All Model Numbers and Options
