Reduced price! ABH A450/A460 Aliminum Continuous Geared Hinges Half Surface Models 9/32" Inset View larger

ABH Hardware

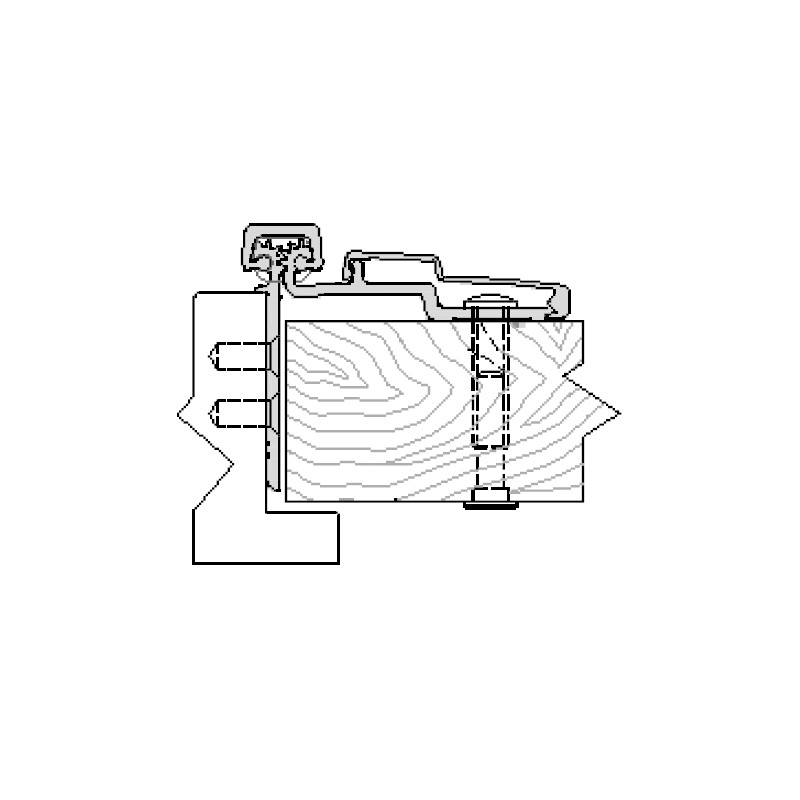

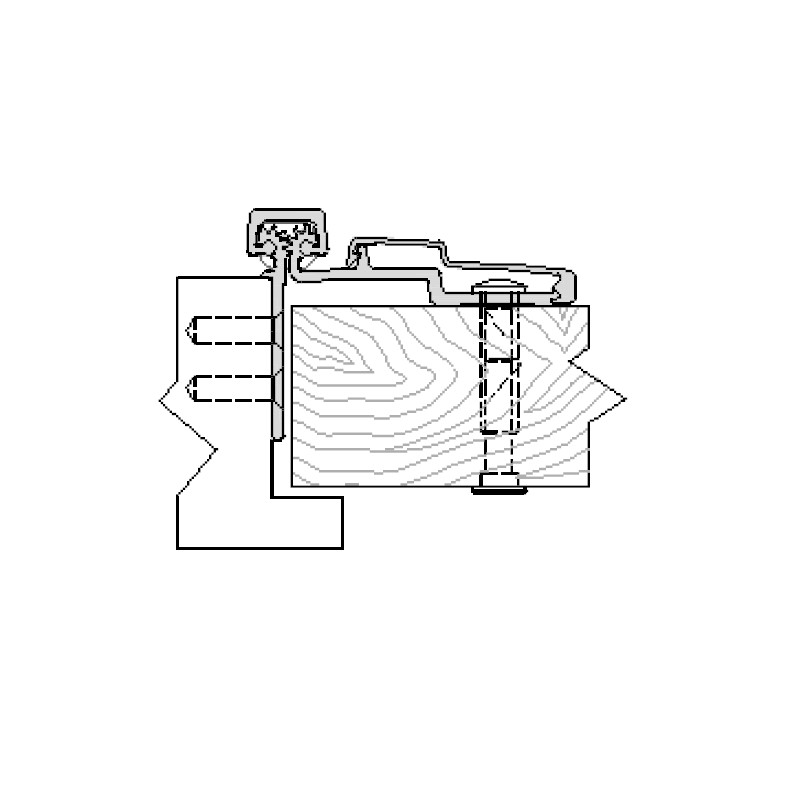

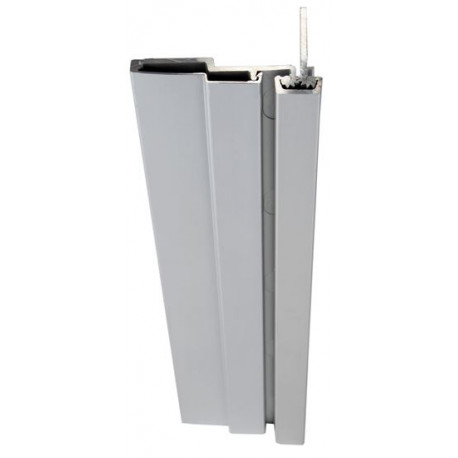

ABH A450 / A460 Aliminum Continuous Geared Hinges Half Surface Models 9/32" Inset

A450

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$183.00

40% Off

$305.00

?

Details: ABH A450 / A460 Aliminum Continuous Geared Hinges Half Surface Models 9/32" Inset

Overview

  • Half surface, heavy duty
  • 9/32" door inset
  • 48" door width maximum
  • 450 lbs. door weight maximum

Specifications

Fasteners
12-24 × 7/8" undercut self drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door
Standard Lengths
79", 83", 85", 95" and 120"
Finishes
Clear, dark bronze and black anodized
Fire Rating
Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating) or 60 minutes (Specifiy "FR" option for 90 minute rating)

Options

  • "PT" - Cut-out Prep for Power Transfer
  • "CUT" - Cut to Custom Length
  • "SPLICE" - Spliced Hinge
  • "HT" - Hopsital Tip
  • "TR" - Tamper Resistent
  • "SEC" - Fasteners
  • "FR" - Fire Studs
  • "SC" - School Cap
  • "DD" - Dutch Door Prep
  • "SL" - Sheared Leaf
  • "SNB for 1-3/8"" Shortened bolts to accomodate a 1-3/8" thick door
  • "CUSTOM HOLE" - Custom hole locations
  • "NO HOLE"
  • "CUSTOM FINISH"

Download

Aluminum Continuous Geared Hinges - Cross Refereence Chart

Aluminum Continuous Geared Hinges - Cross Refereence Chart
TypeABH*Hager*Select*ASSA Abloy*
Pemko* McKinney*
Stanley*Ives*
Full ConcealedA110780-112SL11FM_SLFMCK-12661112
A110WT780-235SL40WT_FMMCK-WT--
A111780-111SL18-MCK-14--
A111WT------
A130780-113SL71FM_SLISFMCK-38--
A140780-124SL14----
A150--K_FM---
A160--FM_SLI---
A240780-224SL24FMMCK-25662224
A260-SL26----
A270780-226SL27----
A410780-041SL41OS_FM---
Half SurfaceA211780-112-OS_HS---
A213780-213---
A450780-045----045
A460780-046----046
A530780-053SL53---053
A540780-054SL54HSMCK-54663054
A550-HS_SF----
Full SurfaceA210780-210SL21FSMCK-22665210
A570780-157SL57FS_CPMCK-58664157
A571780-057SL60FS_BP---
Electrical OptionsABH*Hager*Select*ASSA Abloy*
Pemko* McKinney*
Stanley*Ives*
Concealed Electrical Thru-Wire
(number indicates quantity of wires)
TW4ETW-4CTW-4CC-4-CE-54TW4
TW8ETW-8CTW-8CC-8-CE-58TW8
TW12-CTW-12CC-12---
Concealed Electrical Thru-Wire with
"EZ" Molex® Connectors
(number indicates quantity of wires)
EZ4QC-CQ-4QC-4--
EZ8QC-QC-8QC-8--
EZ12--QC-12QC-12--
Movable Electrical Access PrepM-APACCACC--
Removable Electrical Access PrepRRETWRPSERSER--
Power Transfer Cut-OutPTEPTEPTPTPTEPTEPT
Exposed Electrical Contact
(specify quantity of contacts required)
ECEEC----
Concealed Electrical
Magnetic Monitor Switch
EMEMN---CS-
Exposed Electrical SwitchESE1SEMS----
Concealed Electrical Thru-Wire &
Magnetic Monitor Switch
(number indicates quantity of wires)
MT4ETMEMS/CTW----
MT8
MT12
Non-Electrical OptionsABH*Hager*Select*ASSA Abloy*
Pemko* McKinney*
Stanley*Ives*
Dutch DoorDDAvailDD-DDAvail-
Fire Studs - 3 - Hour Fire Rating
(metal frame / metal door)
FRU /L-STUDFR3FIRE PINSFIRE PINS KITFP-
Hospital TipHTAvailHTHTHTHT-
Lead-LinedLL------
School CapSCAvailSO--Avail-
Sheared Leaf for 1-3/8" DoorSL------
Hinges Longer than 120"SPLICEAvailLH Prep----
Tamper ResistantTRAvailSO Prep B----

*Brand names are trademarks or registered trademarks of their respective companies.

Available Model Numbers and Combinations

Model/SKUAttributes
A450A450HDHDC079 Clear, 79", Narrow
A450A450HDHDD079 79", Oxidized Satin Bronze, Narrow
A450A450HDHDB079 Flat Black, 79", Narrow
A450A450HDHDC083 Clear, 83", Narrow
A450A450HDHDD083 83", Oxidized Satin Bronze, Narrow
A450A450HDHDB083 Flat Black, 83", Narrow
A450A450HDHDC085 Clear, 85", Narrow
A450A450HDHDD085 85", Oxidized Satin Bronze, Narrow
A450A450HDHDC095 Clear, 95", Narrow
A450A450HDHDD095 95", Oxidized Satin Bronze, Narrow
A450A450HDHDB095 Flat Black, 95", Narrow
A450A450HDHDC120 Clear, 120", Narrow
A450A450HDHDD120 120", Oxidized Satin Bronze, Narrow
A450A450HDHDB120 Flat Black, 120", Narrow
A450A460HDHDC079 Clear, 79", Full

View All Model Numbers and Options
