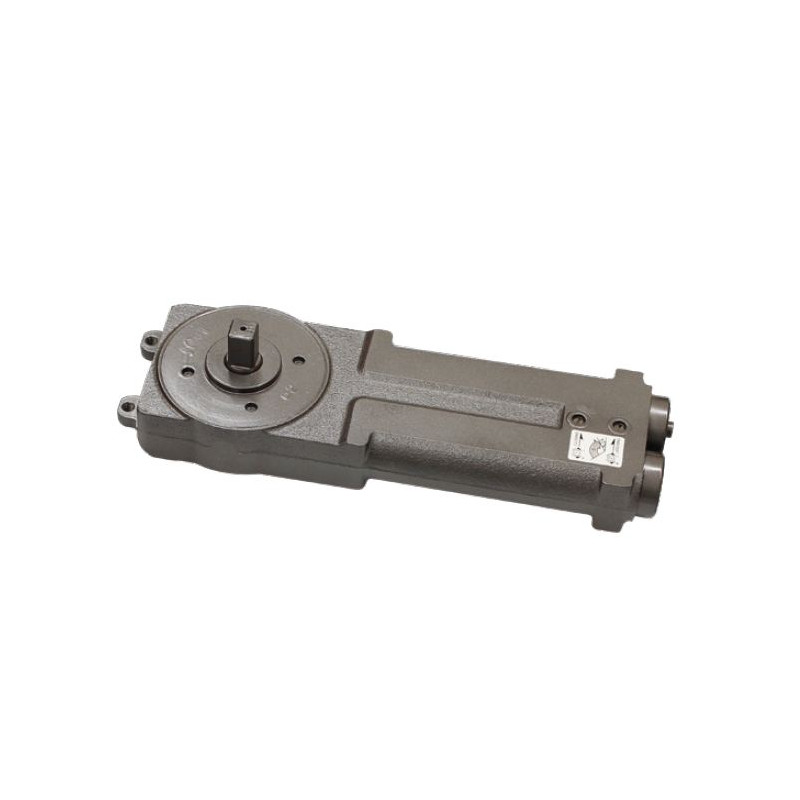

Cal-Royal 88 Series Grade 1, Concealed Overhead Door Closer W/ Fixed and Adjustable Power Spring

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Cal-Royal 88 Series Grade 1, Concealed Overhead Door Closer W/ Fixed and Adjustable Power Spring

Cal-Royal?s finest concealed overhead door closer series meeting the highest industry standards Grade 1.

Features

ANSI A156.4 Grade 1: UL Listed
UL Listed for fixed-size door closers. (Grade 1)
UL Listed 10C for adjustable door closers. (Grade 1)
Center Hung Door Application: Double or Single Acting (applied door stop renders unit Single Acting). Adjustable "S" type side loading or "A" type, "K" type, and "PT" type end loading arms are available for center pivoted door applications.
Offset Hung Door Application: Single Acting Offset "JO" and "VO" type top arms are available for butt hung or offset pivoted applications.
Available with 1/2", 3/4" long, and 7/8" extended spindles.
Power Adjustable 1-4 ( Grade 1 ):
Meets both 5 and 8.5 lbs opening force for ADA
Replacement for International, Calibre, and CR Laurence
ANSI A156.4 Grade 1: UL Listed
Dual Speed Control Valves
Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation. Universal application. Non-handed for left or right door application.
An adjustable dual-purpose radial ball-bearing bottom pivot set is provided for floor or threshold mounted ( Side or End Loading ) center pivoted installation. Bottom pivot sets are optional and must be ordered separately.
Installs in an aluminum storefront header or transom as small as 1-3/4" × 4".
Positive centering for alignment and to hold door closed against the normal wind or draft conditions.
Center Hung Doors

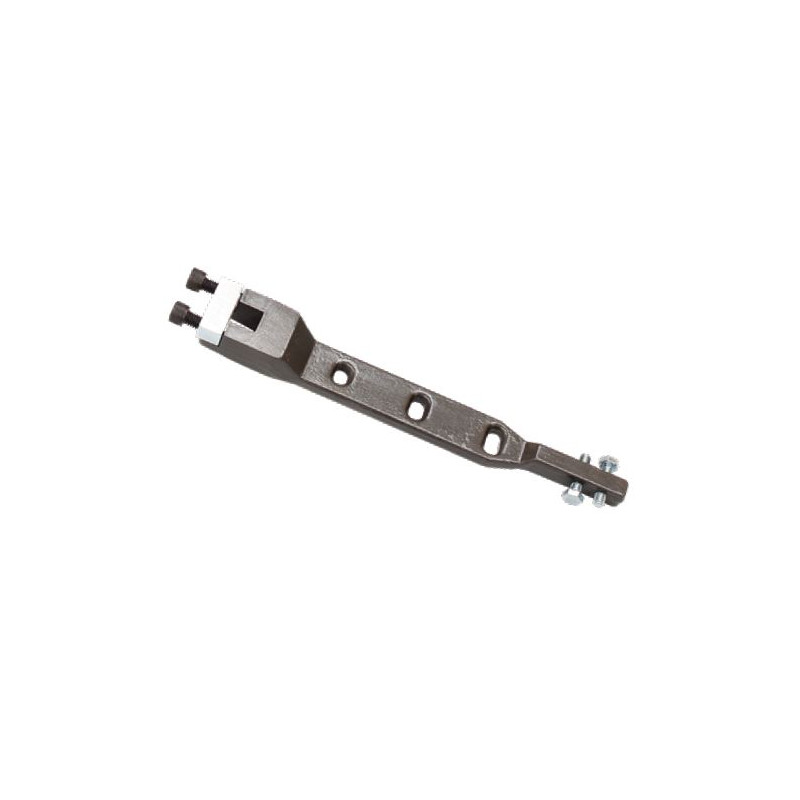

Arm package complete units come standard with top arm assembly "S" ( side loading arm ) or "A", "K", and "PT" ( end loading arm ), adjustable dual purpose bottom pivot set, and anchor set with all fasteners ( 88-PV ).
"JO" or "VO" type offset arms are optional but must be specified. Specify finish ALUM or DURO.
For optional pivots, suffix arm type ( "S", "A", "K" or "PT" ) and pivot type ( "88-G" or "88-GE" ) after the body part # ( eg. 8840S + G ) otherwise, shipped with adjustable dual purpose bottom pivot set, and anchor set with all fasteners ( 88-PV ).
Offset Hung Doors
Offset hung doors are single-acting.
Offset "JO" and "VO" type top arms are available for butt hinge or offset pivot applications. Offset pivots or Butt hinges not included.
Arm package complete units come standard with top arm assembly "S" side loading arm or "A", "K", and "PT" end loading arm, adjustable dual purpose bottom pivot set and anchor set with all fasteners.
"JO" or "VO" type offset arms are optional but must be specified. Specify finish ALUM or DURO.
For optional pivots, suffix arm type ( "S", "A", "K" or "PT" ) and pivot type ( "88-G" or "88-GE" ) after the body part

Specifications

Opening: 90
Cal-Royal Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
8811 S -PV	3/4", 90ų Non Hold Open, Standard
8800 -PV	Not Included, 7/8", 90ų Hold Open, Standard
8802 K -G	7/8", 90ų Non Hold Open, Adjustable Floor Mount Bottom Pivot Set
8855 S VO ALUM -PV	1/2", Light, 90ų Hold Open, Standard
8840 K -PV	1/2", 90ų Hold Open, Standard
8857 PT JO DURO -GE	1/2", Light, 90ų Non Hold Open, Adjustable Threshold Mount Bottom Pivot Set
8864 JO ALUM -G	1/2", Not Included, Heavy, 105ų Hold Open, Adjustable Floor Mount Bottom Pivot Set
8865 PT VO ALUM -G	1/2", Heavy, 90ų Non Hold Open, Adjustable Floor Mount Bottom Pivot Set
8864 A VO DURO -GE	1/2", Heavy, 105ų Hold Open, Adjustable Threshold Mount Bottom Pivot Set
8858 S JO DURO -GE	1/2", Light, 105ų Non Hold Open, Adjustable Threshold Mount Bottom Pivot Set
8856 K JO ALUM -GE	1/2", Light, 105ų Hold Open, Adjustable Threshold Mount Bottom Pivot Set
8858 K VO DURO -G	1/2", Light, 105ų Non Hold Open, Adjustable Floor Mount Bottom Pivot Set
8860 JO DURO -PV	1/2", Not Included, Medium, 105ų Hold Open, Standard
8861 S VO DURO -G	1/2", Medium, 90ų Non Hold Open, Adjustable Floor Mount Bottom Pivot Set
8866 S -G	1/2", Heavy, 105ų Non Hold Open, Adjustable Floor Mount Bottom Pivot Set
