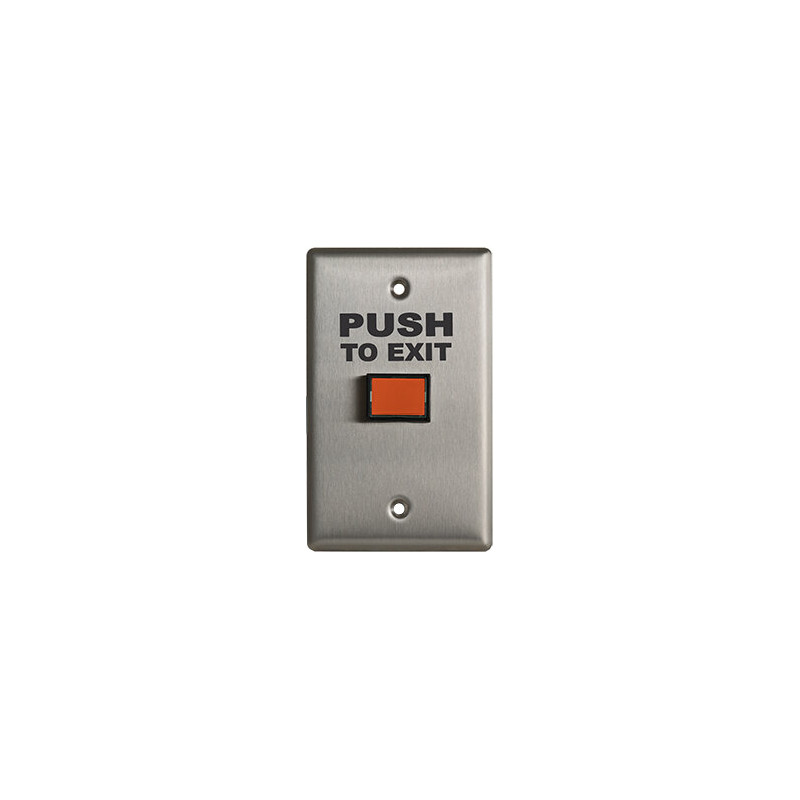

Reduced price! Camden CM-300/310 Series Rectangular Illuminated Switch Single Gang Faceplate View larger

Camden Door Controls

Previous Next

Camden Door Control CM-300/310 Series Rectangular LED Illuminated Switch

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$52.00

35% Off

$80.00

Details: Camden Door Control CM-300/310 Series Rectangular LED Illuminated Switch

CM-300 (single gang) and CM-310 (narrow) series LED illuminated exit switches are economical illuminated exit controls. Buttons are 5/8" × 7/8" and are available in red or green. They are supplied with a stainless steel faceplate in single gang or jamb (narrow) widths. The CM-310EE model is supplied with a narrow style faceplate and an integrated 30 second timer with double break circuitry. As required by code, the double break circuit design ensures power to the mag lock will be interrupted by pressing the button should the timer or request to exit sensor malfunction.

Features

  • Heavy-duty stainless steel face plate.
  • 1/2" × 3/4" illuminated button.
  • 12/ 24V LED bulb.

Specifications

Voltage
12/24 VDC
Contact Type
SPDT Form 'C'
Contact Rating
3A, 30V DC
Switch Type
Momentary
Dimensions CM-30
04-1/2" X 2-3/4" X 1-5/16" (114mm X 70mm X 33mm)
Dimensions CM-310
4-1/2" X 1-3/4" X 1-5/16" (114mm X 44mm X 33mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
CM-300GS/8 Green, SORTIE, PUSH TO LOCK,
CM-300GS/8LED Green, SORTIE, PUSH TO LOCK,
CM-300GSA/3 Green, SALIDA, PUSH TO OPEN,
CM-300GSA/3LED Green, SALIDA, PUSH TO OPEN,
CM-300GSA/3F Green, SALIDA, POUSSEZ POUR OUVRIR,
CM-300GSA/3FLED Green, SALIDA, POUSSEZ POUR OUVRIR,
CM-300GSA/3S Green, SALIDA, EMPUJE PARA ABRIR,
CM-300GSA/3SLED Green, SALIDA, EMPUJE PARA ABRIR,
CM-300GSA/8 Green, SALIDA, PUSH TO LOCK,
CM-300GSA/8LED Green, SALIDA, PUSH TO LOCK,
CM-300R/3 Red, Not Included, PUSH TO OPEN,
CM-300R/3LED Red, Not Included, PUSH TO OPEN,
CM-300R/3F Red, Not Included, POUSSEZ POUR OUVRIR,
CM-300R/3FLED Red, Not Included, POUSSEZ POUR OUVRIR,
CM-300R/3S Red, Not Included, EMPUJE PARA ABRIR,

View All Model Numbers and Options
