  6. Camden Door Control CM-45/46 Series Stainless Steel 4-1/2" Square Push Plate Switch
Reduced price! Camden CM-45/46 Series Stainless Steel 4 1/2" Square Push Plate View larger

Camden Door Controls

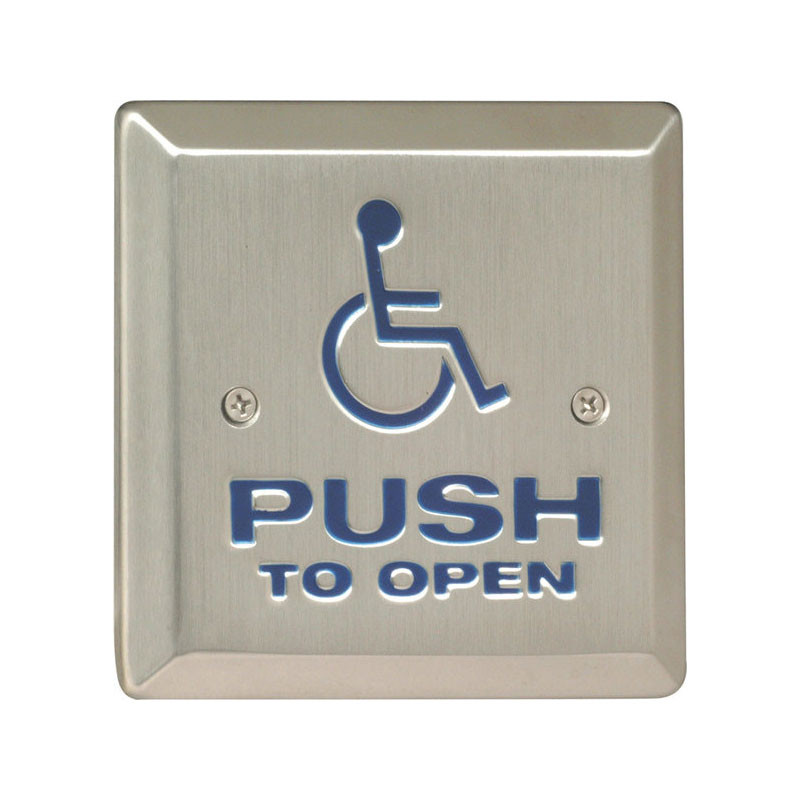

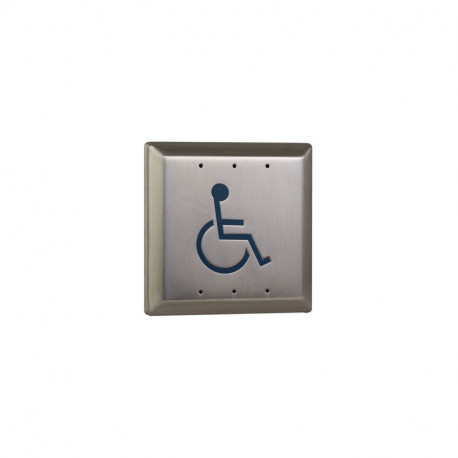

Camden Door Control CM-45/46 Series Stainless Steel 4-1/2" Square Push Plate Switch

CM-

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$52.00

35% Off

$80.00

Details: Camden Door Control CM-45/46 Series Stainless Steel 4-1/2" Square Push Plate Switch

CM-45 (concealed screws) and CM-46 Series (exposed screws) 4-1/2" square push plate switches mount to standard single/double gang electrical boxes. The SPDT (and optional DPDT) switches are rated 15 amps 30 VDC. Push switches are offered with different graphics in various architectural finishes. Weather resistant and water tight configurations also available.

Features

  • ADA Compliant.
  • 4 stud switch design and rubber dampers for quieter operation.
  • CM-45 Hidden mounting screws, Stainless steel construction.

Specifications

Voltage
12/24 V AC/DC.
Switch Type
Momentary.
Contact Type
SPDT Form 'C'.
Mounting
Single or Double Gang.
Dimensions
4-1/2" X 4-1/2" X 1-1/4" (114mm X 114mm X 32mm).

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
CM-46/2ARSBWT Wheelchair Symbol w/ Right Arrow, Satin Brass, Included
CM-45/8D PUSH TO LOCK DOOR, Stainless Steel, Not Included
CM-45/3BBWT PUSH TO OPEN, Included
CM-45/2ARWT Wheelchair Symbol w/ Right Arrow, Stainless Steel, Included
CM-45/8DWT PUSH TO LOCK DOOR, Stainless Steel, Included
CM-46/2ARSBDP Wheelchair Symbol w/ Right Arrow, Satin Brass, Not Included
CM-46/2ARSBDPWT Wheelchair Symbol w/ Right Arrow, Satin Brass, Included
CM-45/2ARDP Wheelchair Symbol w/ Right Arrow, Stainless Steel, Not Included
CM-45/8DDP PUSH TO LOCK DOOR, Stainless Steel, Not Included
CM-46/2ARORB Wheelchair Symbol w/ Right Arrow, Oil Rubbed Bronze, Not Included
CM-45/3BBDP PUSH TO OPEN, Not Included
CM-46/2ARORBWT Wheelchair Symbol w/ Right Arrow, Oil Rubbed Bronze, Included
CM-45/2ARDPWT Wheelchair Symbol w/ Right Arrow, Stainless Steel, Included
CM-45/8DDPWT PUSH TO LOCK DOOR, Stainless Steel, Included
CM-46/2ARORBDP Wheelchair Symbol w/ Right Arrow, Oil Rubbed Bronze, Not Included

View All Model Numbers and Options
