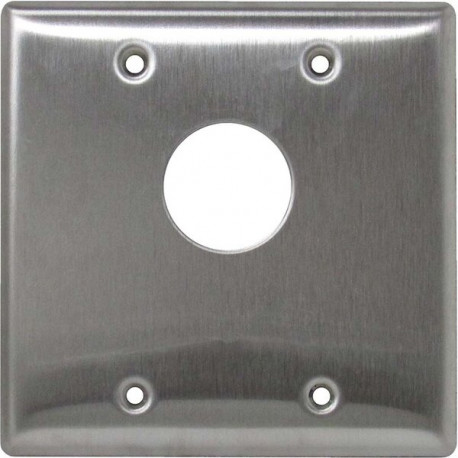

Camden CM-3200-70242 Series Double Gang Single Cylinder Key Switch - Stainless Steel Faceplate

Model: CM-3200-70242

Browse All Combinations

LED Color: Red
LED Voltage: 24V
LED: Double LED
Contact: SPST Momentary Normally Open (N/O)
Finish: Stainless Steel

edit options

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Camden CM-3200-70242 Series Double Gang Single Cylinder Key Switch - Stainless Steel Faceplate

Camden CM-3200 Tough double Gang stainless steel key switches offer thicker faceplates for better vandal resistance, rounded metal edges for safer installation and accept virtually any 1" to 1-1/4" mortise cylinder.

Features

Left and/or right operation.
Accepts standard mortise cylinders, 1" - 1-1/4".
Heavy duty double gang stainless steel faceplate.
Locators prevent cylinders from spinning.
Tamper proof screws and driver provided.
Indoor and outdoor flush applications.
Provision for up to 4 internal switches.
Heat shrink protective sleeve over contacts.
Color coded 18 AWG soldered leads.

Specifications

Voltage: 12/24V AC/DC.
Contact Rating: 6A, 30VDC.
Switch Life: All: 100,000 cycles.
Temp Range: 32F - 85F(0C to plus 85C).
Dimensions: 4-1/2" X 4-1/2" X 1-5/8"(114mm X 114mm X 41mm).

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Camden Door Controls Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
CM-3210-70122	Red, 12V, Double LED, SPST Maintained, Stainless Steel
CM-3292BRZ-70242	Red, 24V, Double LED, (2) DPDT Maintained, Dark Bronze
CM-3270BRZ-7112	Green, 12V, Single LED, SPDT Momemtary & SPDT Maintained, Dark Bronze
CM-3292BRZ-71122	Green, 12V, Double LED, (2) DPDT Maintained, Dark Bronze
CM-3210-70242	Red, 24V, Double LED, SPST Maintained, Stainless Steel
CM-3292BRZ-71242	Green, 24V, Double LED, (2) DPDT Maintained, Dark Bronze
CM-3230BRZ-74122	Amber, 12V, Double LED, (1) SPDT N.O. & N.C. Maintained, Dark Bronze
CM-3292BRZ-74122	Amber, 12V, Double LED, (2) DPDT Maintained, Dark Bronze
CM-3210-71122	Green, 12V, Double LED, SPST Maintained, Stainless Steel
CM-3270BRZ-7124	Green, 24V, Single LED, SPDT Momemtary & SPDT Maintained, Dark Bronze
CM-3292BRZ-74242	Amber, 24V, Double LED, (2) DPDT Maintained, Dark Bronze
CM-3292BRZ-76242	Bi-Color, 24V, Double LED, (2) DPDT Maintained, Dark Bronze
CM-3230BRZ-74242	Amber, 24V, Double LED, (1) SPDT N.O. & N.C. Maintained, Dark Bronze
CM-3210-71242	Green, 24V, Double LED, SPST Maintained, Stainless Steel
CM-3230BRZ-76242	Bi-Color, 24V, Double LED, (1) SPDT N.O. & N.C. Maintained, Dark Bronze
