Reduced price! Command Access MLRK1-ARW Motorized Latch Retraction Kit for Arrow 1000/3000/4000 Series Exit Device (REXKIT Available) View larger

Command Access Technologies

Command Access MLRK1-ARW Motorized Latch Retraction Kit For Arrow 1000/3000/4000 Series Exit Device

MLRK1-ARW

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$555.59

12% Off

$631.35

Details: Command Access MLRK1-ARW Motorized Latch Retraction Kit For Arrow 1000/3000/4000 Series Exit Device

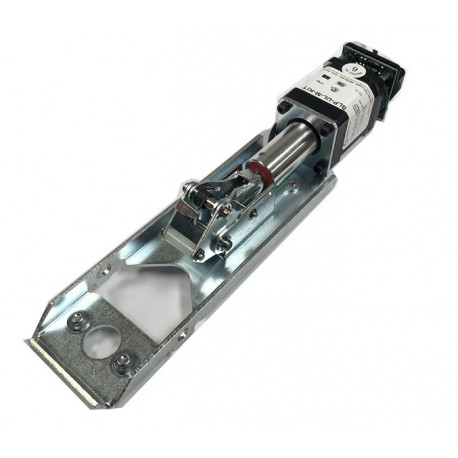

The MLRK1-ARW is a practical and cost-effective way to convert a mechanical Arrow 1000/3000/4000 series device to an electrified latch pullback device while maintaining the UL list-ing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done

Features

  • MM4S Smart Module: On board diagnos-tics with audible feedback for adjustment and power issues.
  • "PTS" 5 second electronic adjustment for easy post installation adjustment.
  • Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position.
  • Low Current Draw - Field switchable to "High Torque" mode.
  • Up to 300' wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
  • 8' cable with Quick Connect for MM4Smodule to easily connect to power supply lead.
  • Request-to-exit kit available.
  • 3-year "no hassle" warranty

Specifications

Voltage range
24 to 28 VDC
System protection
unit shutdown when voltage exceeds 28VDC
Standard
Average Current Peak
High Torque
Average Current Peak
PTS adjustment - approx. 1/4"
Wire Run
300' with 18ga wire

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
