Reduced price! Yale 6130 Series Mortise Exit Device View larger

ACCENTRA Commercial

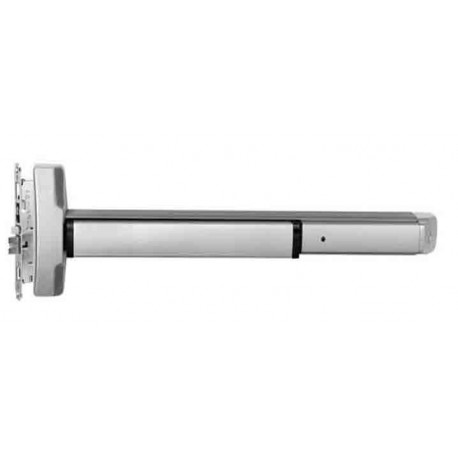

ACCENTRA (formerly Yale) 6130ED Series Mortise Exit Device

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$1,151.24

40% Off

$1,918.74

?
?

Details: ACCENTRA (formerly Yale) 6130ED Series Mortise Exit Device

The 6130ED is an exit device integrated with the ACCENTRA 8700 Series Mortise Lock for use on single doors or active leaf of a pair of doors where life safety and extra security are required. The 8700 Series Mortise Lock is modified for use with exit devices only.

Features

  • Highly durable aluminum rail design with architecturally finished touch bar.
  • Heavy duty, angled end cap design protects rail, eliminates catch points and reduces damage
  • Unique design provides noise reduction and smooth operation of the touch bar
  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Two-piece mechanical 3/4" throw deadlocking stainless steel latchbolt
  • Available in double cylinder function
  • For - Single swing doors, Pairs of doors with removable mullions, Wide stile aluminum, metal, wood or composite door materials

Specifications

Door Thickness
1-3/4" (44mm) standard.
Minimum Stile Width
4-1/2" (114mm)
Projection
3-1/4" (83mm) active; 2-1/2" (63.5mm) dogged
Latchbolt
Two piece mechanical 3/4" (19mm) deadlocking stainless steel with anti-friction insert and auxilliary deadlocking latch
Strike(s)
798 curved lip
Fasteners
Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire
Handing
Handed
ANSI/BHM
Certified ANSI/BHMA A156.3 Type 3 Grade 1 standards
Dogging
Hex key dogging standard on panic; optional cylinder dogging

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
6130FED634FTGRHRWSP2802 Right Hand Reverse, White Suede Powder Coat,
6130F2ED634FTULHRWSP2802 Left Hand Reverse, White Suede Powder Coat,
6130FED634FTGLHR6301802A Left Hand Reverse,
6130ED633FRALHR629 Left Hand Reverse, Bright Stainless Steel,
61302ED634FCRLHR613E3804 Left Hand Reverse,
6130ED627FTYRHRWSP Right Hand Reverse, White Suede Powder Coat,
61302ED633FRARHR606 Right Hand Reverse,
6130ED627FUWLHR630 Left Hand Reverse,
6130ED627FTXLHR630 Left Hand Reverse,
61302ED634FPBLHR6291802A Left Hand Reverse, Bright Stainless Steel,
6130FED635FTELHR613E2802 Left Hand Reverse,
6130F2ED634FTYRHRWSP Right Hand Reverse, White Suede Powder Coat,
6130F2ED629FMOLHR6063804 Left Hand Reverse,
6130ED627FUXLHR630 Left Hand Reverse,
6130ED627FTZLHR630 Left Hand Reverse,

View All Model Numbers and Options
