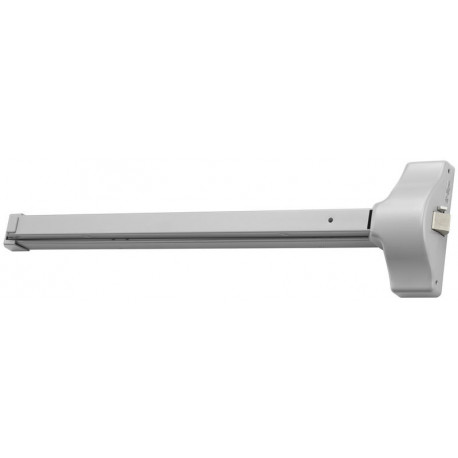

ACCENTRA (formerly Yale) 1800 Series Grade 1 Rim Exit Device

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$235.27

40% Off

$392.11

?

Details: ACCENTRA (formerly Yale) 1800 Series Grade 1 Rim Exit Device

The 1800 Series Exit Devices are the ideal choice for economy commercial applications where you need consistent quality, dependability and ease of use and installation. The 1800 Series is ANSI/BHMA certified Grade 1, with durable construction and versatile mounting applications, making it ideal for a variety of facilities. Offering strength and durability in one reliable product after another.

The 1800 is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials.

Features

  • High-grade steel components offer superior protection against wear & tear
  • Sturdy construction is ideal for meeting the rigors of demanding industry environments
  • Strong & Durable to ensure long life and reliability
  • Designed for wide stile doors
  • Non-handed for easy installation
  • Steel interlock "E" bracket maintains door-to- mullion relationship in fire-labeled devices
  • ANSI/BHMA Certified: A156.3 Type 1, Grade 1
  • For - Single swing doors, Pairs of doors (mullion required), Metal, wood or composite door materials

Specifications

Door Thickness
1-3/4" (44mm) standard.
Minimum Stile Width
4-1/2" (114mm)
Projection
2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Strike
757F
UL/cUL Listed
FVSR/FVSR7 - Panic hardware, GXHX/GXHX7 - Fire exit hardware (F) (up to 4' x 8' single, 8' x 8' pairs, 3 hr.)
Dogging
Hex key dogging supplied standard on panic devices

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
18001810F689 Aluminum Painted,
18001810F68960-7000-0750 Aluminum Painted,
18001810F689M204 Aluminum Painted,
18001810F689M20460-7000-0750 Aluminum Painted,
18001810F689M203 Aluminum Painted,
18001810F689M20360-7000-0750 Aluminum Painted,
18001810F689M203M204 Aluminum Painted,
18001810F689M203M20460-7000-0750 Aluminum Painted,
18001810F68960-7000-1131 Aluminum Painted,
18001810F68960-7000-113160-7000-0750 Aluminum Painted,
18001810F68960-7000-1131M204 Aluminum Painted,
18001810F68960-7000-1131M20460-7000-0750 Aluminum Painted,
18001810F68960-7000-1131M203 Aluminum Painted,
18001810F68960-7000-1131M20360-7000-0750 Aluminum Painted,
18001810F68960-7000-1131M203M204 Aluminum Painted,

View All Model Numbers and Options
