Detex AO19-1 A019 Series Low Energy Automatic Door Operators - Single Door

Model:

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Detex AO19-1 A019 Series Low Energy Automatic Door Operators - Single Door

For more Options, Accessories & Parts, please contact us at 215-279-8511.

Ao19-1 Automatic Operator For Single Doors

The AO19 Series Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy applications.

AO19-1 Low Energy Automatic Door Operators for Single Doors

The AO19 Series Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy applications. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.

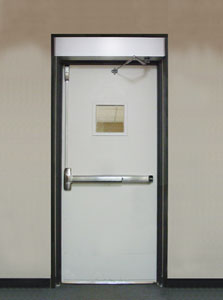

Shown with 21 Series Electric Latch Retraction (ER)

Benefits

Economical operator provides safe and easy access in medium to high-traffic and security areas
Provides ADA compliant access to handicap applications
Quiet operation
Hanger plate allows quick installation
Self-contained unit in an extruded case allows easy access for maintenance and adjustments
Works with existing access control, locking and computer signal devices
Reduced service calls due to heavy-duty construction
3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
115VAC power plug-in mounted in header
Easy manual use

Features

Available in single, pair (twin) for independent, simultaneous and dual egress openings
Power close applies a reverse power to aid in latch check position. Must be selected to activate.
Single voltage source required to operate
Adjustable delayed activation for sequenced vestibule doors
Reverse on obstruction stalls a door during closing cycle and re-activates to open if an obstruction is sensed anytime before the latch position. Must be selected to activate
Adjustable closing speed
Push & Go (Use for Handicap) activates when door is manually pushed to open. Must be selected to activate.
Electric lock relay provides an adjustable delay before door opens to unlock an electric strike, maglock or other types of electric locks - prevents binding

Mechanical Options

LH Push - Left Hand Push
RH Push - Right Hand Push
LH Pull - Left Hand Pull
RH Pull - Right Hand Pull
39.5" - Fits above most 36" doors
45.5" - Fits above most 42" doors
52" - Fits above most 48" doors

Accessories

104792 - Wireless Button Package (includes 2 push plates, 2 mounting boxes and 1 receiver)
PB-2048-3 - Mushroom switch, hard-wired
DS-3681-630 - Electric Strike, cylindrical

Technical Information

Power Requirements: 115VAC 60 HZ 3 amps
Motor: 115VDC rectified, ⅛ hp, 60:1 gearbox
Module: Activation input terminals, Form C lock switch terminals, Safety lock-out built in, 17 additional features standard on board
Enclosure: 7" h × 4½" d, Approximately 50 lbs, Aluminum extrusion
Push reveal: Depth up to 11" with standard arm. Extended arm available
Pull reveal: Depth up to 5"

Finishes

AL - 204-Ri Clear: Arch. Class II anodized coating, AA-M12C22A31
BZ - 313-Ri Dark Bronze: Arch. Class II Anodized coating, AA-M12C22A32

Downloads

Detex A019 Operator Video

Detex Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
AO19-1xLH Push Clear	Clear,
AO19-1xRH Push Clear	Clear,
AO19-1xLH Pull Clear	Clear,
AO19-1xRH Pull Clear	Clear,
AO19-1xLH Push BZ
AO19-1xRH Push BZ
AO19-1xLH Pull BZ
AO19-1xRH Pull BZ
