Reduced price! Detex AO19-3 A019 Series Low Energy Automatic Door Operators - Double Egress Door

View larger

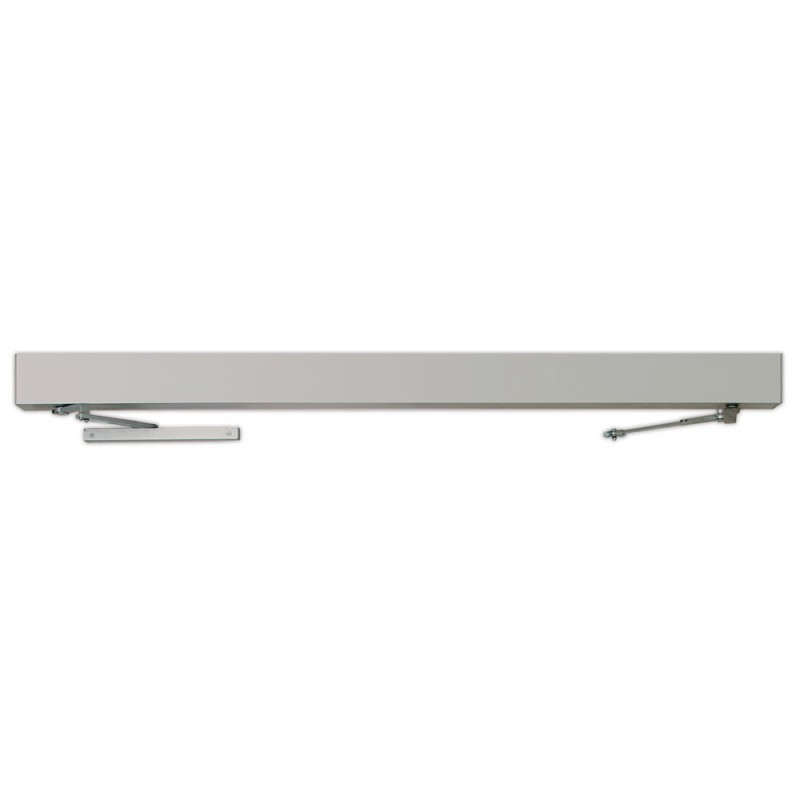

Detex AO19-3 A019 Series Low Energy Automatic Door Operators - Double Egress Door

Model:

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Detex AO19-3 A019 Series Low Energy Automatic Door Operators - Double Egress Door

For more Options, Accessories & Parts, please contact us at 215-279-8511.

Ao19-3 Low Energy Automatic Door Operators For Double Egress Doors

The AO19 Series Automatic Operator for double egress doors is an easy to install, heavy duty product for high use and high abuse low energy applications. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.

Shown with 21 Series Electric Latch Retraction (ER)

Benefits

Economical operator provides safe and easy access in medium to high-traffic and security areas
Provides ADA compliant access to handicap applications
115VAC power plug-in mounted in header
Hanger plate allows quick installation
Self-contained unit in an extruded case allows easy access for maintenance and adjustments
Works with existing access control, locking and computer signal devices
Reduced service calls due to heavy-duty construction
3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
Quiet operation
Easy manual use

Features

Available in single, pair (twin) for independent, simultaneous and dual egress openings
Reverse on obstruction stalls a door during closing cycle and re-activates to open if an obstruction is sensed anytime before the latch position. Must be selected to activate.
Adjustable delayed activation for sequenced vestibule doors
Single voltage source required to operate
Electric lock relay provides an adjustable delay before door opens to unlock an electric strike, maglock or other types of electric locks
Push & Go (Use for Handicap) activates when door is manually pushed to open. Must be selected to activate.
Power close applies a reverse power to aid in latch check position. Must be selected to activate.

Mechanical Options

RH Typical
LH
75.5" - Fits above most pairs of 36" doors
92" - Fits above most 44" pairs of doors
100" - Fits above most 48" pairs of doors

Accessories

104792 - Wireless Button Package (includes 2 push plates, box and receiver)
PB-2048-3 - Mushroom switch, hard-wired
PT5 - Power Transfer
EWH8-626 - Electric Hinge

Finishes

AL - 204-Ri Clear: Arch. Class II anodized coating, AA-M12C22A31
BZ - 313-Ri Dark Bronze: Arch. Class II Anodized coating, AA-M12C22A32

Download

Detex A019 Operator Video

Detex Warranty
