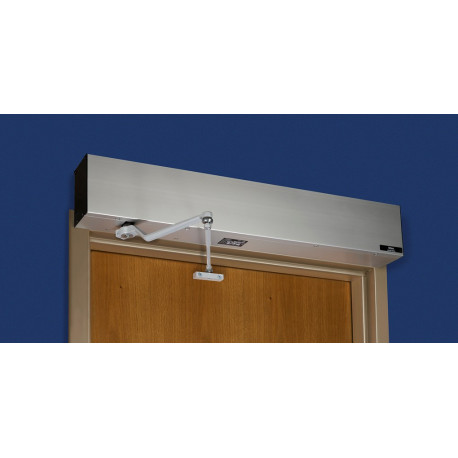

Reduced price! Entrematic HA8-SP Series, Surface Mount Low Energy Ditec Door Operators, Push or Pull Arm View larger

Entrematic

Entrematic HA8-SP Series, Surface Mount Low Energy Ditec Door Operator

W9-

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$4,163.40

10% Off

$4,626.00

Details: Entrematic HA8-SP Series, Surface Mount Low Energy Ditec Door Operator

The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.

Features

  • High precision gears made for sustained long-term use.
  • Electro Mechanical Design for simple dependable operation.
  • Permanent lubrication for maintenance free operation.
  • Cast alloy gear box.
  • 1/8th HP motor.
  • Digital control board.
  • Built to outlast the competition.
  • Perfect for high traffic locations.

Specifications

Header Profile
6 1/2" × 4 1/2"
Motor
1/8 HP
Header Finish
clear or dark bronze extruded aluminum
Push Reveal
0" to 14"
Pull Reveal
0" to 4"
Total Weight with 39" Header
45 lbs
Handed
Specify left/right, push or pull

Tech Tip: Setting Reed Switches on the Ditec HA8-SP

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Available Model Numbers and Combinations

Model/SKUAttributes
W9-103-39 RPS CL Clear, 39", Right Hand Push, 36" Single, Not Included, Not Included,
W9-107-39 RPS BZ Bronze, 39", Right Hand Push, 36" Single, Not Included, Not Included,
W9-104-39 RPL CL Clear, 39", Right Hand Pull, 36" Single, Not Included, Not Included,
W9-108-39 RPL BZ Bronze, 39", Right Hand Pull, 36" Single, Not Included, Not Included,
W9-103-45 RPS CL Clear, 45", Right Hand Push, 42" Single, Not Included, Not Included,
W9-107-45 RPS BZ Bronze, 45", Right Hand Push, 42" Single, Not Included, Not Included,
W9-104-45 RPL CL Clear, 45", Right Hand Pull, 42" Single, Not Included, Not Included,
W9-108-45 RPL BZ Bronze, 45", Right Hand Pull, 42" Single, Not Included, Not Included,
W9-103-51 RPS CL Clear, 51", Right Hand Push, 48" Single, Not Included, Not Included,
W9-107-51 RPS BZ Bronze, 51", Right Hand Push, 48" Single, Not Included, Not Included,
W9-104-51 RPL CL Clear, 51", Right Hand Pull, 48" Single, Not Included, Not Included,
W9-108-51 RPL BZ Bronze, 51", Right Hand Pull, 48" Single, Not Included, Not Included,
W9-101-39 LPS CL Clear, 39", Left Hand Push, 36" Single, Not Included, Not Included,
W9-105-39 LPS BZ Bronze, 39", Left Hand Push, 36" Single, Not Included, Not Included,
W9-102-39 LPL CL Clear, 39", Left Hand Pull, 36" Single, Not Included, Not Included,
