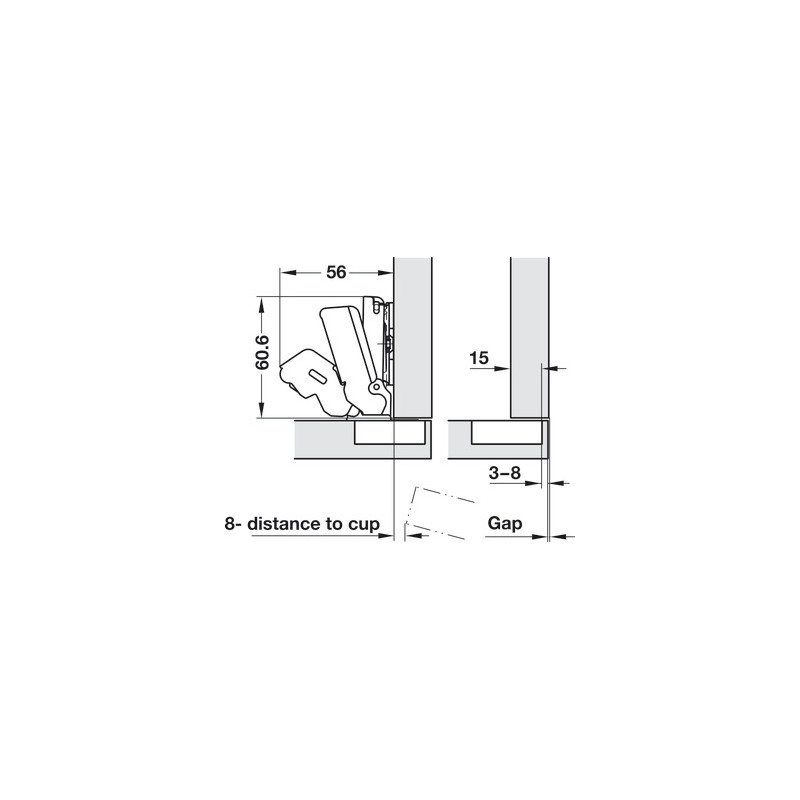

Hafele 329 Concealed Hinge, Salice Push, 155D/165D, Full Overlay

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hafele 329 Concealed Hinge, Salice Push, 155D/165D, Full Overlay

Features

Developed to meet the market trend of handle-less furniture
Self-opening hinges and release devices that can easily be mounted to your furniture
Allows for a very "clean" design appearance
Reverse-spring hinges help "PUSH" the door open
Nearly complete automatic opening of the door
Zero offset for use with internal pull outs or extending trays

Specifications

Version: With automatic opening mechanism (Push)
Concealed hinge version: full overlay
Crank type: High Cranked
For door material: wood
Door processing for assembly: with cup drilling
Material: Cup: Zinc alloy, Hinge arm: Steel
Color/finish: nickel plated
Opening angle: 165D
Cup drilling depth: 11 mm
Cup drilling: 35 mm
Cup fixing: for screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment -1.5-4.5 mm, Height adjustment +or- 2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
Installation: Door on cabinet with slide-on system A or quick fixing system SM

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government,
Retail & Strip Malls
Multifamily & Mixed-Use
