Hardware Resources 500.0U22.75 Standard Duty Pie Corner Cam Adjustable Self-close Hinge with Dowels

View larger

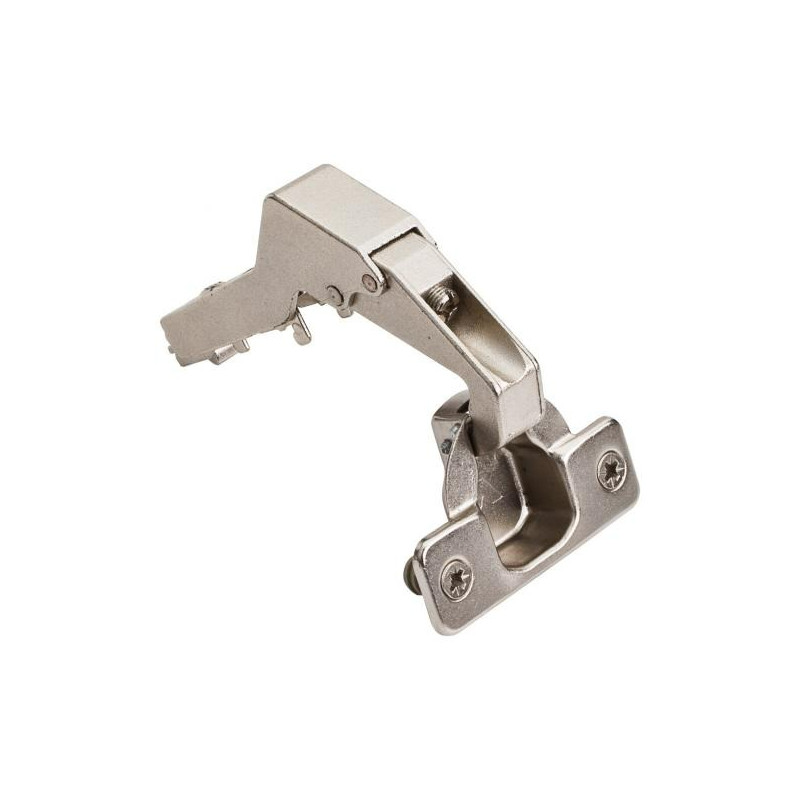

Hardware Resources 500.0U22.75 HR MAX Standard Duty Self-Close Hinge w/ Dowel, Pie Corner

Model: 500.0U22.75

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Use With:-

Details: Hardware Resources 500.0U22.75 HR MAX Standard Duty Self-Close Hinge w/ Dowel, Pie Corner

Features

HR Max = Quality backed by Lifetime warranty
Standard Duty European Hinge with the performance you need and competitive price point
Hinge and plate provide 6-way adjustability
Compatible with 400 series mounting plates
6-Way adjustability: Horizontal, depth and vertical with plate

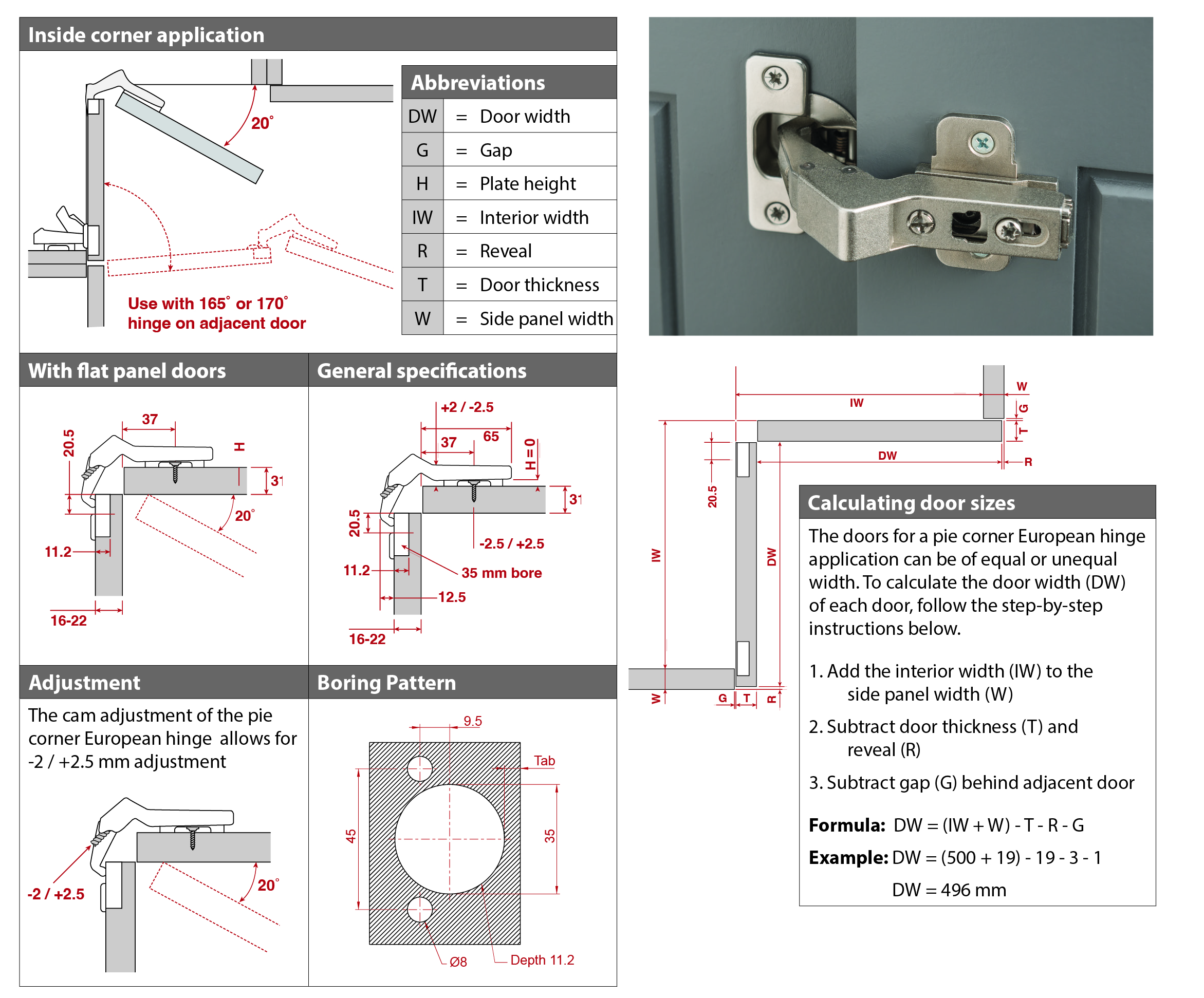

Specifications

Closing: Self-close
Hinge Cup Bore Depth: 11.2 mm
Arm Type: Pie Corner
Hinge Type: European
Mount Centers: 45 mm
Cabinet Type: Faceframe or Frameless
Pivot Type: Dual
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 105 Degree
Overlay: Pie Corner
Hinge Crank Amount: 18 mm
Overlay Adjustment: +2 mm, -2 mm
Depth Adjustment: +3 mm, -2 mm
Adjustment Type: Cam
Brand: HR Max
Series: 500 Series
Finish: Polished Nickel
Overall Length: 65 mm
Hinge Cup Diameter: 35 mm
Hinge Dowels: Press-in
Material: Steel
Installation: Press-in 8 mm Dowels
Mount Type: Press-in

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
