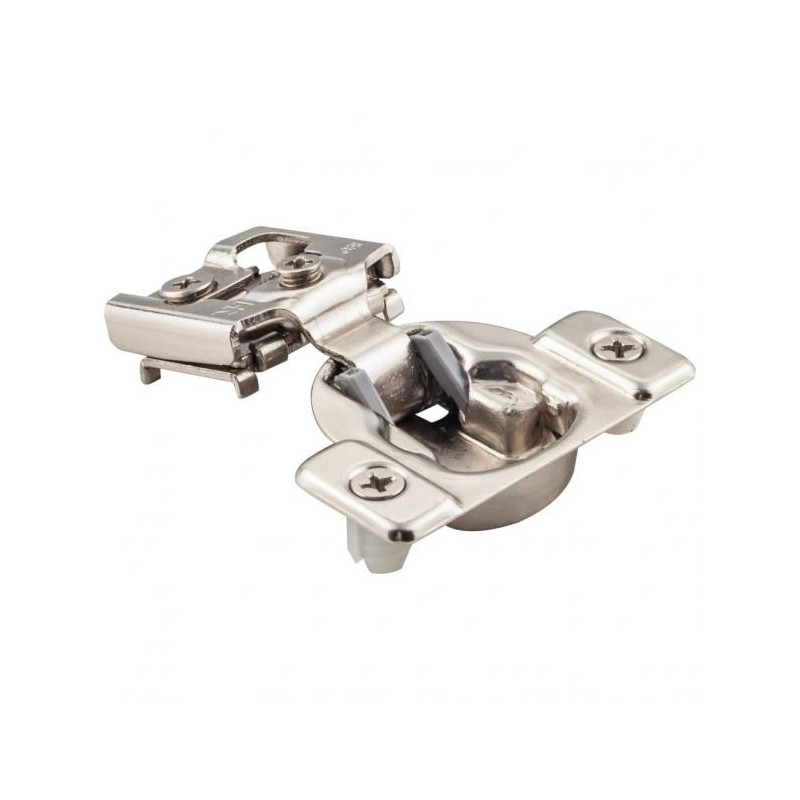

Hardware Resources 6390 Series Self-close Compact Hinge with Press-in 8 mm Dowels

Model:

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 6390 Series Self-close Compact Hinge with Press-in 8 mm Dowels

Features

Patent pending spring sleeves reduce friction and wear
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
For face frame applications
Single pivot point
6-way adjustability
Compatible with 7390 Series self-close hinges
Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
Cold rolled steel with nickel plating
45 mm boring pattern
Compatible with 7390 Series soft-close hinges
#7 × 5/8" pan washer head screw (7X0580WCQ) recommended

Specifications

Closing: Self-close
Hinge Cup Bore Depth: 11.2 mm
Hinge Type: Compact
Mount Centers: 45 mm
Recommended Screws: 7 × 5/8" pan washer head screw (7X0580WCQ)
Adjustable: Yes
Type: Faceframe
Pivot Type: Single
Degree of Opening: 105 degree
Hinge Dowels: Press-in
Overlay Adjustment: +2 mm, -2 mm
Adjustment Type: Cam
Brand: Hardware Resources
Series: 6390 Series
Finish: Polished Nickel
Hinge Cup Diameter: 35 mm
Material: Steel
Installation: Screw
Mount Type: Press-in
Warranty Period: Limited Lifetime

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
