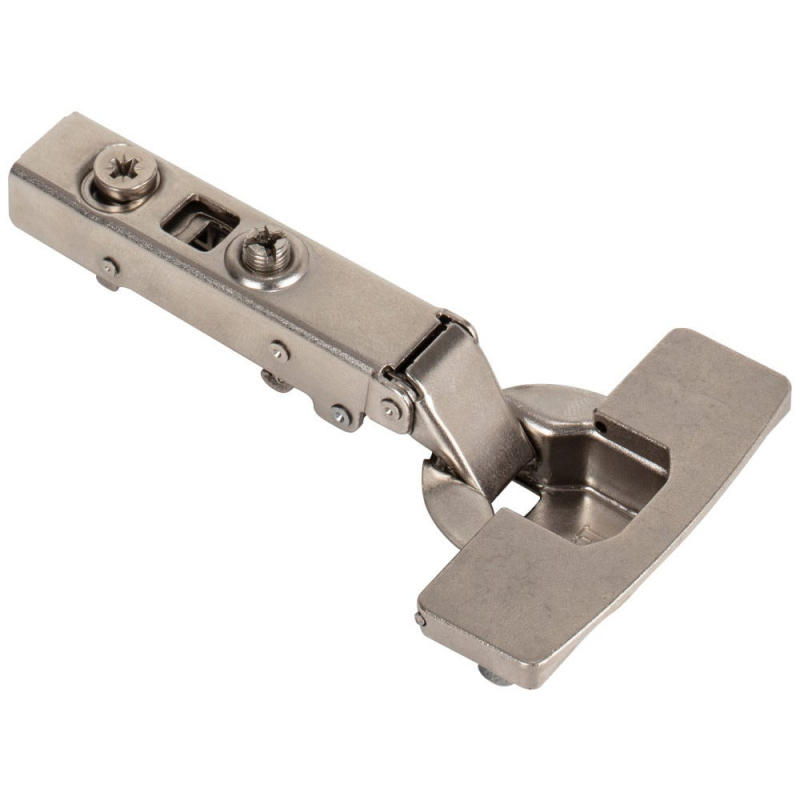

Hardware Resources 700.L110.00 HR MAX Heavy Duty Full Overlay Soft-Close Hinge w/ Lever-Top Dowel

Model: 700.L110.00

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 700.L110.00 HR MAX Heavy Duty Full Overlay Soft-Close Hinge w/ Lever-Top Dowel

Features

HR Max = Quality backed by Lifetime warranty
Lever-top provides toolless installation and removal
Heavy duty spring and patented linkage system
All metal concealed damper provides a life time of worry-free use
2-stop action
0 mm Crank
Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
Hinge and plate provide 6-way adjustability
Cold rolled steel with nickel plating
45 mm boring pattern
Compatible with 600 Series Plates

Specifications

Closing: Soft-close
Cycles: 100,000+
Hinge Cup Bore Depth: 11.2 mm
Arm Type: Straight Arm
Hinge Type: European
Mount Centers: 45 mm
Cabinet Type: Faceframe or Frameless
Pivot Type: Dual
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 110 Degree
Overlay: Full
Hinge Crank Amount: 0 mm
Overlay Adjustment: +2 mm, -2 mm
Depth Adjustment: +3 mm, -2 mm
Adjustment Type: Cam
Brand: HR Max
Series: 700 Series
Finish: Nickel
Overall Length: 118 mm
Width: 59 mm
Hinge Cup Diameter: 35 mm
Hinge Dowels: Lever-Top
Material: Steel
Patent US: Patent Pending
Certification: Grade 2 ANSI/BHMA Certified to ANSI 100,000 Cycles
Mount Type: Lever-Top Dowels
Warranty Period: Limited Lifetime

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
