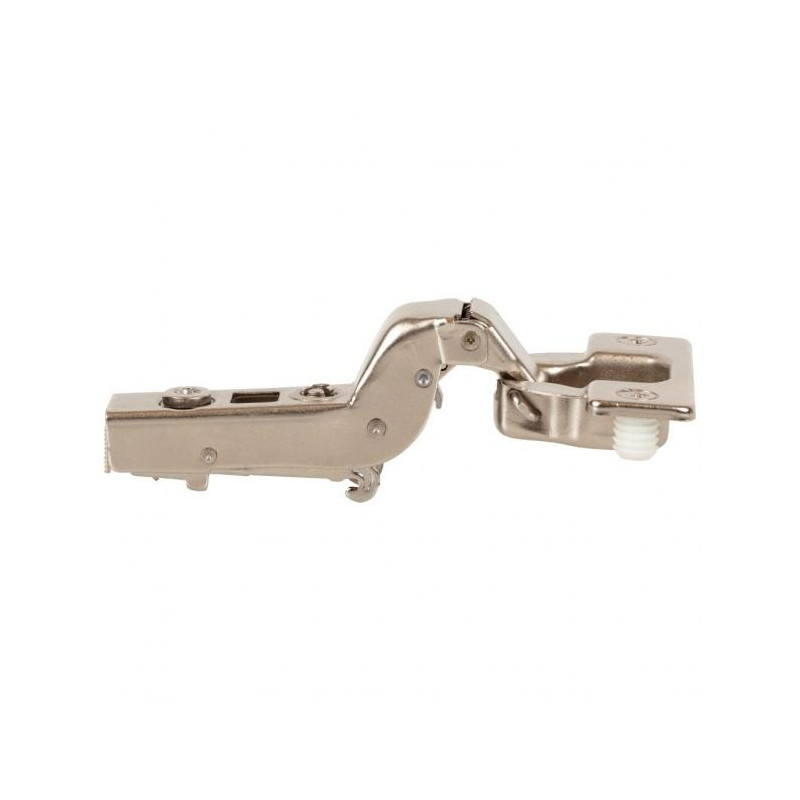

Hardware Resources 725.0280.25 Heavy Duty Self-close Hinge with Press-in 8 mm Dowels

View larger

Hardware Resources 725.0280.25 HR MAX Heavy Duty Self-Close Hinge w/ Dowel, Inset

Model: 725.0280.25

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 725.0280.25 HR MAX Heavy Duty Self-Close Hinge w/ Dowel, Inset

Features

HR Max = Quality backed by Lifetime warranty
Heavy duty spring and patented linkage system
All metal concealed damper provides a life time of worry-free use
Woodwork Institute Listed Product
Hinge and plate provide 6-way adjustability
15 mm Crank
Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
2-stop action
Cold rolled steel with nickel plating
Compatible with 600 Series Plates

Specifications

Closing: Self-close
Cycles: 50,000+
Hinge Cup Bore Depth: 11.2 mm
Arm Type: Full Cranked
Hinge Type: European
Inset: Full
Mount Centers: 45 mm
Cabinet Type: Faceframe or Frameless
Pivot Type: Dual
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 110 Degree
Hinge Crank Amount: 15 mm
Overlay Adjustment: +2 mm, -2 mm
Depth Adjustment: +3 mm, -2 mm
Adjustment Type: Cam
Brand: HR Max
Series: 725 Series
Finish: Polished Nickel
Overall Length: 68 mm
Hinge Cup Diameter: 35 mm
Hinge Dowels: Press-in
Material: Steel
Patent: 8,819,897 B2
Certification: ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012, Woodwork Institute
Installation: Press-in 8 mm Dowels
Mount Type: Press-in

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
