KABA Simplex 1000 Series Cipher Mechanical Keyless Pushbutton Door Lock with Knob

10

PLEASE NOTE: "Prepped for" Core options do not include cylinder

$247.98

47% Off

$468.50

?
?

KABA Simplex 1000 Series Cipher Mechanical Keyless Pushbutton Door Lock with Knob

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed for left-hand doors; easily field reversible
  • Economical: A cost effective access control solution

Operation Modes

  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).

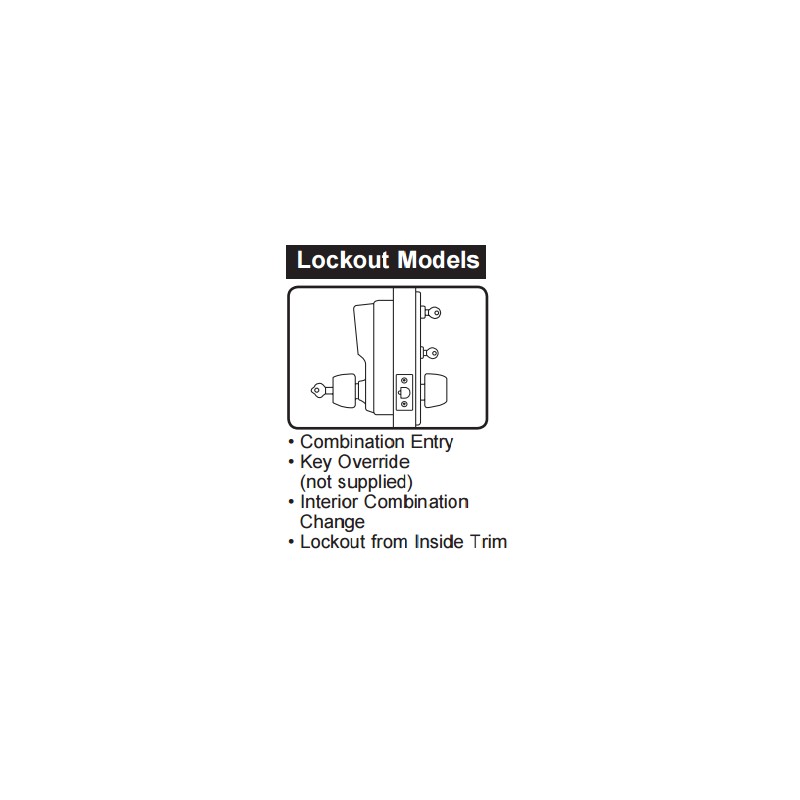

  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.

Specifications

Construction
Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
Numeric Keypad
Vandal resistant, solid metal pushbuttons
Handing
Factory-handed for left-hand doors; easily field reversible
Backset
2¾" (70 mm), 2⅜" (60 mm)
Latch
½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended
5" (127 mm)
Strike
Standard strike plate; ASA strike plate
Door Preparation
Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required
Door Thickness
1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
Durability
D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating
3-hour UL/ULC fire rating for "A" labeled doors
Warranty
3-year warranty
Outside Height
7"
Depth
3-13⁄16"
Includes
Thumb or Key Turn Passage Set
Inside Height
9"
Latch Front Size
1" by 2/ ¼"
Latch Length
1/2"
Skus
1U140
Type
Mechanical, Standard
Weight
8.00lbs
Width
3"

Key Override

  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Standard Finishes
Satin Chrome 26D (626), Antique Brass 05 (609)
Optional Finishes
Bright Brass 03 (605), Bright Chrome 026 (625)

Items Supplied with the Lock

  • Installation Manual
  • Full-Scale Template
  • Required Installation Hardware

Notes

  • 5 and 6-pin Medeco/ASSA/Abloy cylinders require a special knob spacer (included in package)
  • Knob locks are factory-handed for left-hand operation unless otherwise pre-arranged with manufacturing facility

Kaba products have been securing the thoughts and belongings of tenants, families, and business owners since 1862. Kaba's tagline is "beyond security" which means their products offer the highest standards of safety as well as top quality designs and innovations to exceed customer satisfaction.

The KABA Simplex 1000 Series Mechanical Keyless Pushbutton Door Lock with Knob offers a simple and easy to use way to control access between public and private areas in your office, factory, or corporate location. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Kaba Simplex Comparison Table

Simplex Mechanical Pushbutton Locks50001000
EE1000
L1000
8100
2015300062007100LD450
LD470
AccessPIN Access (Single User)
Mechanical Key Override
Locking DevicesCylindrical Latch
Mortise (ASM)
Exit Trim
AR Latch
Tubular Latch
Tubular Deadbolt
Auxilary Latch
Mechanical FeaturesNo Wire Installation
No Computer Programming
No Software Programming
Mechanical Key Override
Interchangeable Core (Best)
Removable Core (Large Format)
Removable Mortise Cylinder
Key-in-Lever
Non-handed (Field Reversible)
Vandal Resistant Clutch

Fits 1 3/8" to 2 1/4" *
No Batteries
Indoor/Outdoor (Approved)
Latch Holdback
Passage
Lockout/Privacy
Programmed at Keypad
Various Finishes Available
Warranty Certification3-Year Warranty
1-Year Warranty
BHMA Grade 1 Certified
3 Hr UL/ULC Fire Rated Latch
ADA Compliant Levers

* 8100 and EE1000 series fit 1 3/4" to 2 1/4" door thickness

* L1076 model fits 1 3/4" door thickness only

* LD series fit 1 3/8" to 2 1/2" door thickness

Available Model Numbers and Combinations

Model/SKUAttributes

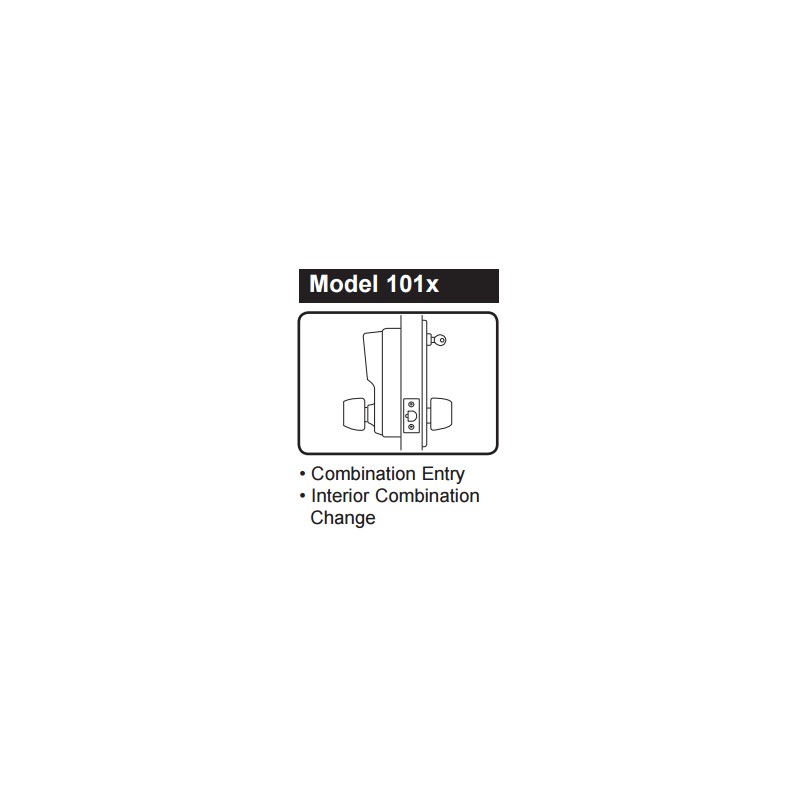

1012M05LO Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Antique Brass, Lockout
1032C05LO Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Antique Brass, Lockout
1012M026 Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Bright Chrome, None
1032C026 Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Bright Chrome, None
1012M026LO Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Bright Chrome, Lockout
1032C026LO Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Bright Chrome, Lockout
1012M03 Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Bright Brass, None
1032C03 Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Bright Brass, None
1012M03LO Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Bright Brass, Lockout
1032C03LO Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Bright Brass, Lockout
1012R26D Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Sargent, Satin Chrome, None
1032M26D Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Satin Chrome, None
1012R26DLO Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Sargent, Satin Chrome, Lockout
1032M26DLO Combination & Passage, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Medeco/ASSA/Yale, Satin Chrome, Lockout
1012R05 Combination Only, Cylindrical 1/2" Throw Latch, 2 3/8" Backset, Prepped for R/C Sargent, Antique Brass, None

View All Model Numbers and Options
