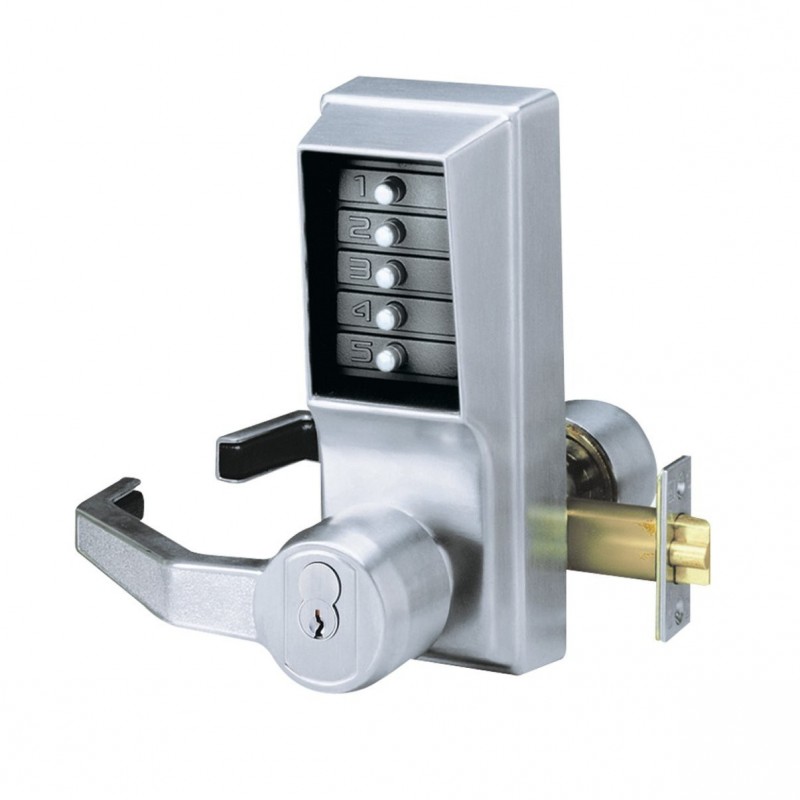

KABA Simplex L1000 Series Cipher Mechanical Keyless Pushbutton Combination Door Lock with Lever

L

PLEASE NOTE: "Prepped for" Core options do not include cylinder

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$332.79

43% Off

$584.50

Save even more!

QuantityDiscount
1+ $332.79 (43% Off)
3+ $326.84 (44% Off)
7+ $320.10 (45% Off)

?
?
?

Details: KABA Simplex L1000 Series Cipher Mechanical Keyless Pushbutton Combination Door Lock with Lever

The Kaba Simplex L1000 Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 is single code mechanical push-button combination door lock. The lock is easy to install and features a long lasting battery. Program it easily without having to remove it from the door. This lock durable and weather-proof is ideal for any work place, factory, or office.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

No Battery
Fully mechanical lock eliminates the material and labor expense of battery replacements
Number of Codes
Single access codeÑone easy-to-manage code for all users
Programming
Lock is easily programmed via keypad without removing lock from the door
Handing
Factory-handed; not field reversible
Key Override (Optional)
Small format interchangeable cores, large format removable cores
Economical
A cost effective access control solution

Access Control

Mechanical pushbutton lockÑeliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress

Operation Modes

  • Pushbutton Access
  • Passage (select models)Ñallows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Privacy (select models)Ñdisables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
  • Simplex Mechanical Access Control Locks
  • An alternative to traditional keyed locksets. Classroom/storeroom function, no code required for egress. Include ASA and standard strike. Require no batteries. Key override SFIC (cylinder not included) accepts Best and equivalent SFIC cylinders.
  • 1 user code
  • For 1" to 2?"-thick doors; 2?" backset
  • Programmable Locks, Push Button (1000 Series)
  • Measure 9L (inside) × 3 1Ú8W × 3-3Ú16"D. Latch length is ?". Retrofit existing ASA 161 door preps.
  • 3-hr. UL Fire Rated; ADA Compliant
  • Cores are not included with key override function
  • All Items are supplied with Installation Manual, A Full-Scale Template and the Required Installation Hardware.

Product Specifications

Locking Device Options

  • Cylindrical ?" (13mm) throw latch, floating face plate 2?" (70mm) backset.
  • Cylindrical ?" (13mm) throw latch, floating face plate 2" (60mm) backset.
  • Cylindrical ?" (19mm) throw latch, beveled face plate 2?" (70mm) backset.

Mechanical Features

Construction
Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
Locking Device
Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Numeric Keypad
Vandal resistant, solid metal pushbuttons
Handing
Factory-handed; not field reversible
Standard Finishes
Satin Chrome 26D (626), Antique Brass 05 (609)
Optional Finishes
Bright Brass 03 (605), Bright Chrome 026 (625)
Backset
2 ?" (70 mm), 2 ?" (60 mm)
Latch
?" (13 mm) throw latch, ?" (19 mm) throw latch (optional)
Minimum Stile Recommended
5" (127 mm)
Weight
8.25 lbs. (3.7 kg)
Strike
Standard strike plate; ASA strike plate
Depth
3-13Ú16"
Hand
Left or Right Handed
Includes
Lever
Inside Height
9"
Item
Pushbutton Access Control
Keying
Standard
Latch Front Size
1" by 2?"
Outside Height
7"
Skus
1U140
Type
Mechanical, Standard
Width
3"

Key Override

Interchangeable Cores
Small formatÑBest and equivalents (6 or 7-pin length); core not included
Removable Cores
Large formatÑMedeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included

Installation

Door Preparation
Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes
Door Thickness
Pre-assembled to accommodate 1 ?" (41mm) to 1 ?" (48mm) doors. Hardware included to cover door thickness applications:1 ?" (35mm) to 1?" (38mm), 2" (51mm) to 2 ?" (57mm)

Certification and Testing

Accessibility Standard
Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability
D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating
3-hour UL/ULC fire rating for "A" labeled doors
Warranty
3-year warranty

Downloads

Kaba Simplex Comparison Table

Simplex Mechanical Pushbutton Locks50001000
EE1000
L1000
8100
2015300062007100LD450
LD470
AccessPIN Access (Single User)
Mechanical Key Override
Locking DevicesCylindrical Latch
Mortise (ASM)
Exit Trim
AR Latch
Tubular Latch
Tubular Deadbolt
Auxilary Latch
Mechanical FeaturesNo Wire Installation
No Computer Programming
No Software Programming
Mechanical Key Override
Interchangeable Core (Best)
Removable Core (Large Format)
Removable Mortise Cylinder
Key-in-Lever
Non-handed (Field Reversible)
Vandal Resistant Clutch

Fits 1 3/8" to 2 1/4" *
No Batteries
Indoor/Outdoor (Approved)
Latch Holdback
Passage
Lockout/Privacy
Programmed at Keypad
Various Finishes Available
Warranty Certification3-Year Warranty
1-Year Warranty
BHMA Grade 1 Certified
3 Hr UL/ULC Fire Rated Latch
ADA Compliant Levers

* 8100 and EE1000 series fit 1 3/4" to 2 1/4" door thickness

* L1076 model fits 1 3/4" door thickness only

* LD series fit 1 3/8" to 2 1/2" door thickness

Available Model Numbers and Combinations

Internet #: 17752

Model/SKUAttributes
LL1011R3 Left Handed or Left Hand Reverse, Combination Only, 1/2" Throw Latch, Floating, 2 3/4" Backset, Prepped for R/C Sargent, Bright Brass
LL1072B5 Left Handed or Left Hand Reverse, Combination, Override, & Privacy, 1 3/4" (44mm) door thickness only, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for Best & Equivalent, Antique Brass
LR1042S26 Right Handed or Right Hand Reverse, Combination, Key Override & Passage, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for R/C Schlage, Bright Chrome
LL1011M5 Left Handed or Left Hand Reverse, Combination Only, 1/2" Throw Latch, Floating, 2 3/4" Backset, Prepped for R/C Medeco/ASSA/Yale, Antique Brass
LL1072B26 Left Handed or Left Hand Reverse, Combination, Override, & Privacy, 1 3/4" (44mm) door thickness only, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for Best & Equivalent, Bright Chrome
LR1042S3 Right Handed or Right Hand Reverse, Combination, Key Override & Passage, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for R/C Schlage, Bright Brass
LL1072C26D Left Handed or Left Hand Reverse, Combination, Override, & Privacy, 1 3/4" (44mm) door thickness only, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Satin Chrome
LR1031B26D Right Handed or Right Hand Reverse, Combination & Passage, 1/2" Throw Latch, Floating, 2 3/4" Backset, Prepped for Best & Equivalent, Satin Chrome
LR1076R26D Right Handed or Right Hand Reverse, Combination, Override, & Privacy, 1 3/4" (44mm) door thickness only, 3/4" Throw Latch, Beveled, 2 3/4" Backset, 1 3/4" (44mm) door thickness only, Prepped for R/C Sargent, Satin Chrome
LL1011M26 Left Handed or Left Hand Reverse, Combination Only, 1/2" Throw Latch, Floating, 2 3/4" Backset, Prepped for R/C Medeco/ASSA/Yale, Bright Chrome
LL1072B3 Left Handed or Left Hand Reverse, Combination, Override, & Privacy, 1 3/4" (44mm) door thickness only, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for Best & Equivalent, Bright Brass
LR1042C5 Right Handed or Right Hand Reverse, Combination, Key Override & Passage, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Antique Brass
LL1011M3 Left Handed or Left Hand Reverse, Combination Only, 1/2" Throw Latch, Floating, 2 3/4" Backset, Prepped for R/C Medeco/ASSA/Yale, Bright Brass
LL1072S5 Left Handed or Left Hand Reverse, Combination, Override, & Privacy, 1 3/4" (44mm) door thickness only, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for R/C Schlage, Antique Brass
LR1042C26 Right Handed or Right Hand Reverse, Combination, Key Override & Passage, 1/2" Throw Latch, Floating, 2 3/8" Backset, Prepped for R/C Corbin Russwin, Bright Chrome

View All Model Numbers and Options
