Reduced price! Kaba 814R6C26D Mortise Lock w/ Lever, Combination Entry, Key Override, Passage

View larger

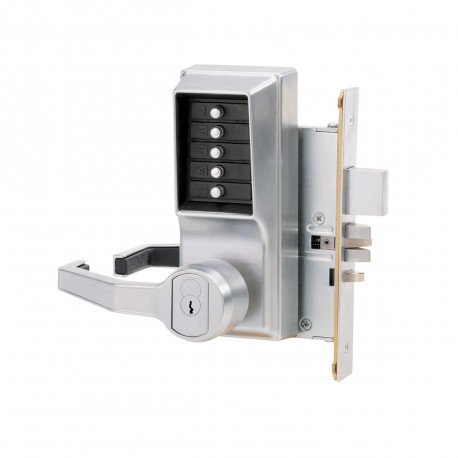

Kaba 814R6C26D Mortise Lock w/ Lever, Combination Entry, Key Override, Passage

Model: R8146M26D

Browse All Combinations

Handing: Right Handed
Deadbolt Option: Without Deadbolt
Finish: Satin Chrome

edit options

PLEASE NOTE: "Prepped for" Core options do not include cylinder

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Kaba 814R6C26D Mortise Lock w/ Lever, Combination Entry, Key Override, Passage

The KABA Simplex 8100 Series features a single code access system. This means that keys and key cards can be forgotten and all you will need to remember is one easy code. This code can be programmed after installation, and a simple turn knob locks or unlocks the device from the inside. A lockout deadbolt, also on the inside, ensures that no code can be used to gain access. All KABA Simplex 8100's can be programmed after installation.

Features

Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacementsLocking
Device Options: Mortise with 1" (25 mm) deadbolt, 3/4" (19 mm) two-piece anti-friction latchMortise with 3/4" (19 mm) two-piece anti-friction latch
Number of Codes: Single access code-one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Factory-handed; not field reversible
Key Override: Small format interchangeable cores, large format removable cores. Cores are not included

Operation Modes

Pushbutton Access
Passage-allows access without using the lock entry code.Feature activated from the inside with a thumbturn or key (included with allpassage feature models).
Deadbolt (optional)-added security of 1" deadbolt. Access permitted bycombination or key override.
Lockout-disables the lock from the inside so that the entry codescannot be used to gain access. Access is permitted using key override.
Economical: A cost effective access control solution

Mechanical Features

Construction: Cast front housing; unified trim plate; fixed ADA-compliant levers
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible
Standard Finish: Satin Chrome 26D (626)
Backset: 2-3/4" (70 mm)
Latch: 3/4" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
Minimum Stile Recommended: 5" (127 mm)
Weight: 9.8 lbs. (3.7 kg)
Strike: 4" (124 mm) L × 1/4" (32 mm) W × 1/4" (6 mm) D Deadbolt/Latch mortise strike plate

Installation

Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
Door Thickness: 1-3/4" (44 mm) to 2-1/4" (57 mm)
Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change tool, and required installation hardware

Certification And Testing

Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty

The KABA Simplex 8100 Series Mechanical Keyless Pushbutton Mortise Door Lock offers a simple and easy to use way to control access between public and private areas in your office, factory, or corporate location. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Downloads

Kaba Warranty

Kaba Simplex Comparison Table

Simplex Mechanical Pushbutton Locks		5000	1000 EE1000	L1000 8100	2015	3000	6200	7100	LD450 LD470
Access	PIN Access (Single User)	✔	✔	✔	✔	✔	✔	✔	✔
Access	Mechanical Key Override	✔	✔	✔		✔
Locking Devices	Cylindrical Latch	✔	✔	✔			✔
	Mortise (ASM)	✔		✔
	Exit Trim	✔		✔	✔
	AR Latch					✔
	Tubular Latch							✔	✔
	Tubular Deadbolt							✔
	Auxilary Latch							✔
Mechanical Features	No Wire Installation	✔	✔	✔	✔	✔	✔	✔	✔
	No Computer Programming	✔	✔	✔	✔	✔	✔	✔	✔
	No Software Programming	✔	✔	✔	✔	✔	✔	✔	✔
	Mechanical Key Override	✔	✔	✔		✔
	Interchangeable Core (Best)	✔	✔	✔
	Removable Core (Large Format)	✔	✔	✔
	Removable Mortise Cylinder					✔
	Key-in-Lever	✔
	Non-handed (Field Reversible)	✔	✔			✔	✔	✔	✔
	Vandal Resistant Clutch					✔	✔	✔	✔
	Fits 1 3/8" to 2 1/4" *	✔	✔	✔	✔		✔	✔	✔
	No Batteries	✔	✔	✔	✔	✔	✔	✔	✔
	Indoor/Outdoor (Approved)	✔	✔	✔	✔	✔	✔	✔	✔
	Latch Holdback							✔	✔
	Passage	✔	✔	✔		✔			✔
	Lockout/Privacy	✔	✔	✔		✔			✔
	Programmed at Keypad	✔	✔	✔	✔	✔	✔	✔	✔
	Various Finishes Available	✔	✔	✔		✔	✔	✔
Warranty Certification	3-Year Warranty	✔	✔	✔
	1-Year Warranty				✔	✔	✔	✔	✔
	BHMA Grade 1 Certified	✔							✔
	3 Hr UL/ULC Fire Rated Latch	✔	✔	✔					✔
	ADA Compliant Levers	✔		✔					✔

* 8100 and EE1000 series fit 1 3/4" to 2 1/4" door thickness

* L1076 model fits 1 3/4" door thickness only

* LD series fit 1 3/8" to 2 1/2" door thickness

Available Model Numbers and Combinations

Model/SKU	Attributes
814LR8S5	Left Hand Reverse, With Deadbolt, Antique Brass
814LR8B5	Left Hand Reverse, With Deadbolt, Antique Brass
814LR8R5	Left Hand Reverse, With Deadbolt, Antique Brass
814L6M5	Left Handed, Without Deadbolt, Antique Brass
814L6C5	Left Handed, Without Deadbolt, Antique Brass
814L6S5	Left Handed, Without Deadbolt, Antique Brass
814L6B5	Left Handed, Without Deadbolt, Antique Brass
814L6R5	Left Handed, Without Deadbolt, Antique Brass
814L8M5	Left Handed, With Deadbolt, Antique Brass
814L8C5	Left Handed, With Deadbolt, Antique Brass
814L8S5	Left Handed, With Deadbolt, Antique Brass
814L8B5	Left Handed, With Deadbolt, Antique Brass
814L8R5	Left Handed, With Deadbolt, Antique Brass
814R6M5	Right Handed, Without Deadbolt, Antique Brass
814R6C5	Right Handed, Without Deadbolt, Antique Brass
