Reduced price! Locknetics M Satin Stainless Steel Mag Lock W/ Aluminum Brackets

View larger

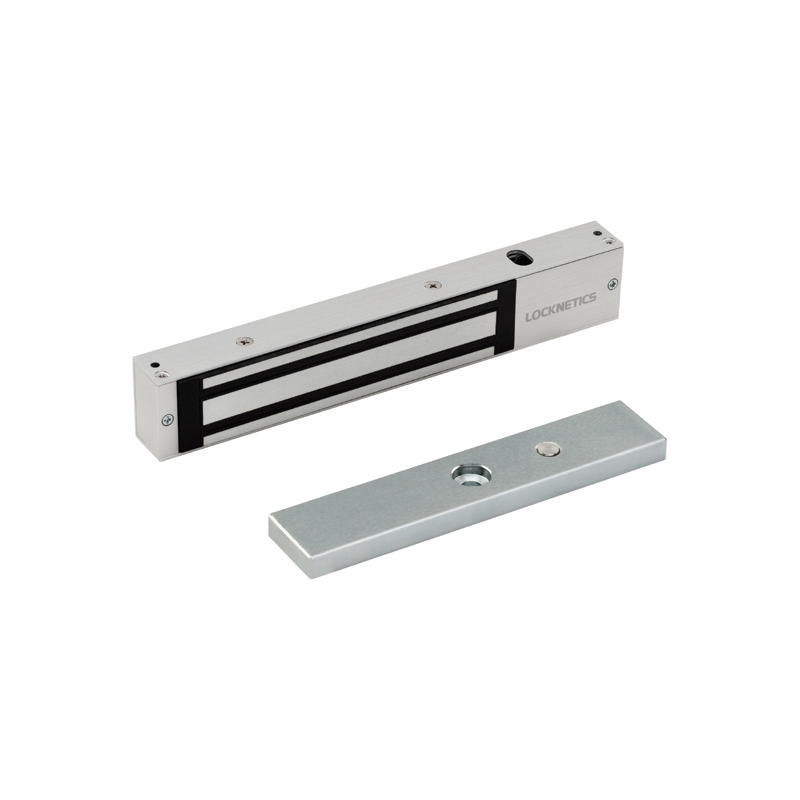

Locknetics MG Satin Stainless Steel Mag Lock, Surface Mount

Model: M

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Locknetics MG Satin Stainless Steel Mag Lock, Surface Mount

The MG Series of surface mount electromagnetic locks provides a cost competitive, slim profile and dependable solution for a variety of applications. Designed for up to 600 lb. or 1200 lb. holding strength.

Features

Bi-colored LED sensor provides easy lock status identification.
Adjustable mounting plate for quick, simple installation.
Removable PCB for easy installation.
Built-in voltage spike suppressor.
Field selectable 12/24 VDC.

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retails & Strip Malls
Multifamily & Mixed-Use

Specifications

UL10C, listed
UL294, listed
Indoor use only

Downloads

Available Model Numbers and Combinations

Model/SKU	Attributes
MG60012	Not Included, Standard 600 lb, 12 VDC, Not Included
MG60012FP50	Not Included, Standard 600 lb, 12 VDC, 1/2"
MG60012FP63	Not Included, Standard 600 lb, 12 VDC, 5/8"
MG60024	Not Included, Standard 600 lb, 24 VDC, Not Included
MG60024FP50	Not Included, Standard 600 lb, 24 VDC, 1/2"
MG60024FP63	Not Included, Standard 600 lb, 24 VDC, 5/8"
MG600-ZBK12	Z-Bracket, Standard 600 lb, 12 VDC, Not Included
MG600-ZBK12FP50	Z-Bracket, Standard 600 lb, 12 VDC, 1/2"
MG600-ZBK12FP63	Z-Bracket, Standard 600 lb, 12 VDC, 5/8"
MG600-ZBK24	Z-Bracket, Standard 600 lb, 24 VDC, Not Included
MG600-ZBK24FP50	Z-Bracket, Standard 600 lb, 24 VDC, 1/2"
MG600-ZBK24FP63	Z-Bracket, Standard 600 lb, 24 VDC, 5/8"

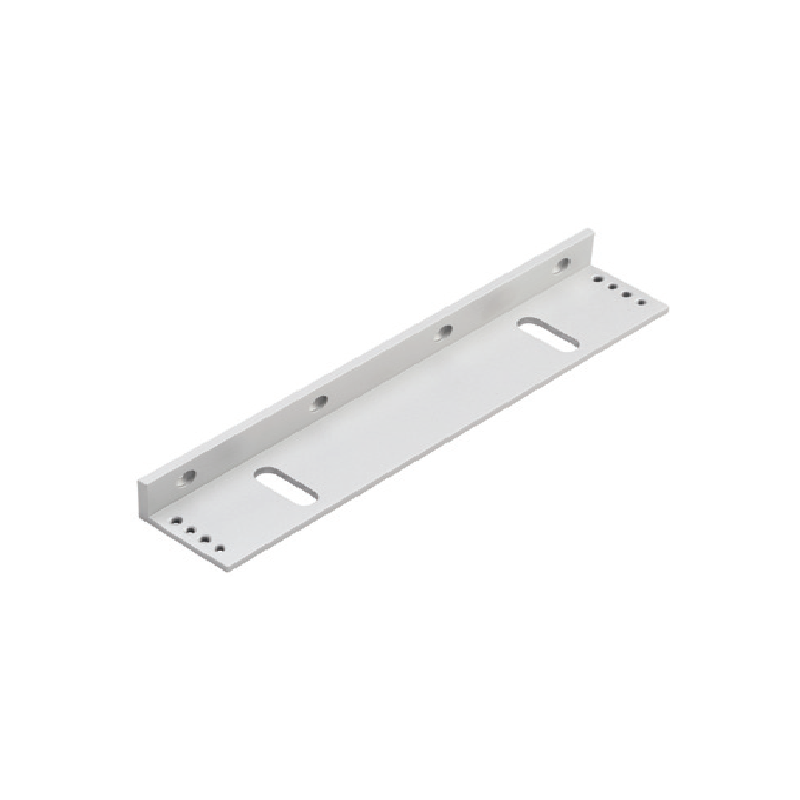

MG600-LBK12	L-Bracket, Standard 600 lb, 12 VDC, Not Included
MG600-LBK12FP50	L-Bracket, Standard 600 lb, 12 VDC, 1/2"
MG600-LBK12FP63	L-Bracket, Standard 600 lb, 12 VDC, 5/8"
