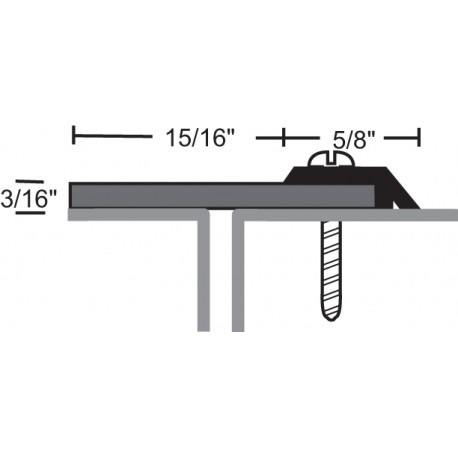

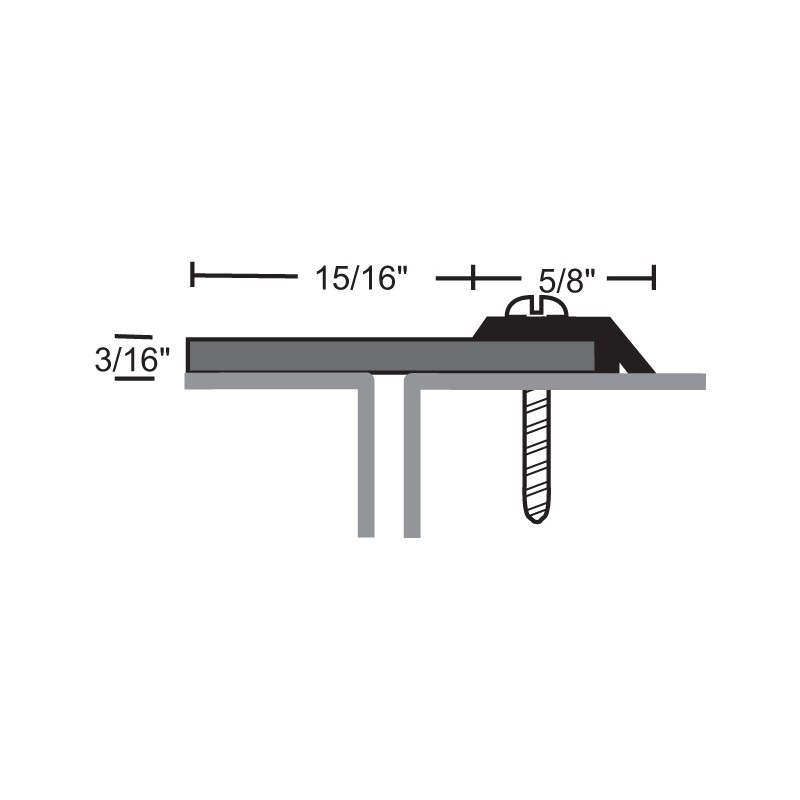

NGP 114 Astragal Weatherstrip

Model: 114

Write a review

Item is normally shipped within 2-3 weeks from manufacturer. Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: NGP 114 Astragal Weatherstrip

Features

Aluminum alloy 6063, T5 temper
Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
Very good abrasion resistance, tensile strength and memory
Flame resistant
Moisture resistant
Temperature range -20°F to 200°F
Good resistance to ozone, sunlight and aging
BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration
#6 × 1" & #6 × 3/4" stainless steel SMS furnished
Screw holes slotted for adjustment
Neoprene is black
Anodized aluminum

Options

Standards

AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

Lite Kits, Glass, Louvers, Door Edges/Astragals Cross Reference

Cross Reference

National Guard Products Warranty

NGP LEED Recycled Content Percentage Chart

	Post-Consumer Recycled %	Pre-Consumer Recycled %
Aluminum Thresholds, Rain Drip Guards	18%	49%
Architectural Bronze Thresholds, Rain Drip Guards	70%	25%
Stainless Steel Thresholds, Rain Drip Guards	25%	3%
Rubber Ramps	0%	0%
Gasketing with Aluminum Retainers	13%	37%
Gasketing with Bronze Retainers	52%	19%
Gasketing with Stainless Steel Retainers	19%	2%
Self-Adhesive Gasketing	0%	0%
Finger Guard 2248	13%	37%
Finger Guard 2252	0%	0%
Metal Edge/Astragal sets (Steel)	25%	3%
Lite Kits & Louvers (Steel)	15%	5%
Aluminum Lite Kits & Louvers	18%	49%
Stainless Steel Lite Kits	25%	3%
Continuous Geared Aluminum Hinges	18%	49%
Stainless Steel Continuous Hinges	25%	3%

Available Model Numbers and Combinations

Model/SKU	Attributes
114NA-84	Anodized Aluminum
114NA-96	Anodized Aluminum
114NDKB-84	Dark Bronze,
114NDKB-96	Dark Bronze,
114NA-12	Anodized Aluminum
114NA-24	Anodized Aluminum
114NA-36	Anodized Aluminum
114NA-48	Anodized Aluminum
114NA-60	Anodized Aluminum,
114NA-72	Anodized Aluminum
114NA-108	Anodized Aluminum,
114NB-12
114NB-24
114NB-36
114NB-48
