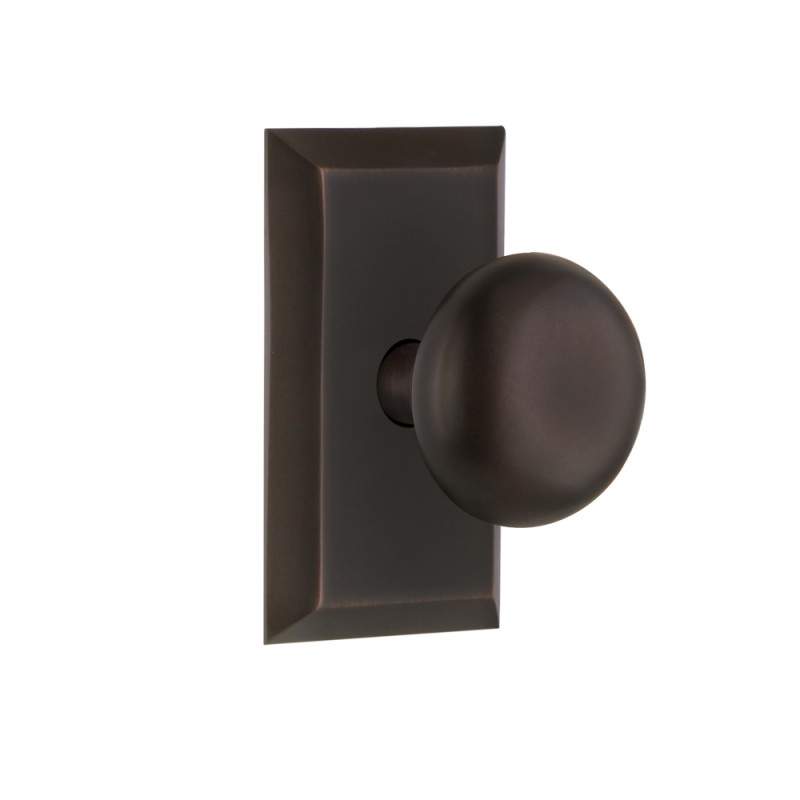

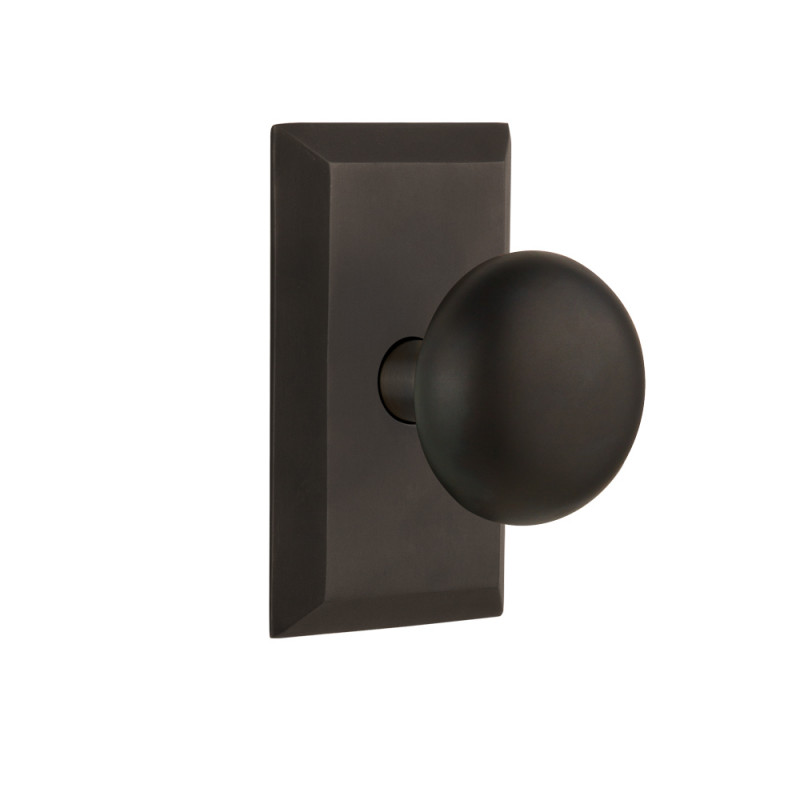

Nostalgic Warehouse STUNYK Studio Plate w/ New York Door Knob

Model:
Part #: 707878

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Nostalgic Warehouse STUNYK Studio Plate w/ New York Door Knob

The Studio plate coordinates well with any architectural style, its shorter length is ideal for bedroom or bath but can be used in any room. Add our New York door knob, with its smooth round shape, for a look that will forever be refined. All Nostalgic Warehouse door knobs are mounted on a solid (not plated) forged brass base for durability and beauty.

Box Contents

Door knob and chosen plate for both sides of door, latch mechanism, standard spindle, strike plate and mounting screws

Features

Solid forged brass plates with genuine lead crystal door knobs for detail and clarity
Passage: Ideal for closets, hallways or rooms where no locking mechanism is needed.
Complete set for one door (both sides)
Perfect for restoration and easy to install on modern pre-drilled doors
Hand assembled in USA
5-year warranty

Specifications

Design Code: STUNYK
Collection: Studio
Category: Door knobs
ADA Rated: No
Finishes Available: Antique Brass, Antique Pewter, Bright Chrome, Oil-Rubbed Bronze, Polished Brass, Satin Nickel, Timeless Bronze
Material: Brass
Door Handing: Non-handed
Backset Options: 2 3/4", 2 3/8"
Assembled In: USA

Dimensions

Long Plate Height: 4"
Long Plate Width: 2.5"
Knob Diameter: 2.125"
Projection: 2.167"
Cross Bore: 2.125"
Door Thickness: 1 3/8" - 1 3/4"

Shipping

Box Size: 5⅜" × 9⅜" × 2¾"
Shipping Weight: 3 lbs

Documentation

Nostalgic Warehouse Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
STUNYK 10 NK AB 238	Passage, 2 3/8", Antique Brass,
STUNYK 10 NK AB 234	Passage, 2 3/4", Antique Brass,
STUNYK 10 NK AP 238	Passage, 2 3/8", Antique Pewter,
STUNYK 10 NK AP 234	Passage, 2 3/4", Antique Pewter,
STUNYK 10 NK BC 238	Bright Chrome, Passage, 2 3/8",
STUNYK 10 NK BC 234	Bright Chrome, Passage, 2 3/4",
STUNYK 10 NK OB 238	Passage, 2 3/8", Oil-rubbed Bronze,
STUNYK 10 NK OB 234	Passage, 2 3/4", Oil-rubbed Bronze,
STUNYK 10 NK PB 238	Passage, 2 3/8", Polished Brass,
STUNYK 10 NK PB 234	Passage, 2 3/4", Polished Brass,
STUNYK 10 NK SN 238	Passage, Satin Nickel, 2 3/8",
STUNYK 10 NK SN 234	Passage, Satin Nickel, 2 3/4",
STUNYK 10 NK TB 238	Passage, 2 3/8", Timeless Bronze,
STUNYK 10 NK TB 234	Passage, 2 3/4", Timeless Bronze,
STUNYK 20 NK AB	Single Dummy, Antique Brass,
