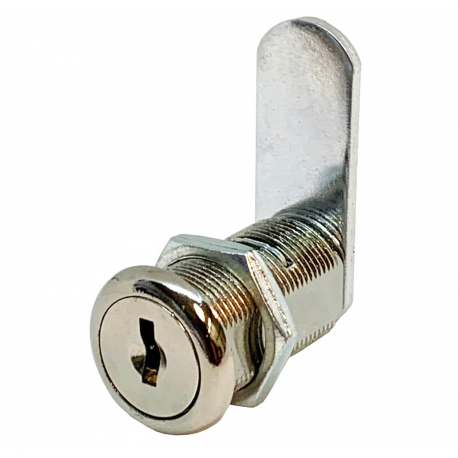

Reduced price! Olympus 953 Cascade Series Cam Lock Disc Tumbler, Cylinder Length - 1 3/16"

View larger

Olympus 953 Cascade Series Cam Lock Disc Tumbler, Cylinder Length - 1 3/16"

Model:

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Olympus 953 Cascade Series Cam Lock Disc Tumbler, Cylinder Length - 1 3/16"

Features

Cam Lock - Cascade Series
5-disc tumbler key system
Will key into CompX/National C8053 or similar disc tumbler products
Locks ship with cylinder installed for faster installation
90 degree cam rotation, key removable in both locked and unlocked position
Cylinder length 1-3/16"
Fits maximum material thickness 7/8"
Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal [E07262]
Ships with one each straight and offset square-drive reversible cams (additional cam sizes available separately)
Includes eyelet spur-washer for more secure mounting and anti-rotation
Mounts in standard 3/4" diameter hole
Patent pending
Additional cylinder lengths available. See items: 954, 955, 960 and 961

Specifications

Keying: Will key together with CompX/National C8053 style disc tumbler locks
Assembly: Ships with body and cylinder assembled for fast and easy installation
ANSI/BHMA: Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
US Patent: Patent pending
Body: Zinc die cast
Cylinder: Zinc die cast, 5 disc tumbler
Standard function: Key removable in locked or unlocked position
Cams: Ships with one straight and one offset cam
Includes: P95-TR trim ring, P95-SPW (anti-rotation) eyelet spur washer, P95-CM-1 1-1/2" long straight cam, P95-CM-2 1-1/8" long with 11/32" offset cam, Fixing nut, cam screw and cam screw washer, 2 change keys

Applications

K-12 Public Schools, Colleges and Universities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Correctional Facilities, Medical Offices, Hospitals
