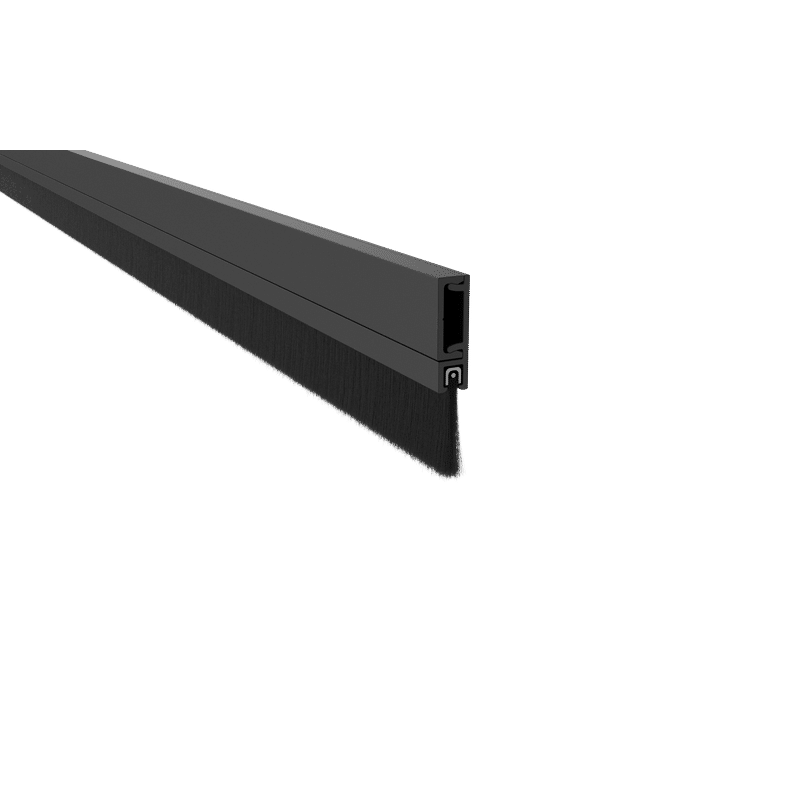

Pemko 29326_NB Door Bottom Sweep w/ Concealed Fastener, 180 Degree Retainer & 5/8" Nylon Brush Seal

Model:

Order $500 worth of Pemko Products and get 30% OFF!

Write a review

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Pemko 29326_NB Door Bottom Sweep w/ Concealed Fastener, 180 Degree Retainer & 5/8" Nylon Brush Seal

Astragal and Meeting Stile seals are used to seal the gap between a pair of doors. The snap covering conceals the fasteners and provides an attractive finished look.

Brush Meeting Stile

When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.
Brush/Meeting Stile Application.
Note: brush should mesh from 1/32" to 1/16".
This meeting stile is supplied with a Nylon Brush ("NB") insert - item number P516062 (available in gray and black).

Ratings

Air Infiltration Tested
BHMA Certified
Smoke Tested - UL1784
Fire Rated - UL10C - Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

Finishes

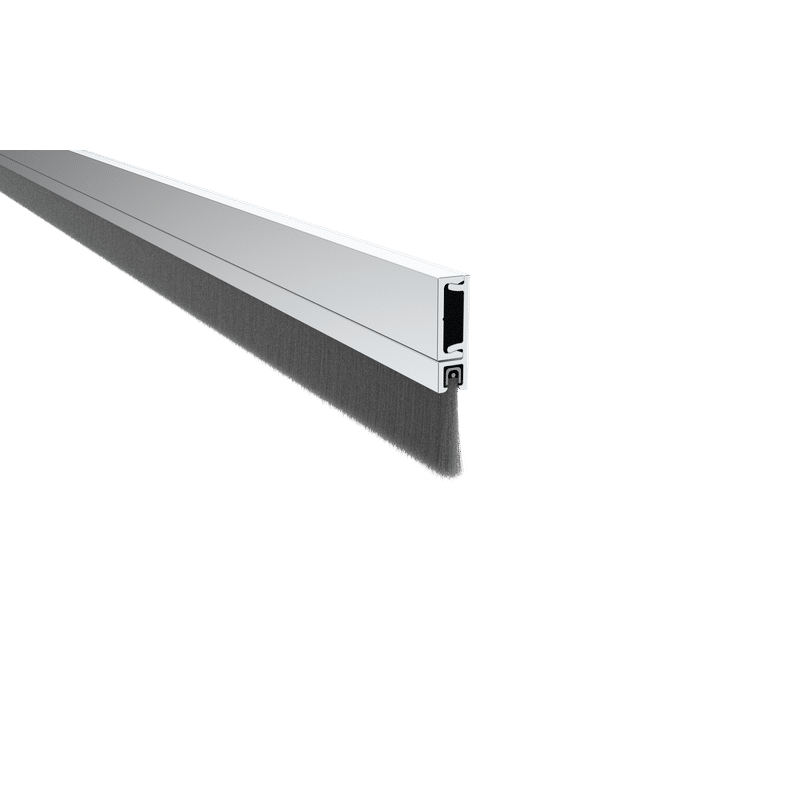

29326CNB: C - Clear Anodized Aluminum with Gray Nylon Brush insert

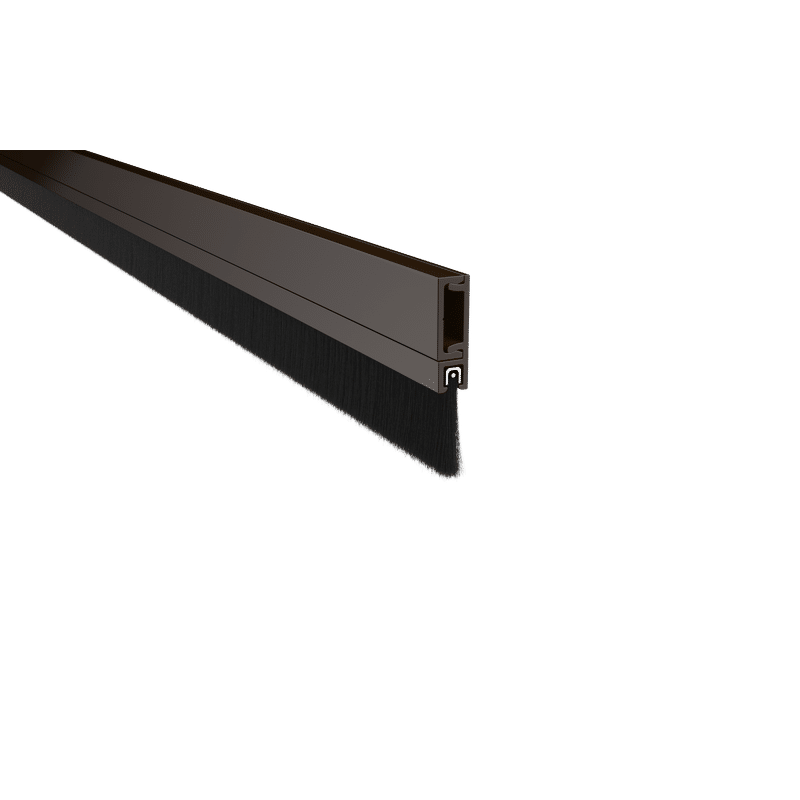

29326DNB: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert

Documentation

Pemko Thresholds & Gasketing

Pemko Thresholds and Gasketing
Pemko Part No.	Description	Hager	NGP	Reese	Draftseal	Zero	KN Crowder	DHSI
151_	Saddle Threshold, 1/4 x 3	418S	411	S263	DS3000	63	---	---
154_	Smooth Top Saddle Threshold, 1/2 x 5	492S	512	S105	DS505*	---	---	---
157_	Transition/Offset Threshold, 1/2" offset x 5 1/2	407S	655	S512	---	104*	---	---
170_	Saddle Threshold, 1/2 x 4	404S	424* / 424FC*	S204* /S424 /S4L	DS400*	---	CT-9	---
171_	Saddle Threshold, 1/2 x 5	412S	425*	S205*	DS500*	8655	CT-10	---
172_	Saddle Threshold, 1/2 x 6	415S	426*	S206*	DS600*	656*	CT-11	---
173_	Saddle Threshold, 3/16 x 2 1/4	436S	410	S225	DS2000	---	CT-31	---
174_	Carpet Divider, 3/8 x 2 1/2	503S*	417*	S266	---	---	---	---
175_	Saddle Threshold, 1/2 x 4	404S*	412	---	---	164*	---	---
176_	Saddle Threshold, 1/2 x 7	476S	427*	S207*	DS700*	6570*	CT-12	---
18/1A	Smooth Surface Threshold, 1/8" thick	676SMIL	408 /818 /8132	BAP18	---	600CP	---	---
18041_NB	Brush Gasketing	893S	9600*</td>	804*	DS163NB	8193A.	---	---
18061_NB	Brush Gasketing	802S	600*	964	DS148*	---	W25	---
18100_NB	Brush Gasketing	801SB*	601*	967	DS149*	---	W24S	---
18137_NB	Brush Gasketing	806SB*	E609	965	DS150*	---	---	---
18175_NB	Brush Gasketing	---	G610	973	DS144P	---	W33S	---
190_	Floor Plate, Adj Threshold Component, 1/4 x 2	440S	8142	232	---	672	---	---
191_	Floor Plate, Adj Threshold Component, 1/4 x 3	445S	8143	233*	---	673	---	---
192_	Floor Plate, Adj Threshold Component, 1/4 x 4	450S	8144	234	---	674	---	---
193_	Floor Plate, Adj Threshold Component, 1/4 x 6 1/8	460S	8146*	236	---	676	---	---
196_	Floor Plate End Support, 1/4 x 1 1/8	484S	8134*	261	---	69	CT-23	---
2005_T	Latching Panic Exit Threshold, 1/2 x 5	520SN	---	S483	DS178N	65	---	---
210APK	Door Shoe with Rain Drip, 1 1/4"	777SNMIL	118N	---	DS210*	---	---	---
211APK	Door Shoe, 1 1/4"	---	313NA*	---	DS211AT	153A	---	---
216APK	Door Shoe with Rain Drip, 1 3/4"	778SNDBA	119NA*	---	DS216*	---	---	---
2173AV	Door Shoe, Triple Fin, 1 3/4"	---	26NA*	---	---	111A-FLO / 111A	---	---
221APK	Door Shoe/Kickplate, 1 3/4"	782SNMIL	99NA	---	DS212*	---	---	---
234APK	Mortise Sweep, 1 3/16"	774SNMIL	112N*	---	DS234	253A	---	---
252_	Half Saddle Threshold , 1/2 x 2	---	321	S470*	DS222*	622	CT-44-1	---
252x226AFGT	Frost Guard Latching Threshold, 1/2 x 4 1/8	515SNMIL	8434S*	---	DS177X4TBAT	---	---	---
252x3_FG	Frost Guard Saddle Threshold, 1/2 x 5 1/18	421S	8425	S282*	DS501TB*	625	CT-45	---
253_	Half Saddle Threshold , 1/2 x 3	433S	322	S283*	DS333*	1673*	CT-45-1	---
253x226_FGT	Frost Guard Latching Threshold, 1/2 x 5 1/8	516SN	8435S	S498	DS177X5TB_T	525	---	---
253x3_FG	Frost Guard Saddle Threshold, 1/2 x 6 1/8	422S	8426	S473	DS601TB*	626	CT-46	---
253x4_FG	Frost Guard Saddle Threshold, 1/2 x 7 1/8	424S	8427	S475	DS701TB	---	---	---
254_	Half Saddle Threshold , 1/2 x 4	432S	327	S284	DS444*	1374*	CT-804	---
2548A	Saddle Threshold, 1/2 x 8	426SMIL	428E* / 428FC*	---	DS800*	---	CT-32	---
254x226_FGV	Frost Guard Latching Threshold, 1/2 x 6 1/8	517SV	8436*	S474	---	---	---	---
254x4_FG	Frost Guard Saddle Threshold, 1/2 x 8 1/8	424S	8428	S478	DS801TB*	---	---	---
255x5_FG	Frost Guard Saddle Threshold, 1/2 x 10 1/8	452S	8430	S481	---	---	---	---
270_	Saddle Threshold, 1/4 x 4	403S	413*	S404	DS4000	544	CT-64	---
271_	Saddle Threshold, 1/4 x 5	413S	513*	S405	DS5000*	545	CT-65	---
272_	Saddle Threshold, 1/4 x 6	417S	613	S406	DS6000	546	CT-66	---
2727A	Transition/Offset Threshold, 1/4" offset x 7	---	659	S714A	---	103A	---	---
273_	Half Saddle, 1/4 x 3	---	315	S814	DS3333*	1545*	---	---
274_	Half Saddle, 1/4 x 4	---	415	S439	DS4444*	239	CT-704	---
2748_	Saddle Threshold, 1/4 x 8	428S	813*	S408	DS8000	548	---	---
276_	Saddle Threshold, 1/4 x 7	430S	713*	S407	DS6666*	547	---	---
2815_M	Magnetic Gasketing	859S*	157M*	574	---	370*	W27	---
285_R	Perimeter Gasketing	861SN*	108N	39	DS341*	1370* /270*/272	W47	---
2891_NB	Perimeter Gasketing for Door Closer Mount	---	701EP	---	---	---	---	---
2891_S	Perimeter Gasketing for Door Closer Mount	---	9700*	---	---	---	---	---
290_S	Companion Gasketing for Door Closer Mount	880S	700E*	655*	---	---	W20S	---
29310_P	Perimeter Gasketing , Concealed Fasteners	885S	170P* /675	129_P	DS113P	---	W32	---
29326_NB	Concealed Fastener Brush Gasketing	882SB	673	---	DS158	---	---	---
296_R	Perimeter Gasketing	880SN*	132N*	49	DS338	---	W16N*	---
297_V	Perimeter Gasketing	896SV	156V	DS75	---	---	---	---
303_PK	Perimeter Gasketing	891SN	---	815	DS103_T	8303A*	W17N*	---
303_S	Perimeter Gasketing	---	155S*	678*	---	8303A*	---	---
305_N	Perimeter Gasketing	872SN	115N* / 127N	103* / DS70	DS142_N*	50	W-5	-
307_V / 308_V	Face-Mount Door Sweep	---	100V*	M15A*	DS140*	3194AA*	W-4	---
315_N	Perimeter Gasketing/Door Sweep	750SN* / 875S*	200N* / 130N*	323*	DS138_N*	139* / 329	W11*	---

Disclaimer: This is a comparison for like product. This is not a legal or binding document. Consult manufacturer’s catalogs for additional information.

Pemko Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
29326CV-12
29326CV-24	24",
29326CV-36	36",
29326CV-48	48",
29326CV-72	72",
29326DV-12
29326DV-24	24",
29326DV-36	36",
29326DV-48	48",
29326DV-72	72",
29326CNB-12
29326CNB-24	24",
29326CNB-36	36",
2932610BE-NB-12	Satin Bronze Powder Coat
29326CNB-48	48",
