Pemko RAMP5 Bridge Component, 6-1/4" W, 1" Offset

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$119.80

Details: Pemko RAMP5 Bridge Component, 6-1/4" W, 1" Offset

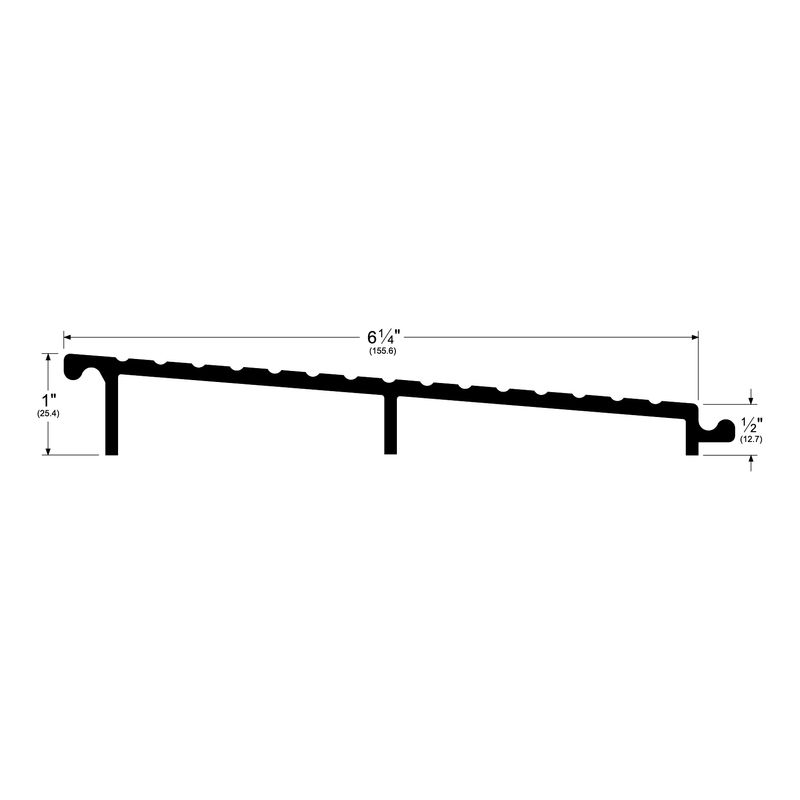

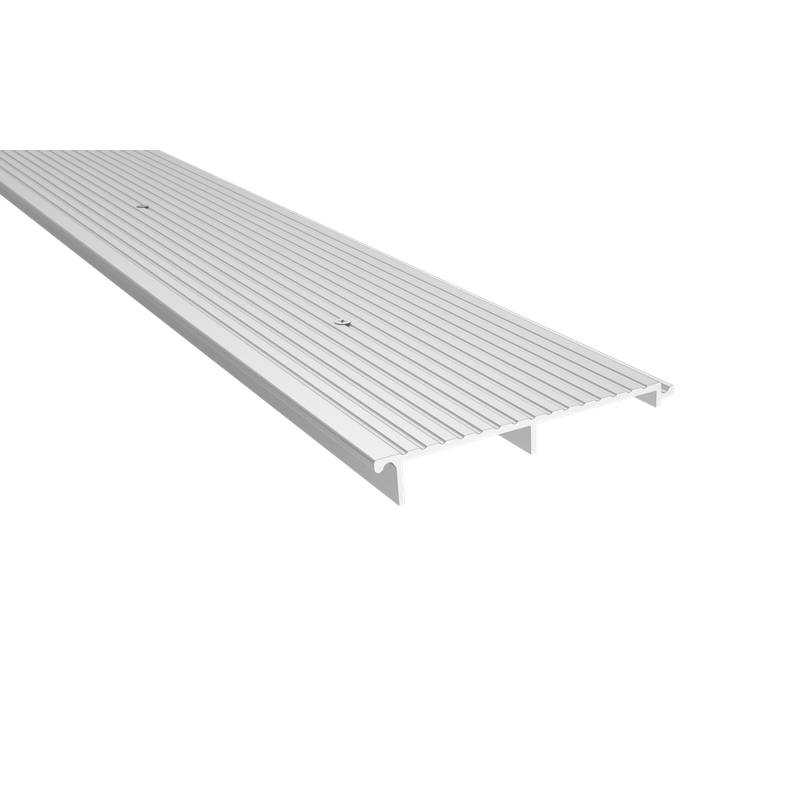

The RAMP5 Bridge Component is a 6-1/4" ramp component designed to reach up to a 1" offset. It is a durable and reliable solution for creating accessible pathways and ensuring smooth transitions for individuals using mobility devices. It's BHMA certified, ADA compliant, and UL 10C fire rated.

Features

  • Used with other components to reach 1" flush offset
  • Fire rated
  • PemKote highly recommended, especially exterior conditions where moisture may be present
  • Allows for creating configurations without cost of custom extrusions
  • Eliminates need to weld joints
  • Conforms to uneven surfaces
  • Certifications:- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, Americans with Disabilities Act (ADA) Compliant, ANSI/BHMA A117.1

Specifications

Base Material
Aluminum
Fasteners
No.10 Stainless Wood Screw
Width
6 1/4"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
