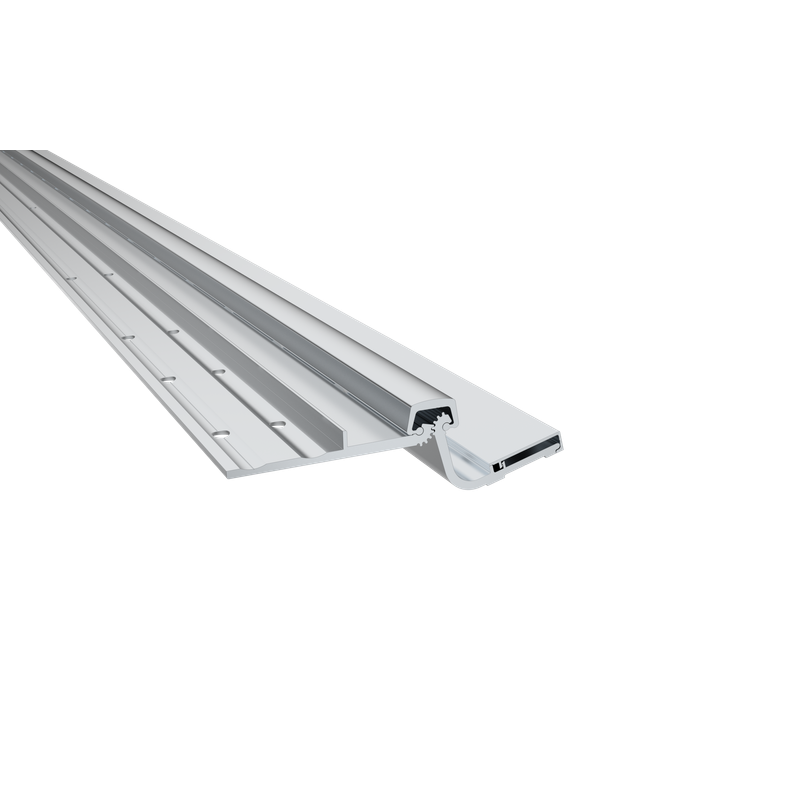

Pemko WT_HS Wide Throw Half Surface Continuous Geared Hinge, Heavy Duty Grade 1 View larger

Pemko

Pemko WT_HS Wide Throw Half Surface Continuous Geared Hinge, Heavy Duty Grade 1

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$505.12

?

Details: Pemko WT_HS Wide Throw Half Surface Continuous Geared Hinge, Heavy Duty Grade 1

The WT_HS Series Wide Throw Half Surface Continuous Geared Hinge is designed mainly for retrofit applications that require extra clearance due to special frame, door, or wall design. This hinge, which is applied to the frame rabbet and exposed door surface, combines the versatility of a half surface unit and the clearance of a wide throw.

Features

  • Heavy duty
  • For retrofit applications that require extra clearance due to special frame, door, or wall design
  • Applied to the frame rabbet and the exposed door surface
  • Combines the versatility of a Half Surface unit and the clearance of a Wide Throw hinge
  • For use on swinging type fire doors
  • For hollow metal, tin-clad, sheet metal and steel covered composite type doors
  • Guaranteed for the life of the opening against defects in material or workmanship
  • Certifications:- Health Product Declaration (HPD), UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, ANSI/BHMA Standard A156.26

Specifications

Bearing Spacing
3"
Grade
Grade 1
Hinge Material
Aluminum
Hinge Mounting Type
Half Surface
Hinge Strength
Heavy Weight
Handing
Non-handed
Fastener
Teks, Thru Bolts
Fastener Type
Self Drilling
Maximum Door Thickness
2 1/4"
Minimum Door Thickness
1 3/4"
Maximum Door Width
4'
Maximum Hinge Length
10'
Minimum Hinge Length
79"
Maximum Swing
180 degree
Minimum Hinge Clearance
5/32"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
