> >>>>>NGP HD2400 Concealed Continuous Geared Hinge
Reduced price! HD2400A_vert2_path.jpg View larger

National Guard Products

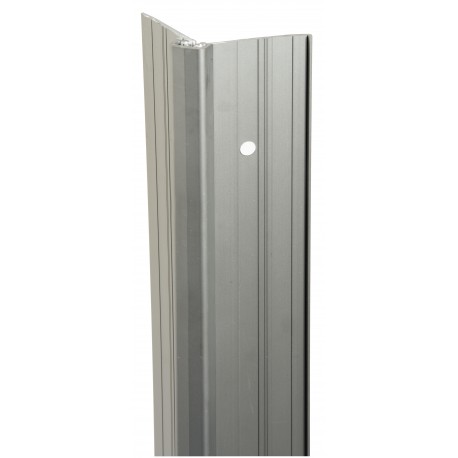

NGP HD2400 Concealed Continuous Geared Hinge

HD2400

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$169.60

20% Off

$212.00

?

Details: NGP HD2400 Concealed Continuous Geared Hinge

Features

  • Aluminum alloy 6063-T6; Anodized after machining
  • Anodized aluminum finish
  • Specially designed involute intermeshing gears
  • Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
  • Proprietary teflon infused self-lubricating wear resistant bearings
  • No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
  • Lifetime of the door opening warranty
  • #12-24 TEK MS
  • "LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
  • Standard lengths: 83", 85", 95", 119"

Options

  • #12 × 1-1/2" wood screws
  • Torx security TEK screws
  • Cut to net length - specify door handing
  • Anti-ligature hospital tip - specify "ALHT" and door handing
  • Dutch door prep - specify door handing, top door leaf length, and clearance between leafs

Standards

  • ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 150 lb. door, Grade 2 - 300 lb. door, Grade 1 - 600 lb. door
  • Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" × 8'0" and steel stiffened doors up to 4'0" × 7'2".

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKUAttributes
HD2400A-83 83"
HD2400A-95 95"
HD2400A-85 85"
HD2400A-119 119"
