  6. Rixson 117-20 3/4" Offset x 20 Min Pivot Set, Includes 180 - 20 Top Pivot

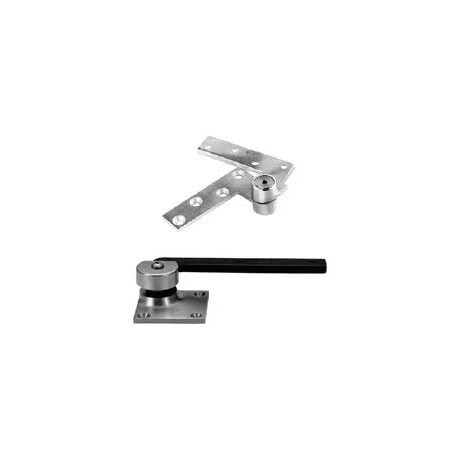

Reduced price! Rixson 117-20 3/4 Offset x 20 Min (Includes 180 - 20 Top Pivot) View larger

Rixson

Rixson 117-20 3/4" Offset x 20 Min Pivot Set, Includes 180 - 20 Top Pivot

117-20

Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$492.91

40% Off

$821.51

?

Details: Rixson 117-20 3/4" Offset x 20 Min Pivot Set, Includes 180 - 20 Top Pivot

The 117-20 is an offset-hung, light-duty pivot set with 20-minute label designed for interior doors weighing up to 300lbs.

Features

  • Weight up to 300lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
  • Door width up to 3'6" (1067mm)
  • Handed
  • 180 - 20 top pivot included
  • 3/4" (19mm) offset (measured from centerline of pivot to face of door)
  • Door edges must be beveled 1/8" in 2
  • Bottom pivot mortised into floor
  • Non-ferrous base material
  • Doors will swing 180°, trim permitting
  • Doors up to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
  • Furnished with wood and machine screws
  • Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Catalog

Available Model Numbers and Combinations

Model/SKUAttributes
117-20-626RH Right Hand,
117-20-605LHEXT SPDL Left Hand,
117-20-626LH Left Hand,
117-20-605RH Right Hand,
117-20-605LH Left Hand,
117-20-606RH Right Hand,
117-20-605LHTORX Left Hand,
117-20-613LHTORX Left Hand,
117-20-606LH Left Hand,
117-20-611RH Right Hand,
117-20-611LH Left Hand,
117-20-612RH Right Hand,
117-20-612LH Left Hand,
117-20-613RH Right Hand,
117-20-613LH Left Hand,

View All Model Numbers and Options
