  6. Rixson 680 3/4" Offset-Hung Top Pivot Set
Reduced price! Rixson 680 3/4 Offset View larger

Rixson

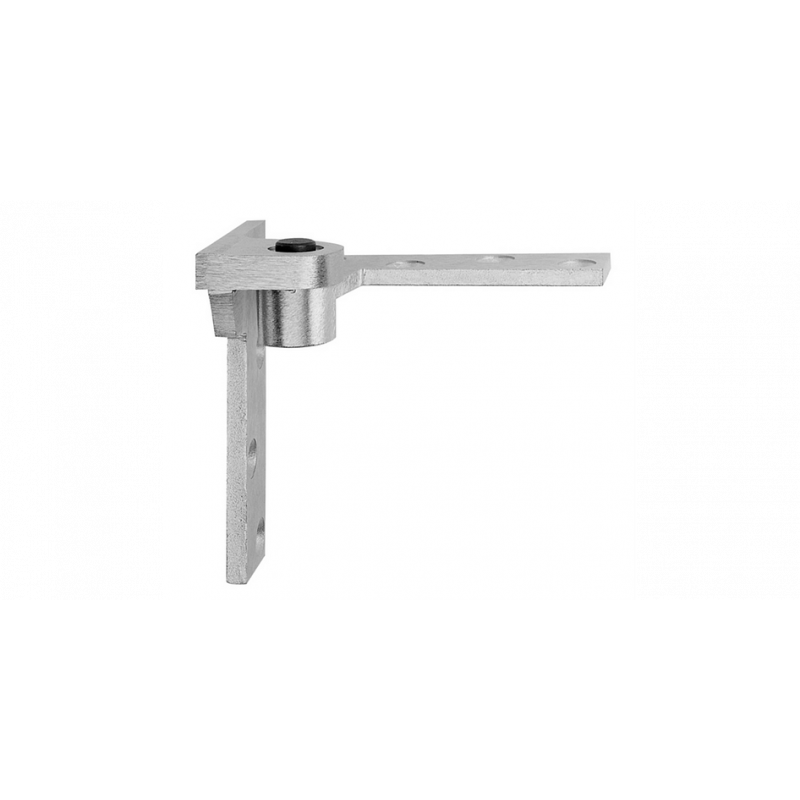

Rixson 680 3/4" Offset-Hung Top Pivot Set

680

Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$415.61

40% Off

$692.69

?

Details: Rixson 680 3/4" Offset-Hung Top Pivot Set

The 680 top pivot is used where no frame exists above the door or where it is not possible to anchor the pivot into the frame header.

Features

  • Side jamb mounted
  • Frame portion
  • Handed
  • Used where no frame exists above door or where it is not possible to anchor pivot into header of frame
  • Side jamb portion can be surface mounted or mortised
  • Non-ferrous base material
  • 3/4" (19mm) offset (measured from centerline of pivot to face of door)
  • Door edges must be beveled in 1/8" in 2"
  • Furnished with wood and machine screws

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
680-629RHTORX Right Hand,
680-629LH Left Hand,
680-612LHEXT SPDL Left Hand,
680-612LHTORX Left Hand,
680-613RHEXT SPDL Right Hand,
680-629LHEXT SPDL Left Hand,
680-629LHTORX Left Hand,
680-613RHTORX Right Hand,
680-630RH Right Hand,
680-630RHEXT SPDL Right Hand,
680-613LHEXT SPDL Left Hand,
680-630RHTORX Right Hand,
680-630LH Left Hand,
680-613LHTORX Left Hand,
680-630LHEXT SPDL Left Hand,

View All Model Numbers and Options
